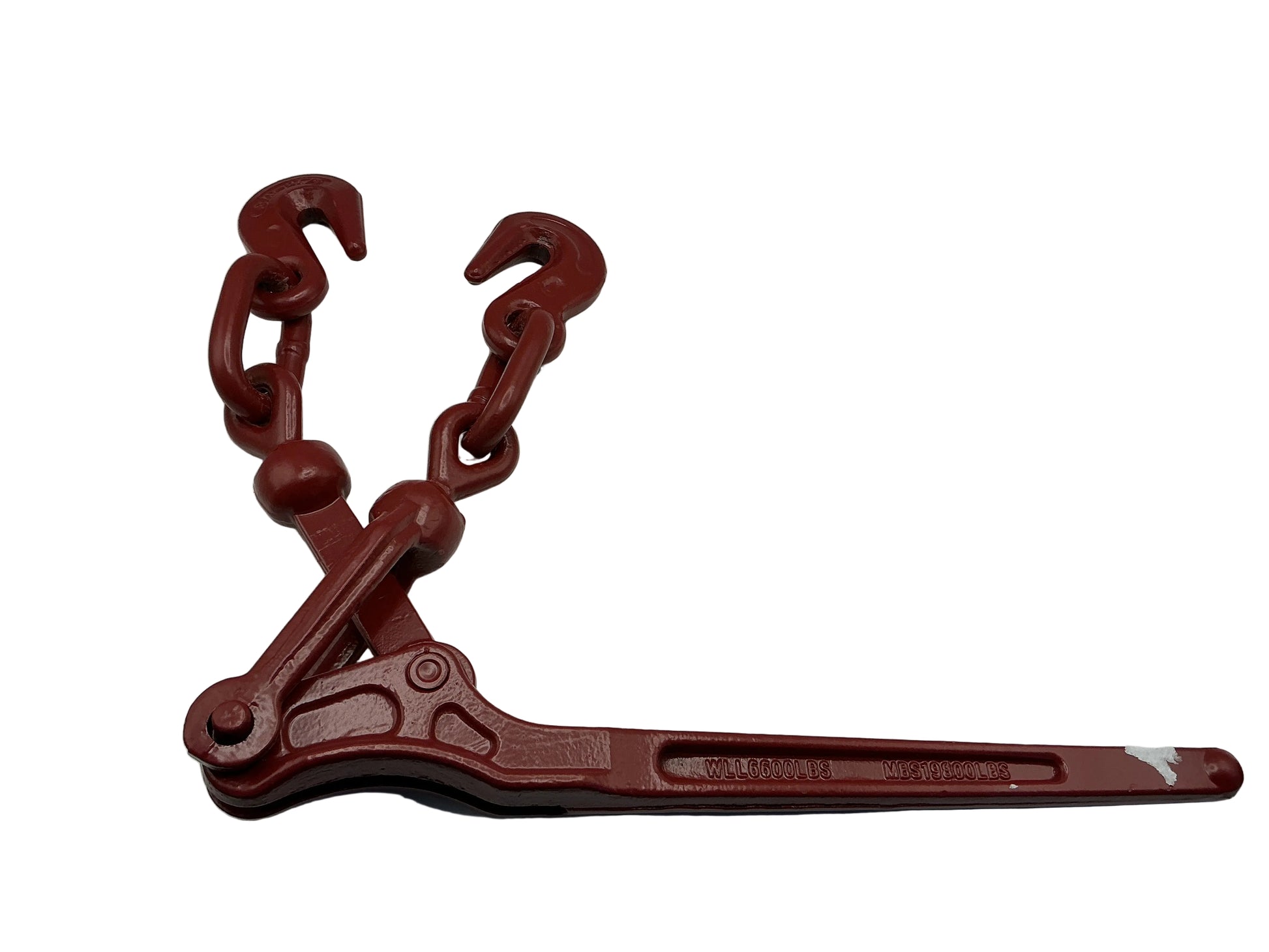

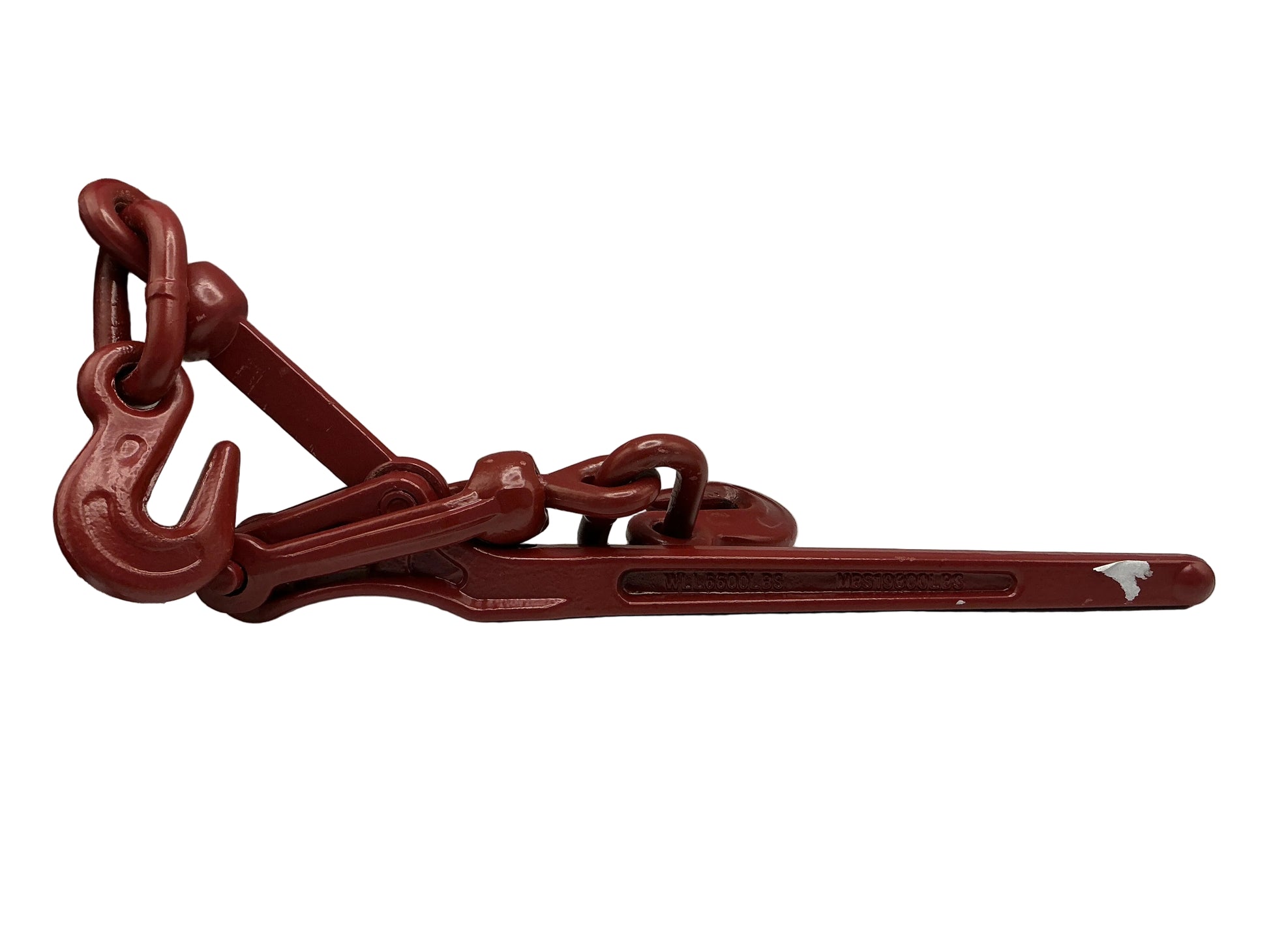

Standard Level Style Chain Binder

A standard lever-style chain binder (also called a snap binder) is a mechanical device used to tighten and secure chains when fastening loads—commonly in trucking, logging, and heavy equipment transport.

🔧 How it works

The binder uses a lever action to apply tension to a chain:

1. Attachment

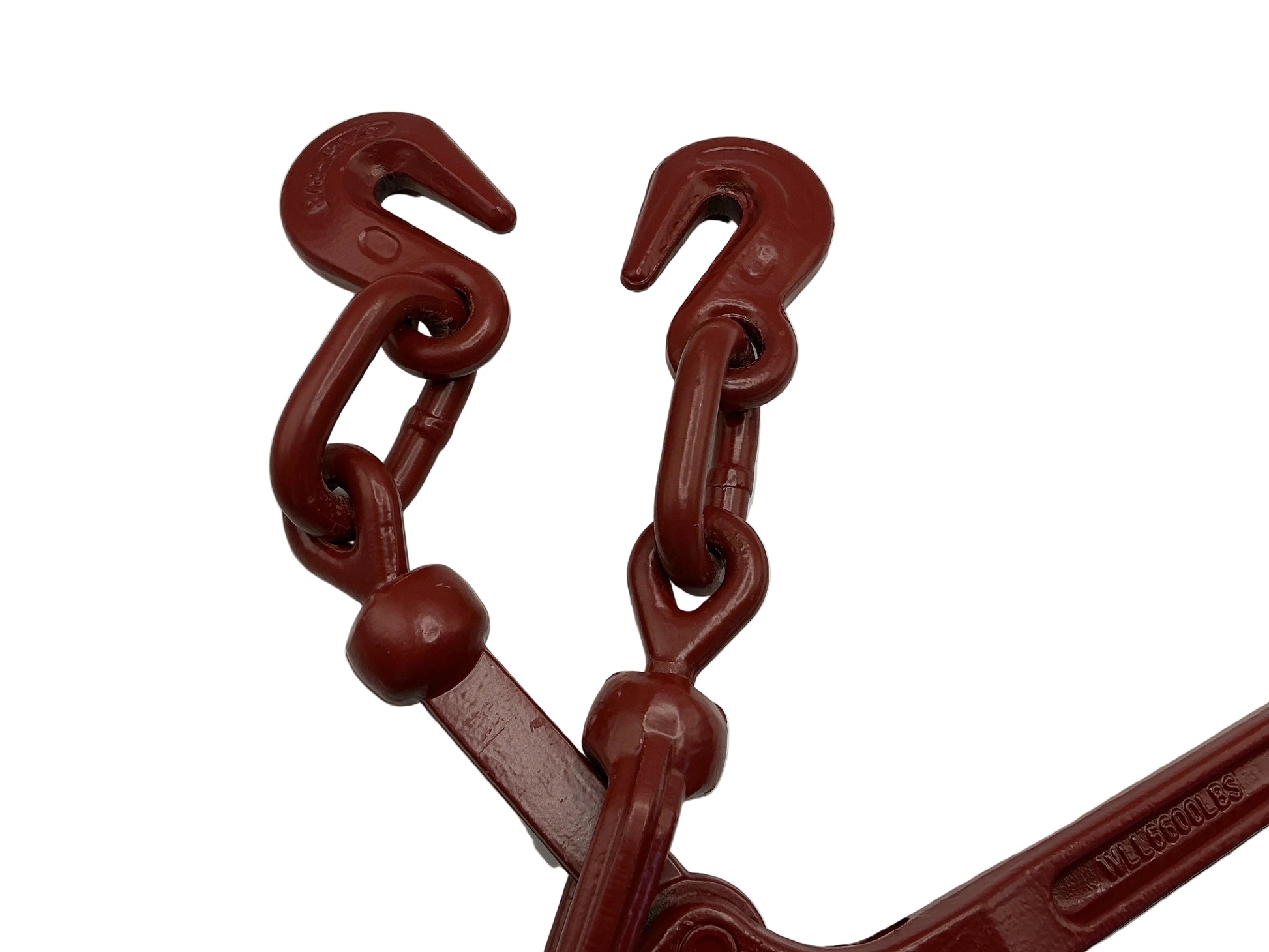

   Each end of the binder has hooks that connect to a chain wrapped around a load.
2. Lever mechanism
   The long handle (lever) is pulled into position. As it rotates, it shortens the effective length between the hooks.
3. Tensioning
   This shortening action pulls the chain tight, creating strong tension that secures the load firmly in place.
4. Locking position
   Once the handle is fully closed, it stays in place due to mechanical force and friction, holding the chain under tension.

⚙️ Key characteristics

• Simple design: No gears or threads—just pivoting joints and leverage
• Fast operation: Tightens quickly with a single motion
• High tension force: Can generate significant clamping force with minimal effort
• Compact and durable: Built from forged steel for heavy-duty use

Measurements

1Ft 4" x  1Ft 1" x  2"
