Spindle Nut, 7/8-14

A spindle nut, 7/8-14 is a threaded fastener designed to secure components onto a rotating shaft (spindle). Here’s a clear breakdown of what that means and what it does:

1. Size and Thread Meaning

• 7/8: Refers to the nominal diameter of the spindle (7/8 inch).
• 14: Indicates 14 threads per inch (TPI).
• This is typically a fine-thread (UNF) configuration, which allows for tighter, more precise fastening compared to coarse threads.

2. Function
The primary role of a spindle nut is to:

• Hold components firmly in place on a spindle or shaft
• Maintain proper preload or tension, especially in rotating assemblies
• Prevent loosening during operation, often used with locking features (like cotter pins, lock washers, or staking)

3. Common Applications

• Automotive hubs (wheel bearings on older vehicles or trailers)
• Machinery spindles (lathes, milling machines)
• Axles and rotating equipment where precise alignment and secure retention are critical

4. Design Features

• Usually made from hardened steel for strength and wear resistance
• May include:

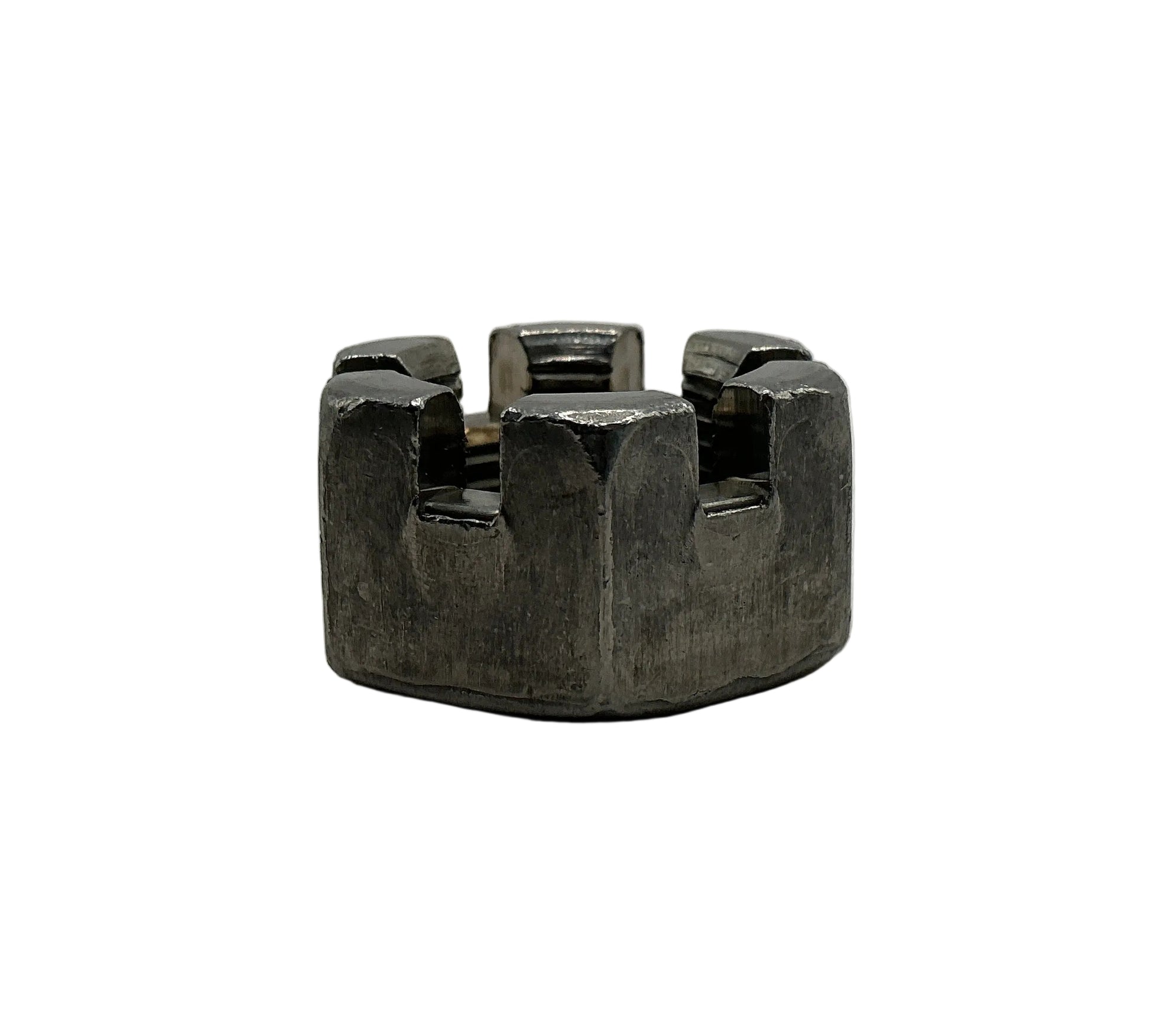

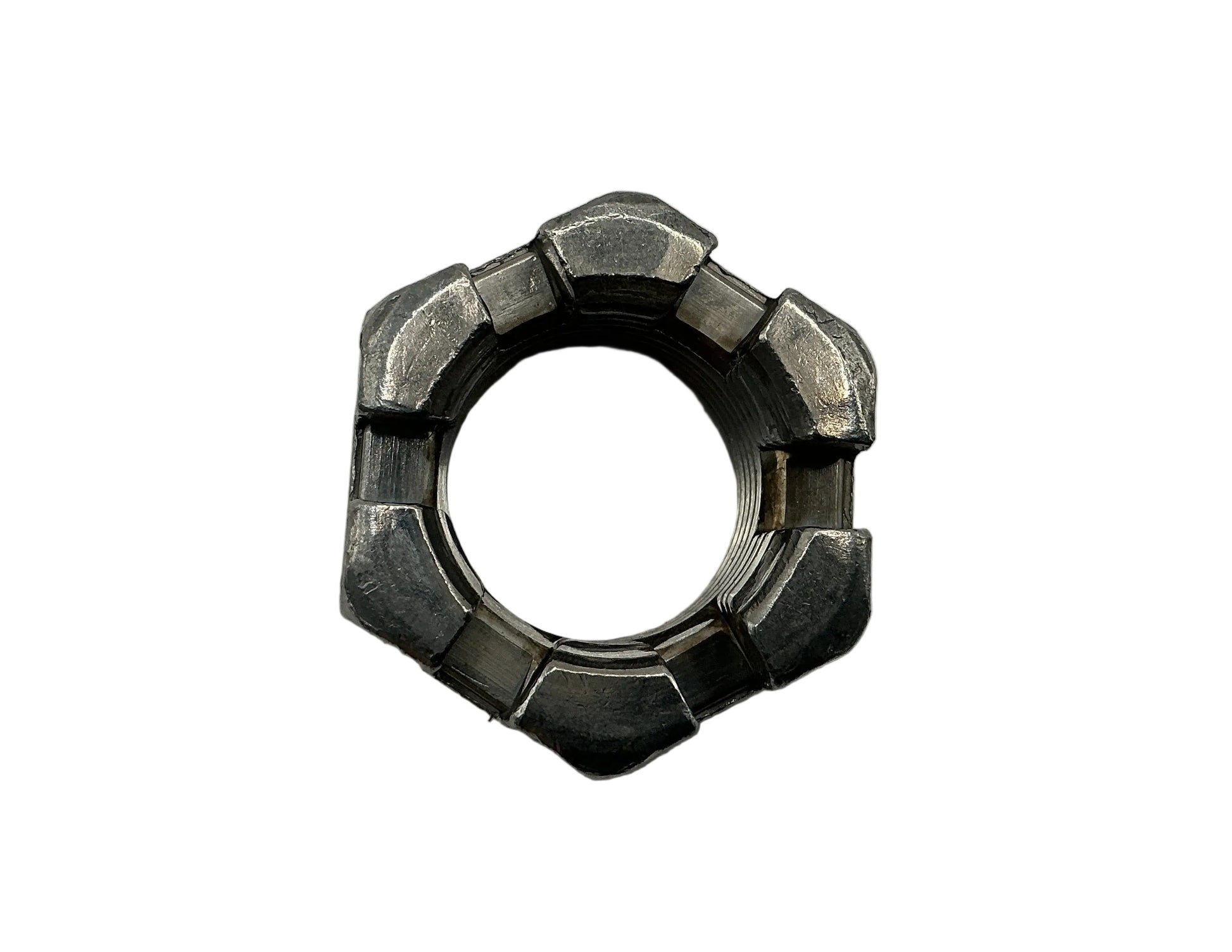

  • Slots or castellations for cotter pin locking

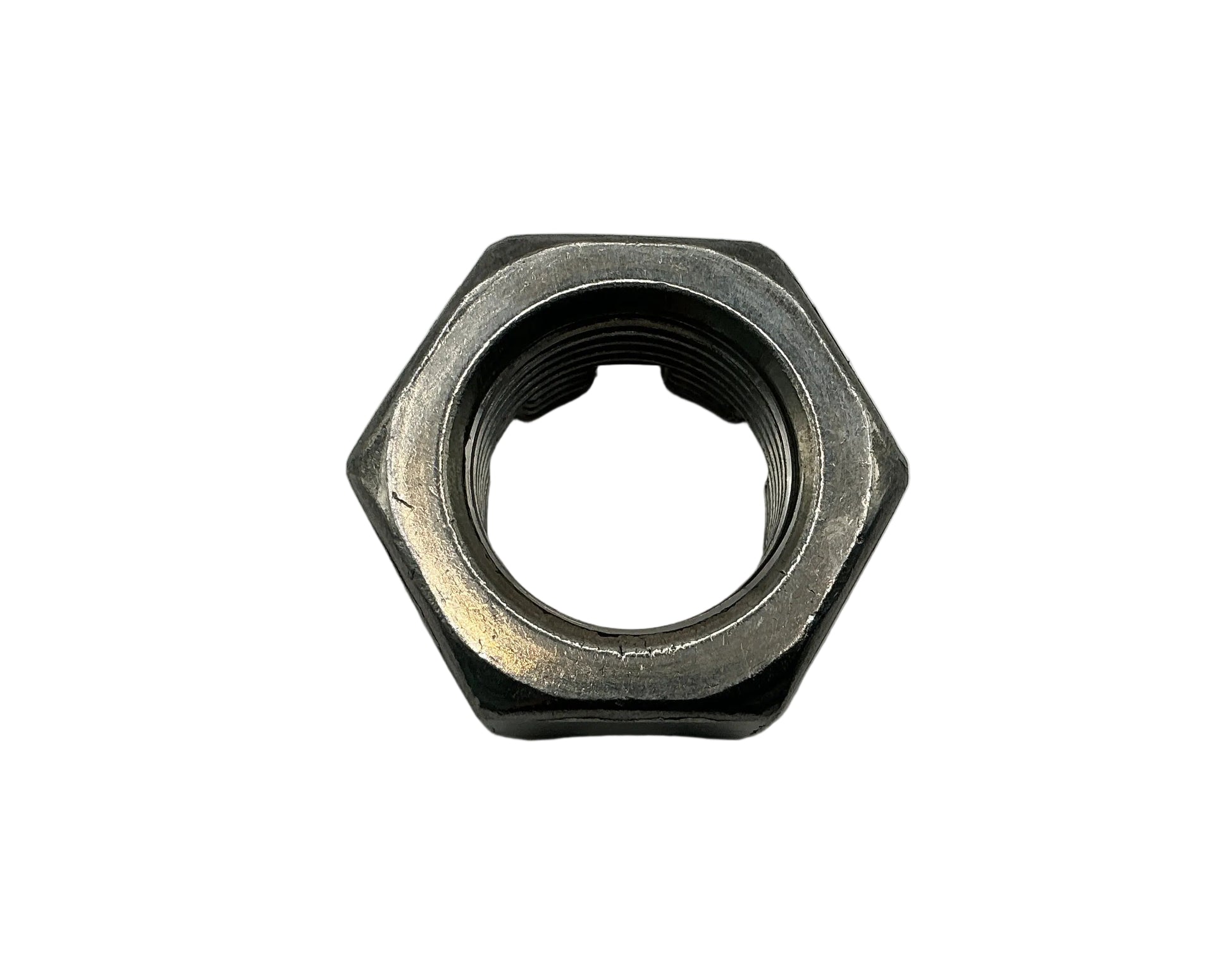

  • Hex shape for wrench tightening
  • Flanged or round styles depending on the application

5. Why Fine Threads (7/8-14)?

• Provide better load distribution
• Allow for more precise adjustments (important in bearing preload)
• Less likely to loosen under vibration compared to coarse threads
