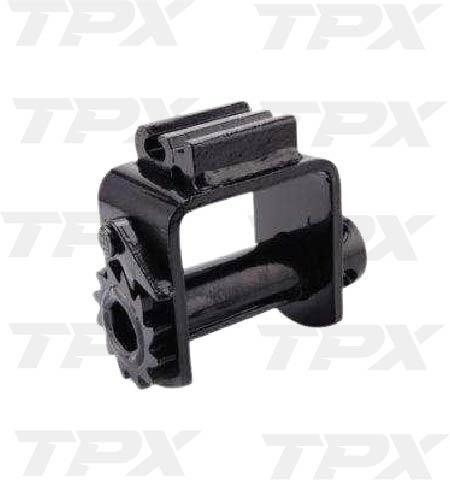

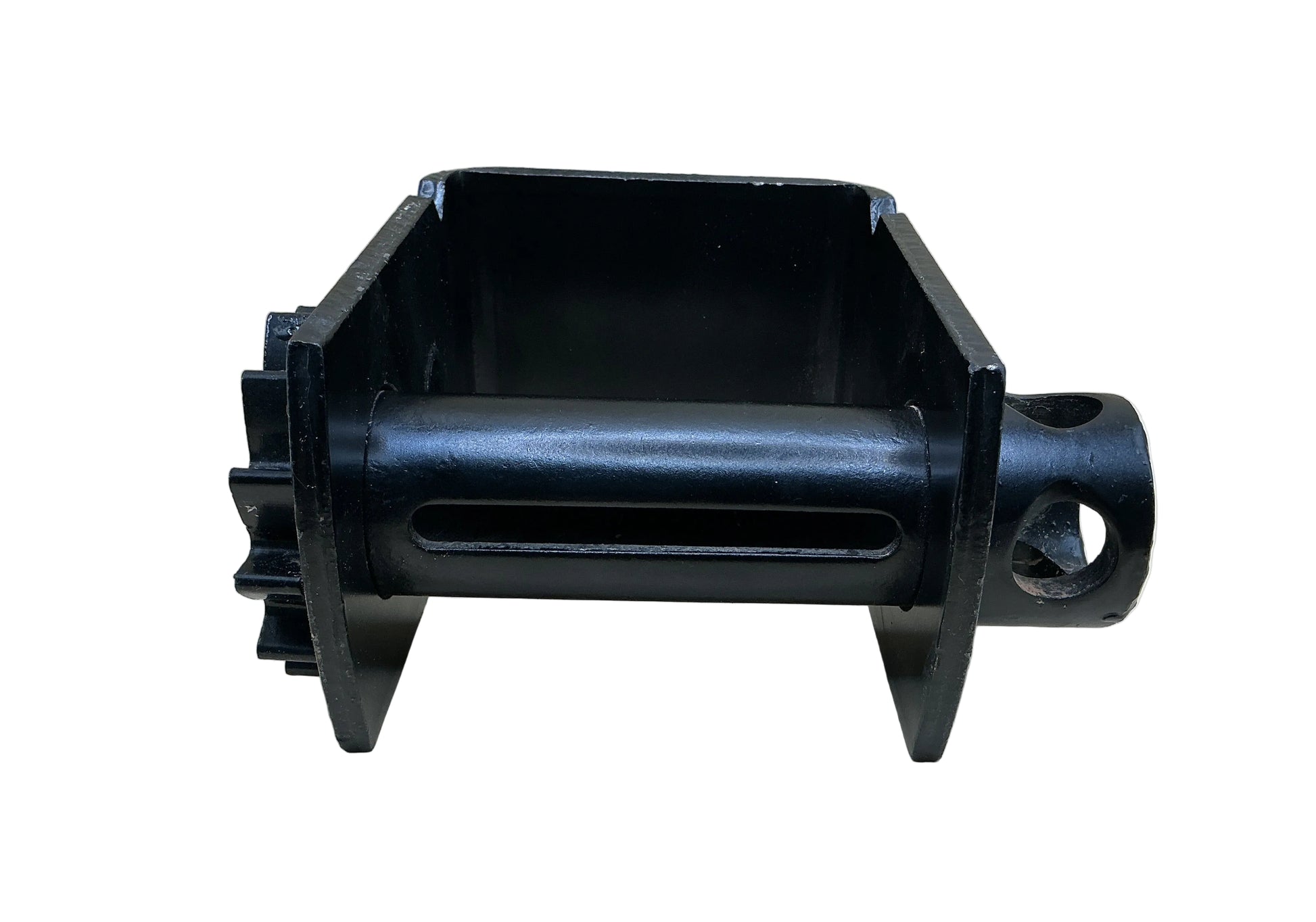

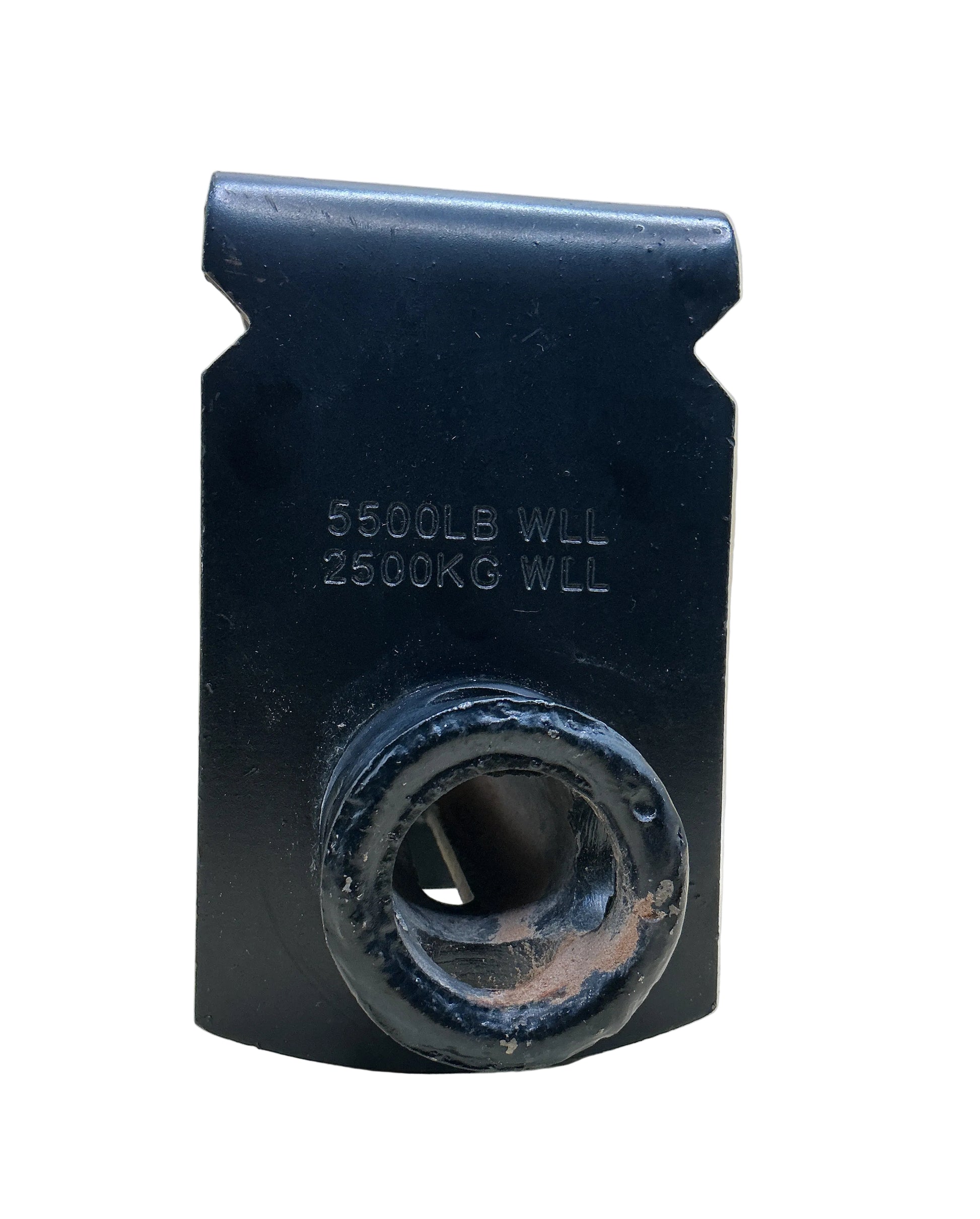

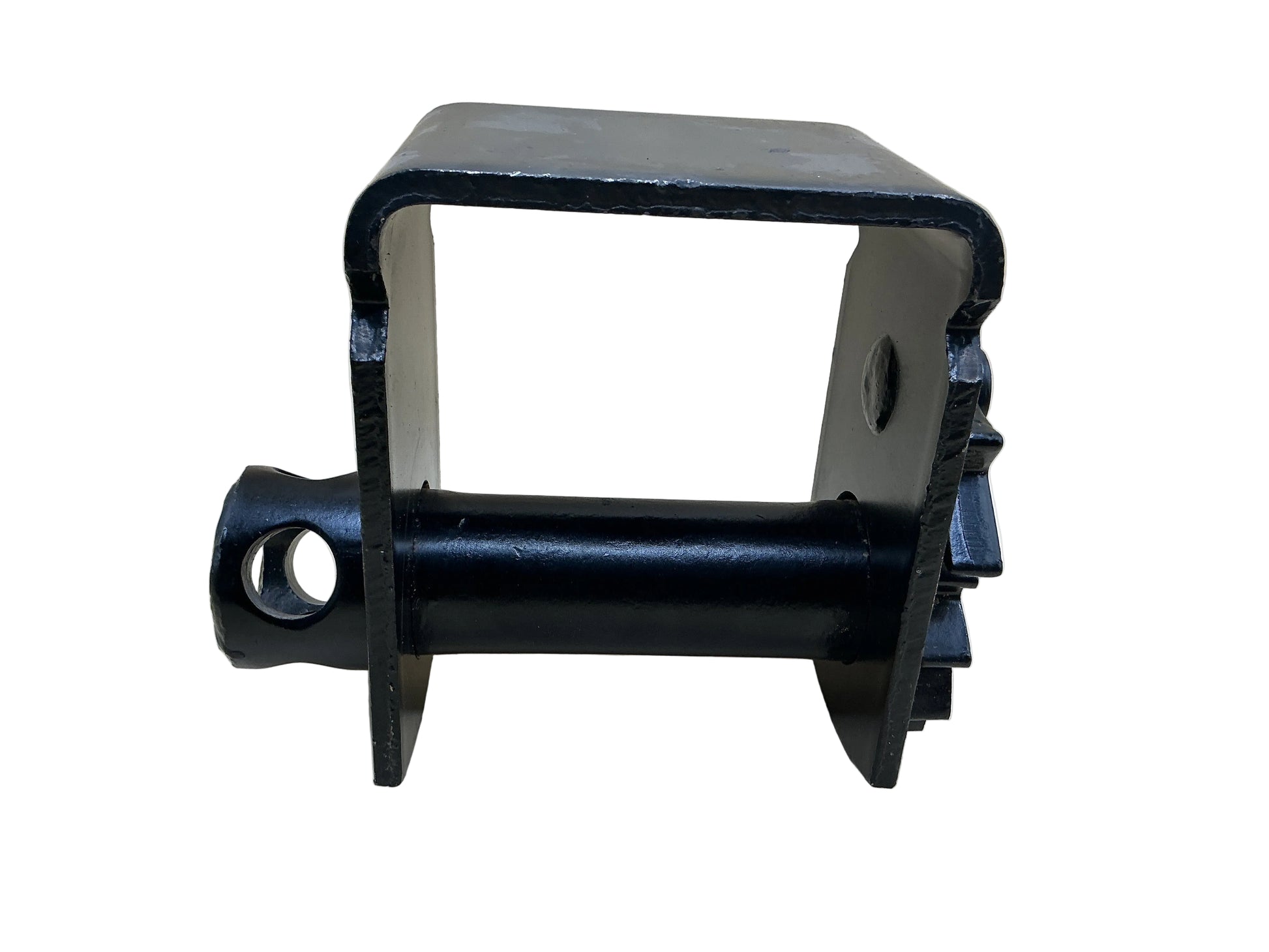

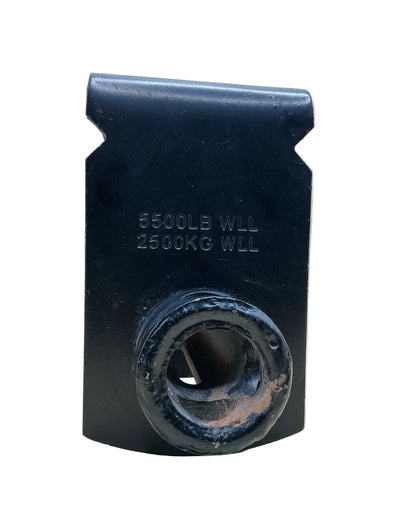

Rail Winch Ratchet

Functions of a Rail Winch Ratchet

1. Prevents Reverse Movement
   • The ratchet engages with a toothed wheel attached to the winch drum.
   • It allows rotation in the winding direction but blocks rotation in the opposite direction, preventing the load from slipping back.
2. Provides Load Holding
   • Maintains tension on cables, ropes, or chains without requiring continuous operator input.
   • Acts as a mechanical lock to secure the load when the winch is stopped.
3. Enhances Safety
   • Reduces the risk of uncontrolled load release caused by brake failure or loss of power.
   • Protects personnel, equipment, and materials from sudden load movement.
4. Supports Controlled Operation
   • Allows operators to advance the load incrementally while ensuring it remains secure between movements.
   • Useful in applications requiring precise positioning.
5. Works as a Backup Restraint
   • Complements the primary braking system by providing an additional layer of mechanical security.

Basic Operating Principle

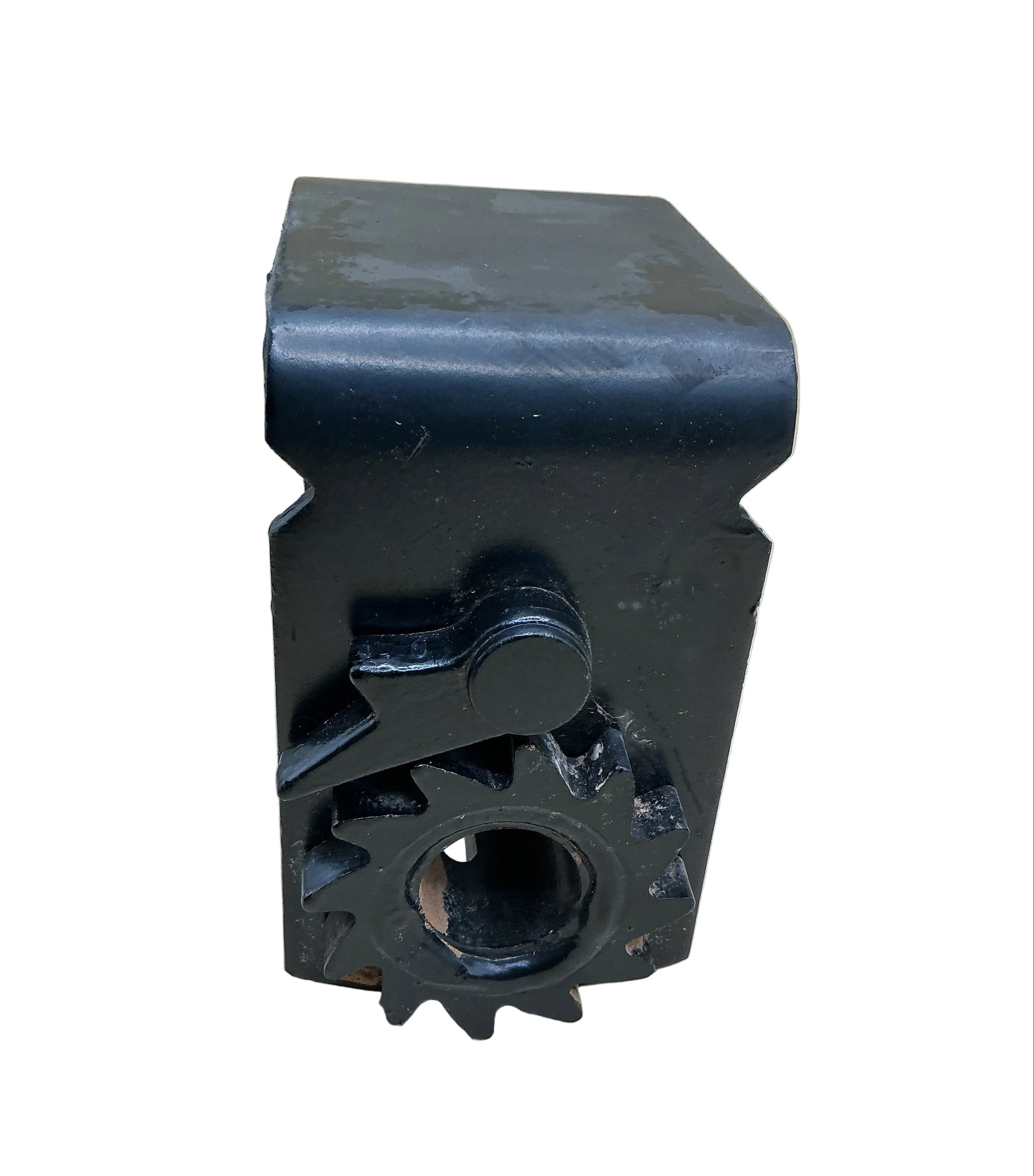

• A pawl (locking lever) engages the teeth of a ratchet wheel.
• During forward winching, the pawl rides over the teeth, producing the characteristic clicking sound.
• If reverse rotation begins, the pawl locks into a tooth, stopping backward movement.

Typical Applications

• Railcar movement systems
• Track maintenance equipment
• Cable pulling operations
• Industrial material handling
• Construction and mining rail-mounted machinery
