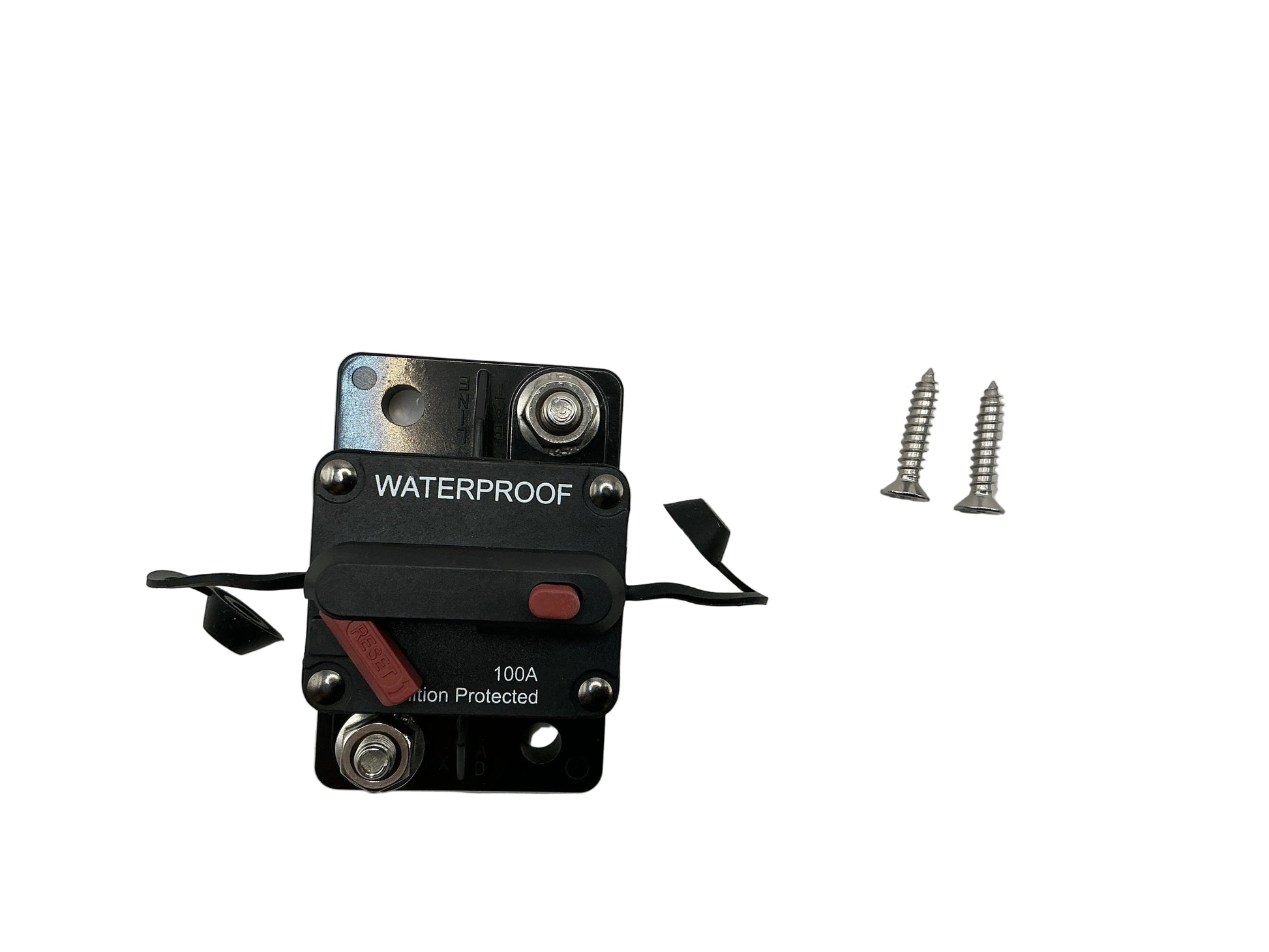

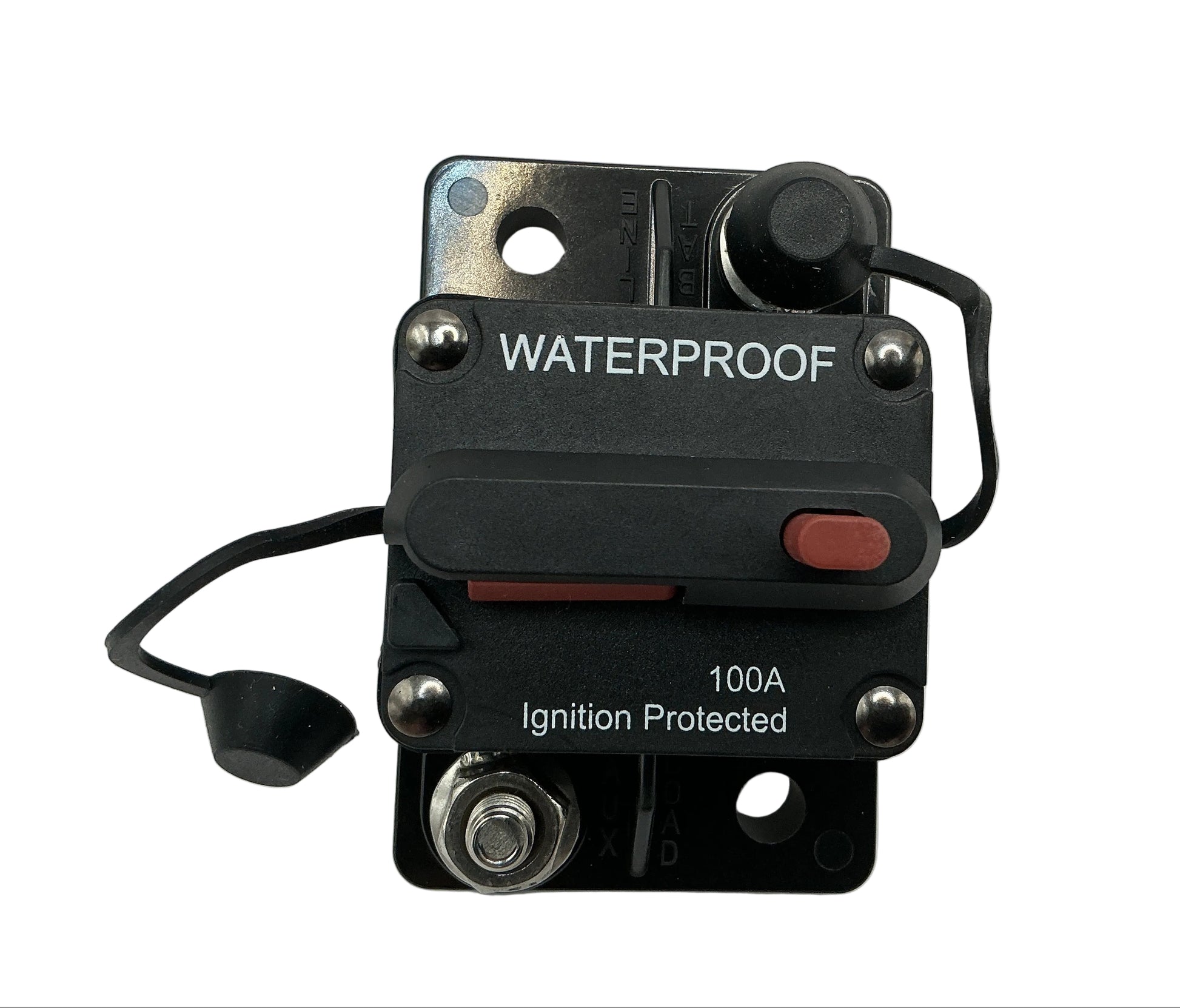

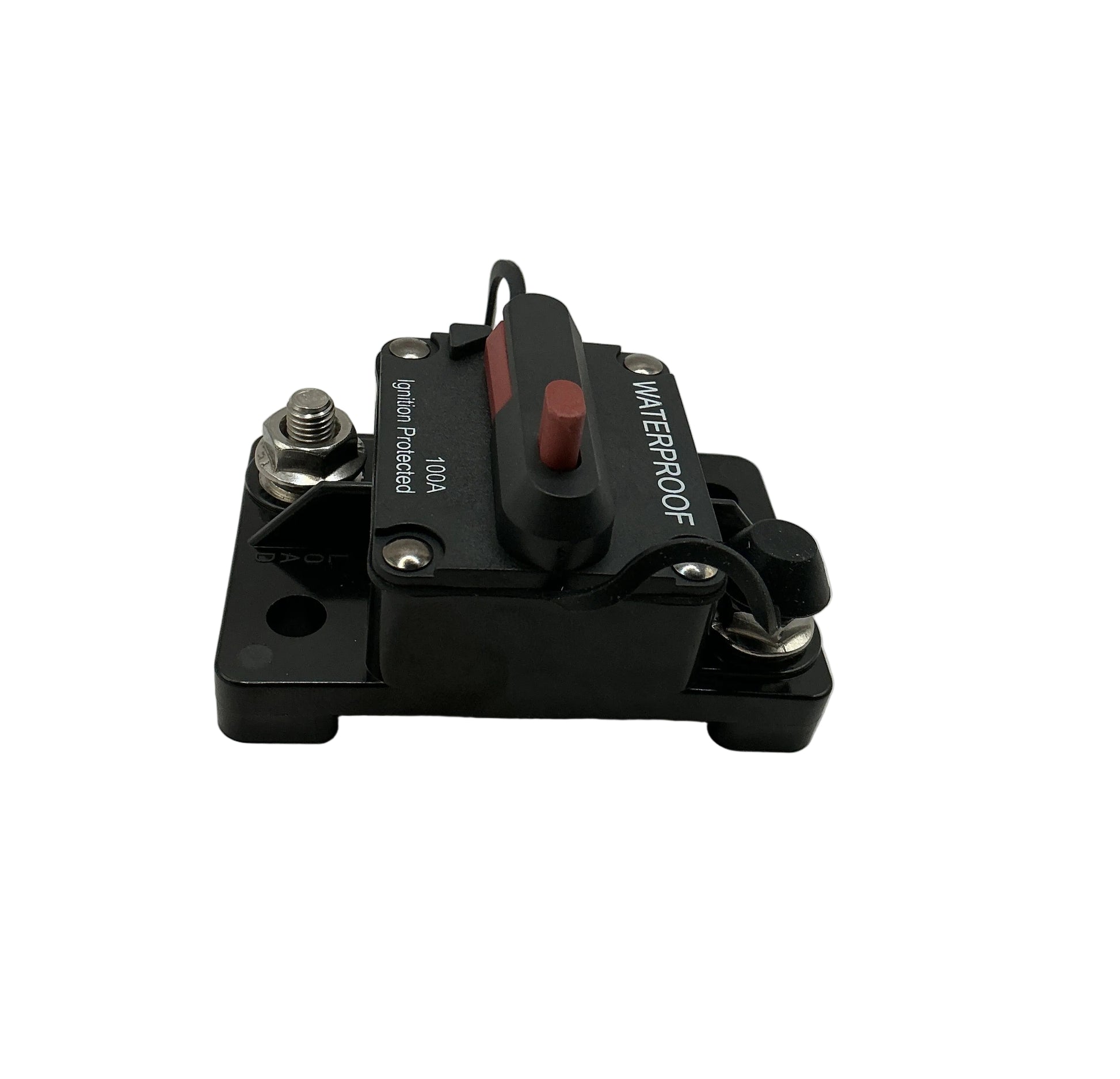

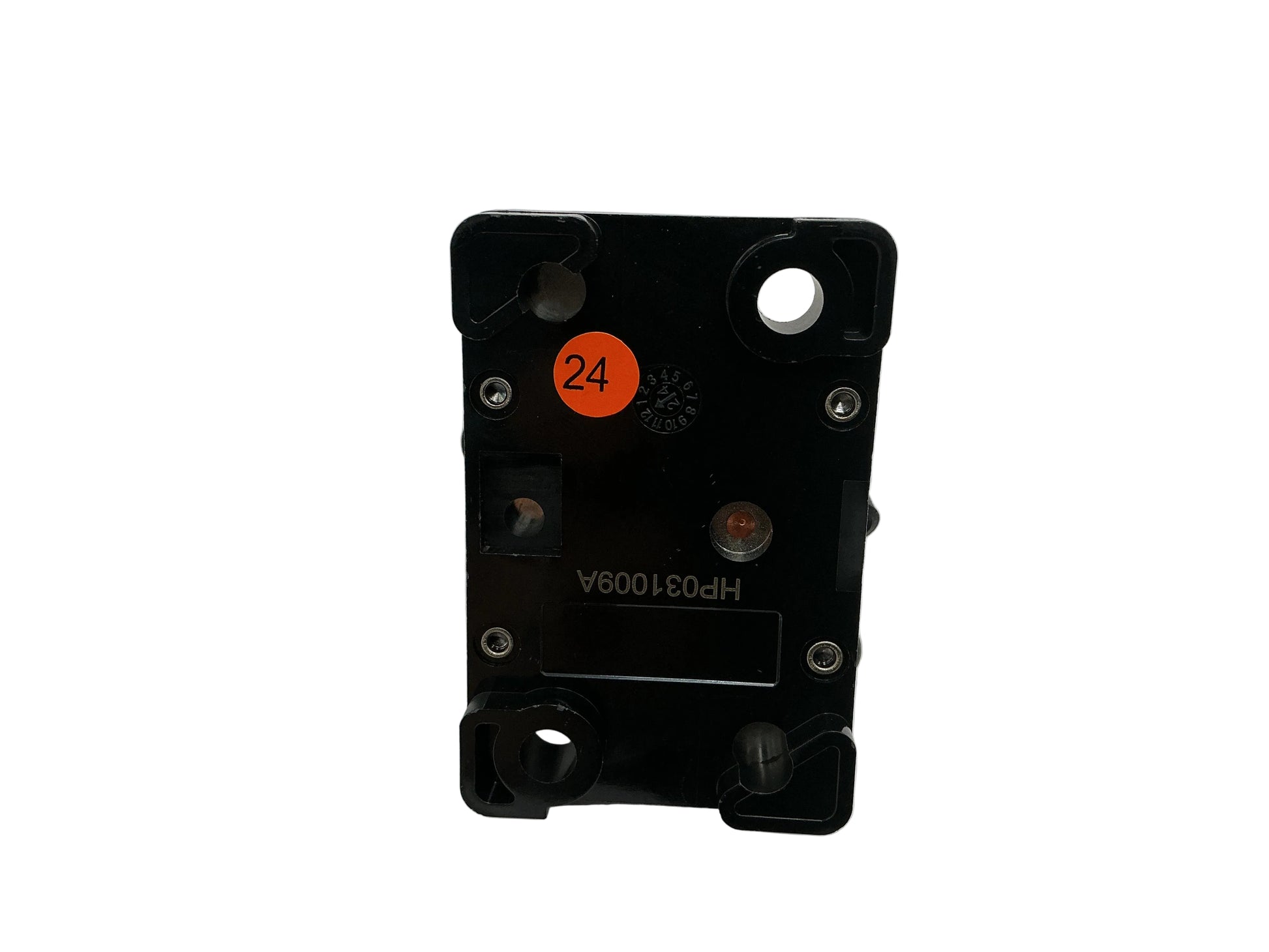

Red Wolf CIRCUIT BREAKER

A Red Wolf circuit breaker typically refers to a branded electrical protection device used to automatically interrupt the flow of electricity when a fault is detected. While “Red Wolf” is a brand (not a unique type of breaker), its function is the same as standard circuit breakers used in residential, commercial, or industrial systems.

🔧 Core Function

A circuit breaker like a Red Wolf unit is designed to:

• Protect electrical circuits from damage caused by overloads or short circuits
• Interrupt current flow when it exceeds safe limits
• Prevent fires, equipment damage, and electrical hazards

⚙️ How It Works

1. Normal Operation
   Electricity flows through the breaker uninterrupted while current stays within safe levels.
2. Overload Condition
   If too many devices draw power, the current increases. The breaker detects this (usually via a thermal mechanism) and trips after a short delay.
3. Short Circuit or Fault
   If a sudden surge occurs (like a direct short), a magnetic mechanism reacts instantly and trips the breaker.
4. Tripping Mechanism
   When triggered, the breaker opens its internal contacts, stopping the electrical flow.
5. Resetting
   After fixing the issue, the breaker can be manually reset to restore power.

🧠 Key Components

• Thermal element (for overload protection)
• Magnetic element (for short-circuit protection)
• Switch mechanism (to open/close the circuit)
• Arc extinguisher (to safely dissipate sparks when tripping)

⚡ Why It Matters

A Red Wolf circuit breaker ensures:

• Safe operation of wiring and appliances
• Reduced risk of electrical fires
• Easy restoration of power compared to fuses (which must be replaced)
