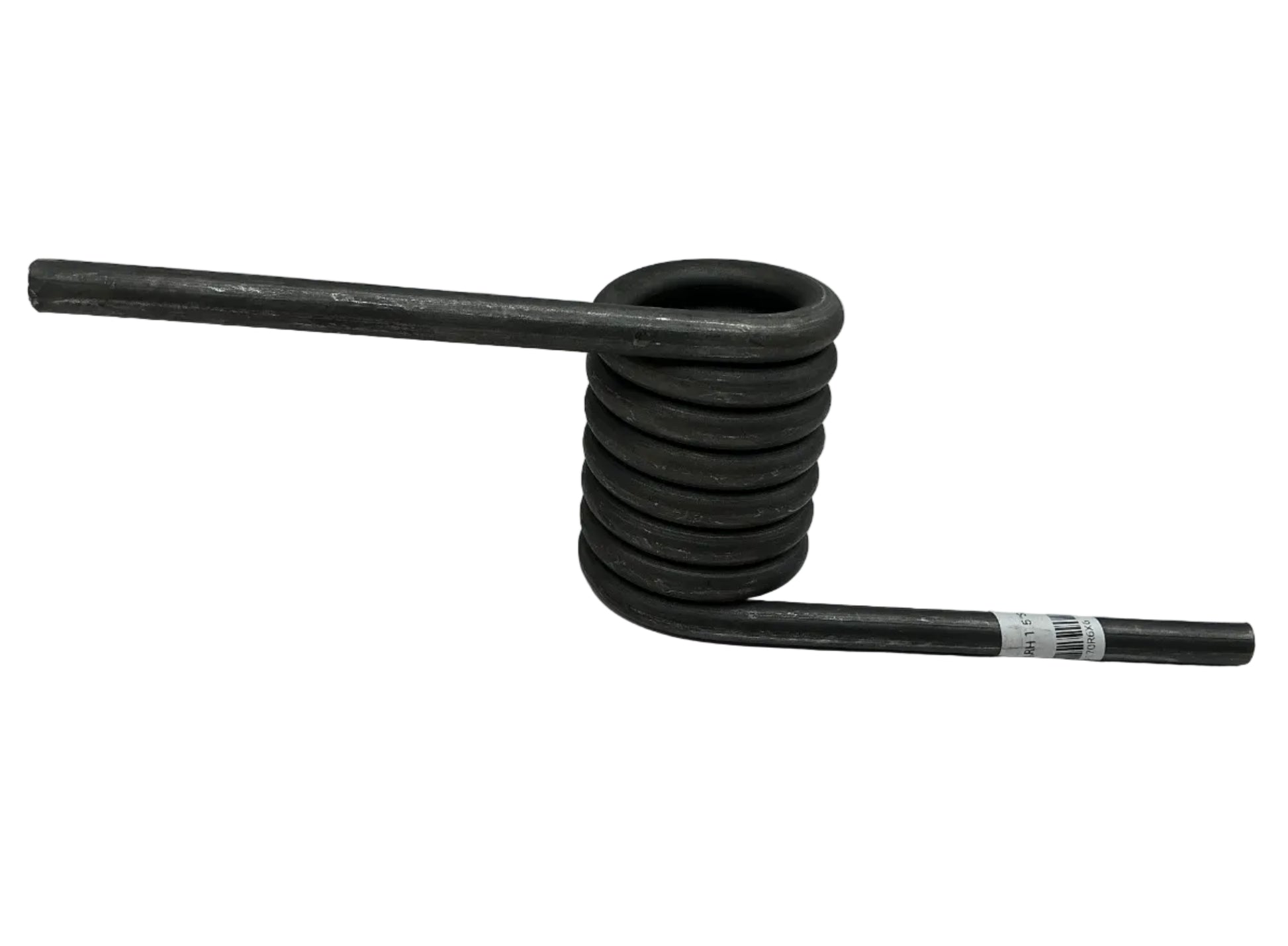

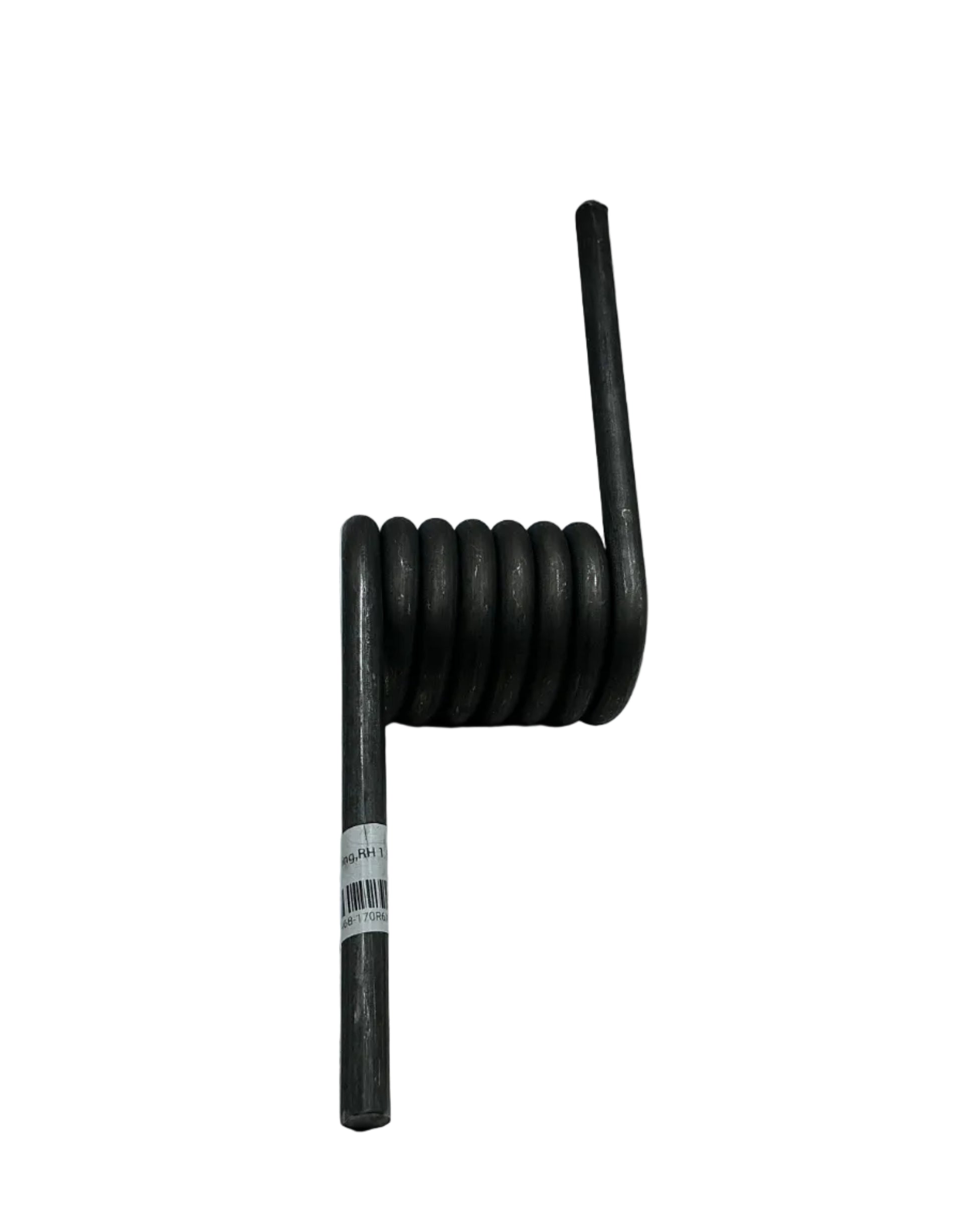

Ramp Spring,RH 1.5"SHAFT

A Ramp Spring, RH 1.5" Shaft is a mechanical component commonly used in machinery that involves controlled rotational movement—especially in systems like garage doors, conveyors, agricultural equipment, or industrial assemblies. Let’s break down what it is and what it does:

🔧 What it is

• Ramp Spring: A spring designed to apply progressive tension or torque as a part rotates or moves along a ramped surface.
• RH (Right-Hand): Indicates the direction of the coil—it is wound in a right-hand (clockwise) orientation.
• 1.5" Shaft: The spring is designed to fit onto a shaft with a 1.5-inch diameter.

⚙️ Function

The main function of a ramp spring is to:

1. Store and release rotational energy
   As the shaft rotates, the spring tightens or loosens, storing mechanical energy and releasing it when needed.
2. Assist movement along a ramp or cam system
   It helps provide gradual force buildup, often used where a smooth transition or controlled resistance is needed.
3. Control motion or return position
   It can act as a return mechanism, bringing a component back to its original position after movement.
4. Provide torque resistance
   It resists sudden motion, helping to prevent jerks or mechanical shock.

🔄 Why “Right-Hand” Matters

• A right-hand wound spring tightens when rotated clockwise.
• This determines how it behaves during operation—installing the wrong orientation can cause:
  • Improper tension
  • Reduced efficiency
  • Possible mechanical failure

Measurements

12" x  4"  x  3"
