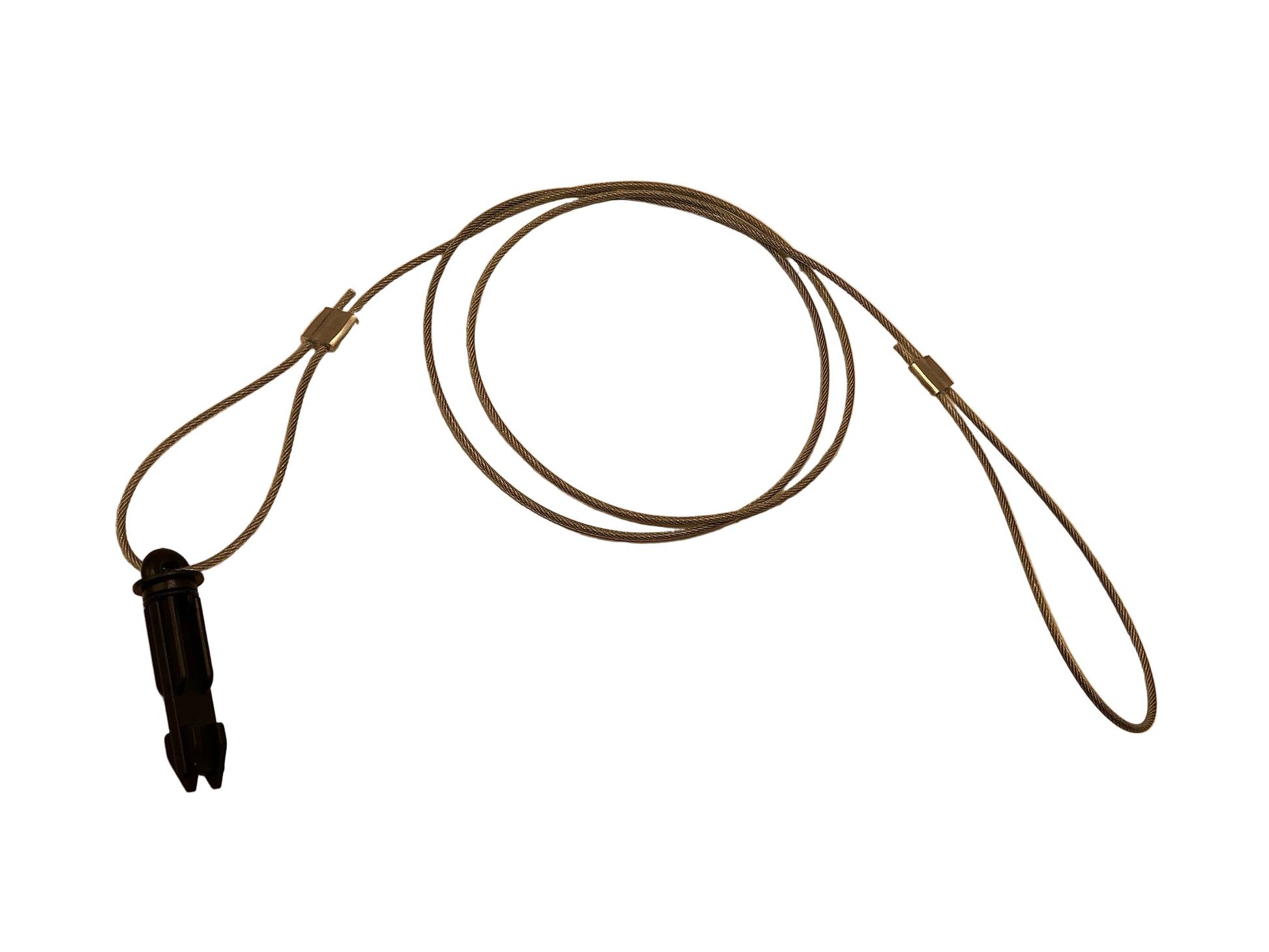

PLUNGER AND CABLE ASSEMBLY (VLED)

🔧 Core Function

The assembly converts a manual input (push or pull motion) into mechanical movement at a distant point, typically to:

• Open or close a valve
• Engage or disengage a mechanism
• Control flow (fluid, air, or hydraulic systems)

“VLED” often refers to a specific application context—commonly something like a Valve Lever Engagement Device (exact meaning can vary by manufacturer/system), but the core principle remains the same.

⚙️ Main Components

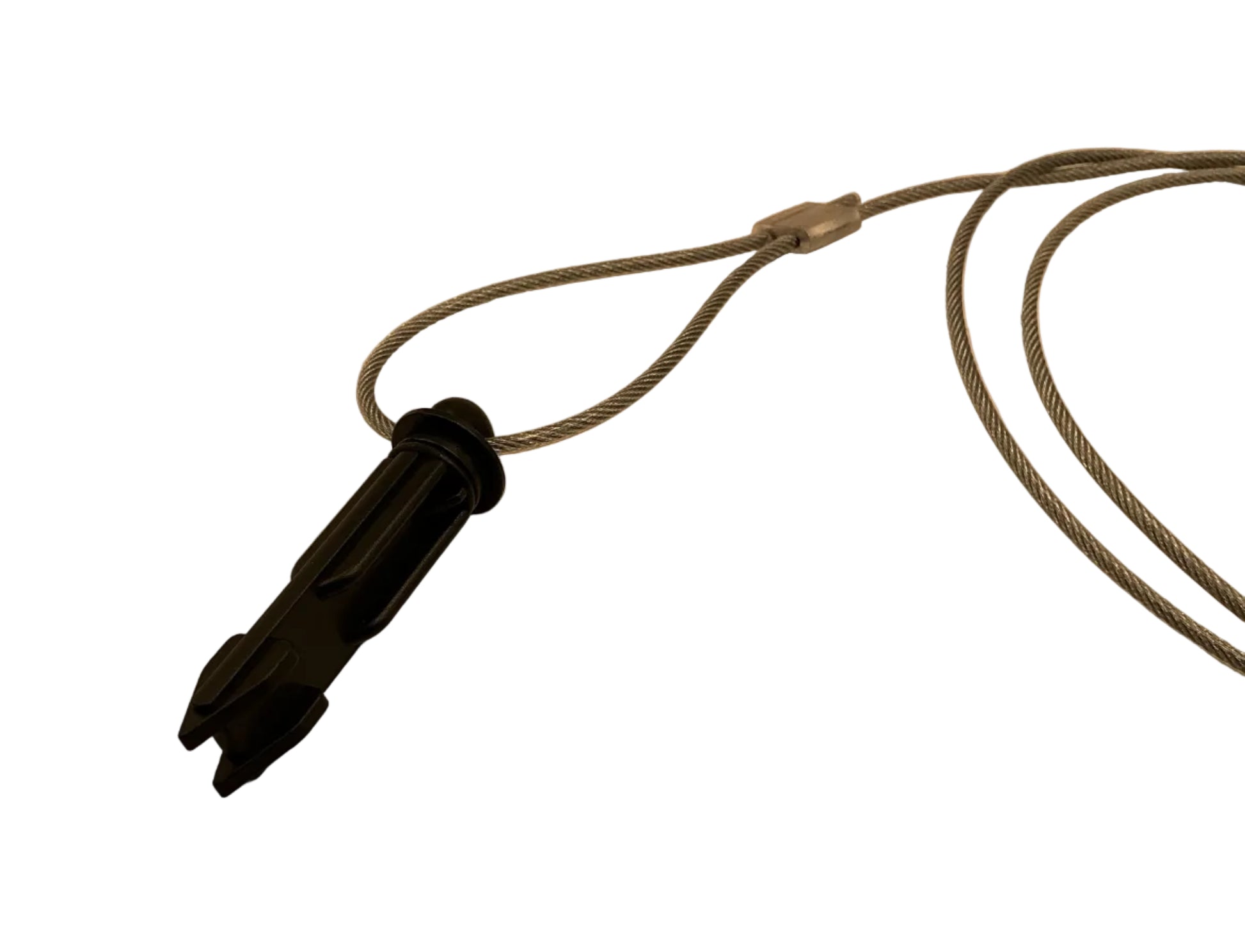

1. Plunger
   • A rod or pin that moves linearly (in and out).
   • When pressed or pulled, it initiates the motion.
   • Often spring-loaded to return to its original position.
2. Cable (Flexible Control Cable)
   • Transfers the plunger’s motion over a distance.
   • Typically a push-pull cable with an inner wire and outer sheath.
   • Allows routing through tight or indirect paths.
3. End Fittings / Connectors
   • Attach the cable to the plunger on one end and the controlled device (e.g., valve) on the other.
4. Return Mechanism (Spring)
   • Ensures the system resets when the force is removed.

🔄 How It Works

1. The operator pushes or pulls the plunger.
2. This motion is transmitted through the inner cable.
3. The cable movement actuates the connected device (e.g., opens/closes a valve).
4. When released, a spring returns the plunger and cable to their original position.

🏭 Typical Applications

• Industrial valve control systems
• Automotive controls (e.g., throttle or choke cables)
• Aerospace or heavy equipment control linkages
• Remote shut-off or safety systems

✔️ Key Advantages

• Enables remote operation without direct access
• Flexible routing around obstacles
• Simple, reliable mechanical design
• No need for electrical power
