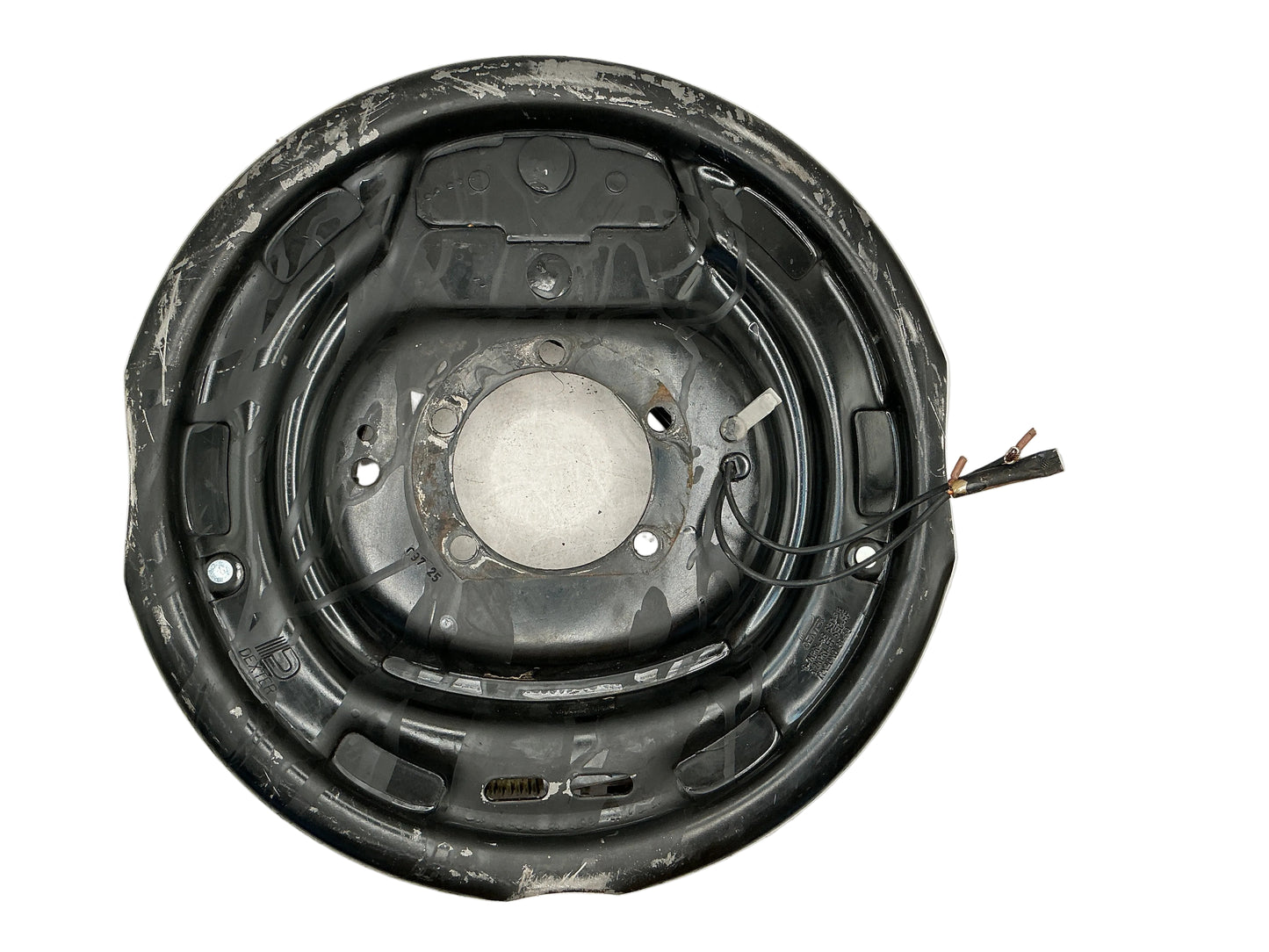

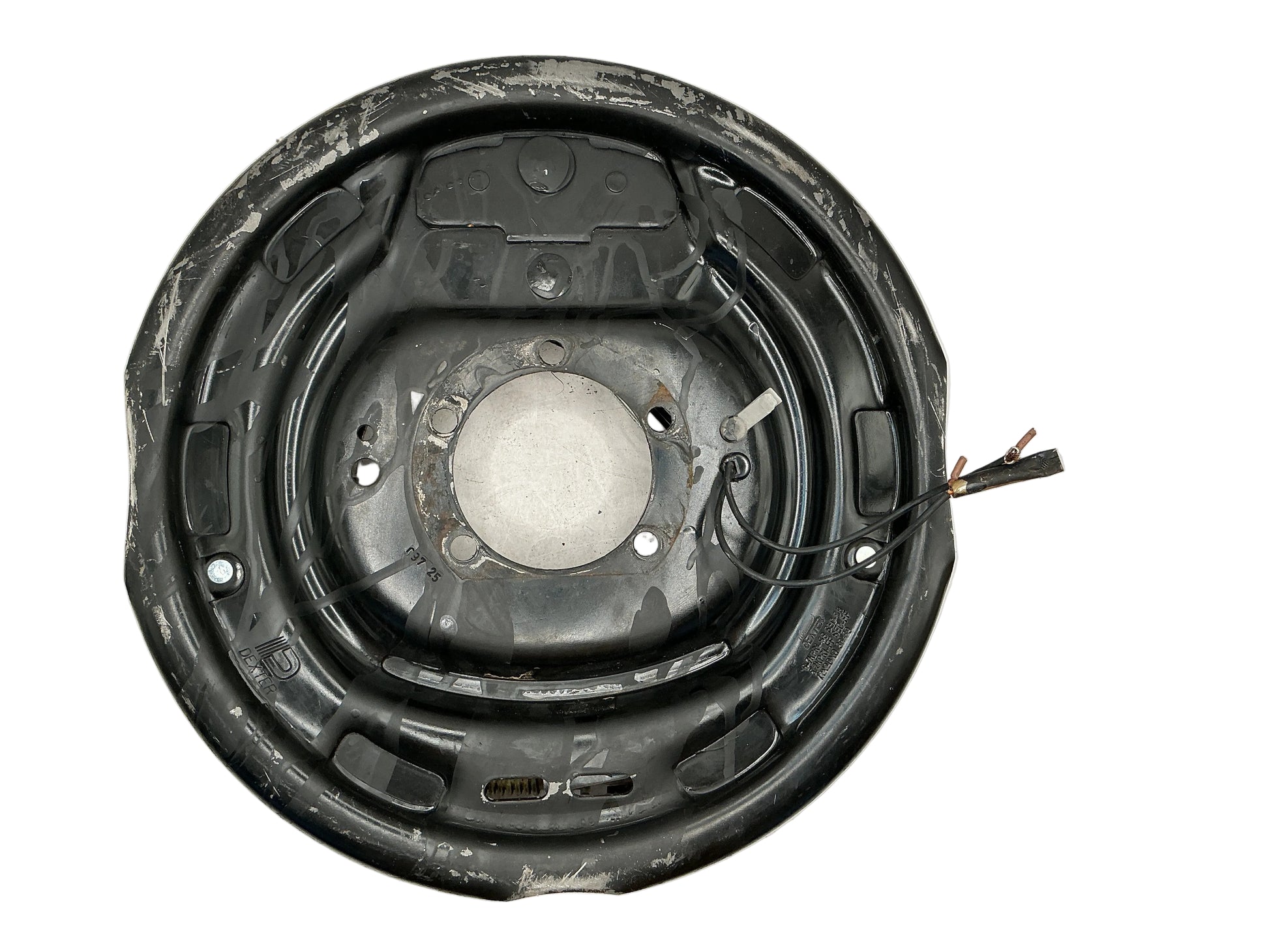

NEV-R-ADJUST ELECTRIC BREAKE DEXTER 12X2 RH 7K/PR FSA BOXED

⚙️ Key function (how it works)

1. Electric activation

• When you press the brake pedal in the tow vehicle, a brake controller sends 12V power to the trailer brakes.
• This energizes an electromagnet inside the brake assembly.

2. Friction braking

• The magnet sticks to the rotating drum surface.
• This pulls a lever that forces the brake shoes outward against the drum.
• The friction slows or stops the trailer.

3. Self-adjusting system (Nev-R-Adjust feature)

• Unlike manual brakes, this system automatically adjusts shoe clearance during normal forward braking.
• It maintains optimal contact between the shoe and drum without manual tuning.

🧠 What “Nev-R-Adjust” means

• “Forward self-adjusting” design
• Keeps brakes properly adjusted as they wear
• Reduces maintenance and improves consistency
• Can reduce stopping distance vs poorly adjusted brakes

📦 What “RH 7K / PR FSA BOXED” means

• RH (Right-Hand): Passenger side of the trailer
• 7K: Designed for 7,000 lb axle capacity (per pair)
• PR: Rated per pair (both sides together handle the load)
• FSA: Forward Self-Adjusting
• Boxed: Sold as a complete, ready-to-install unit in retail packaging

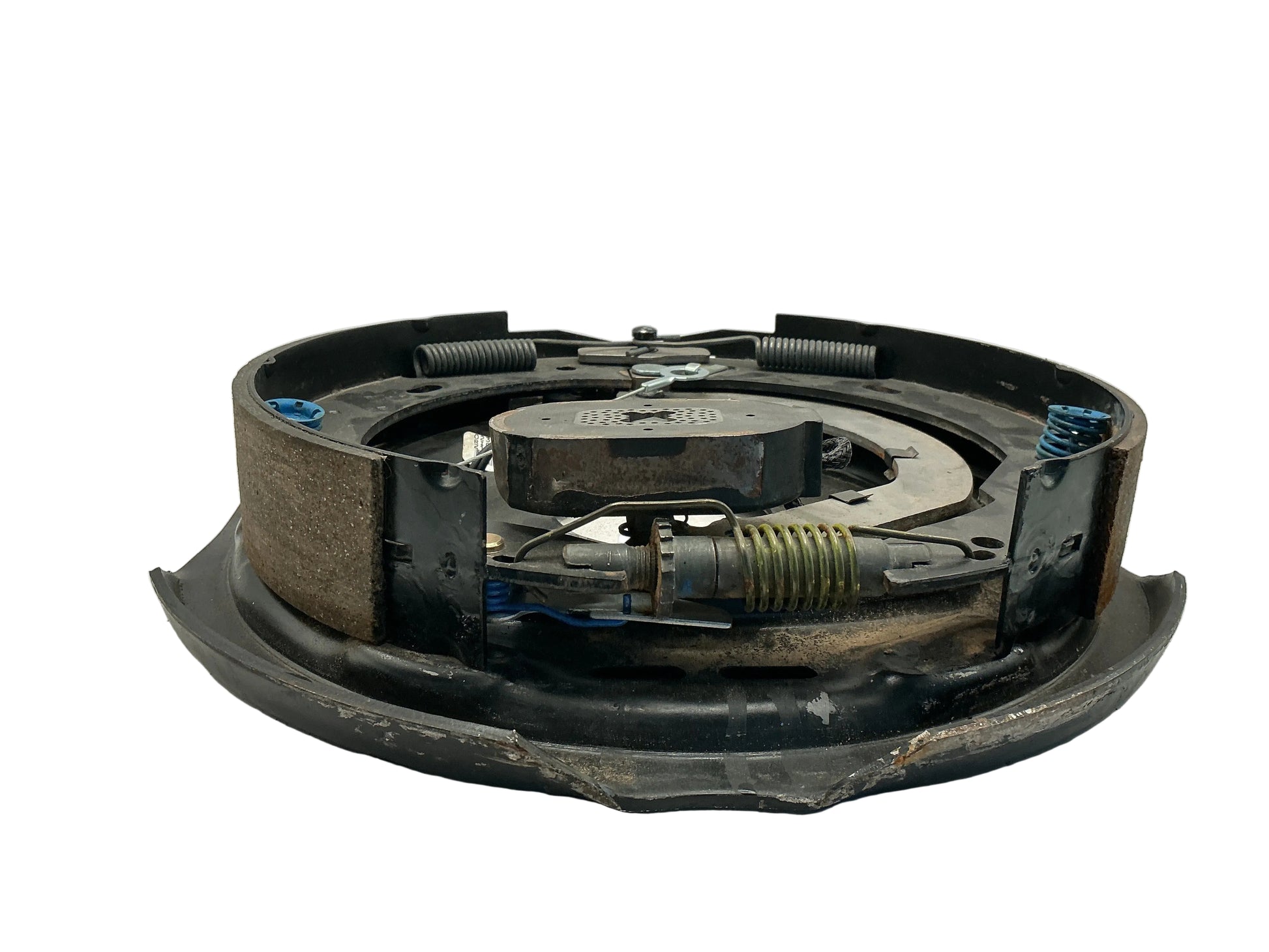

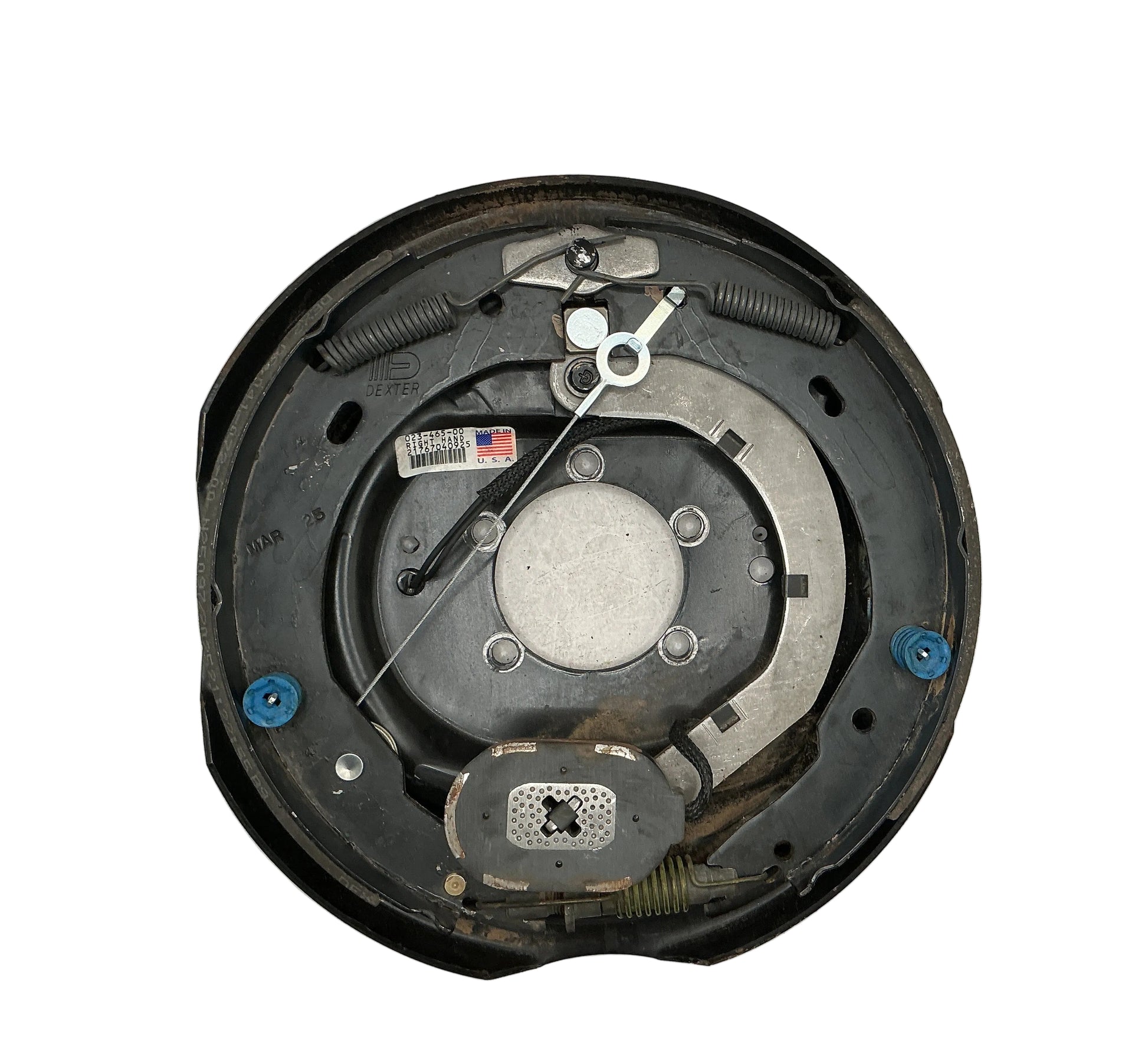

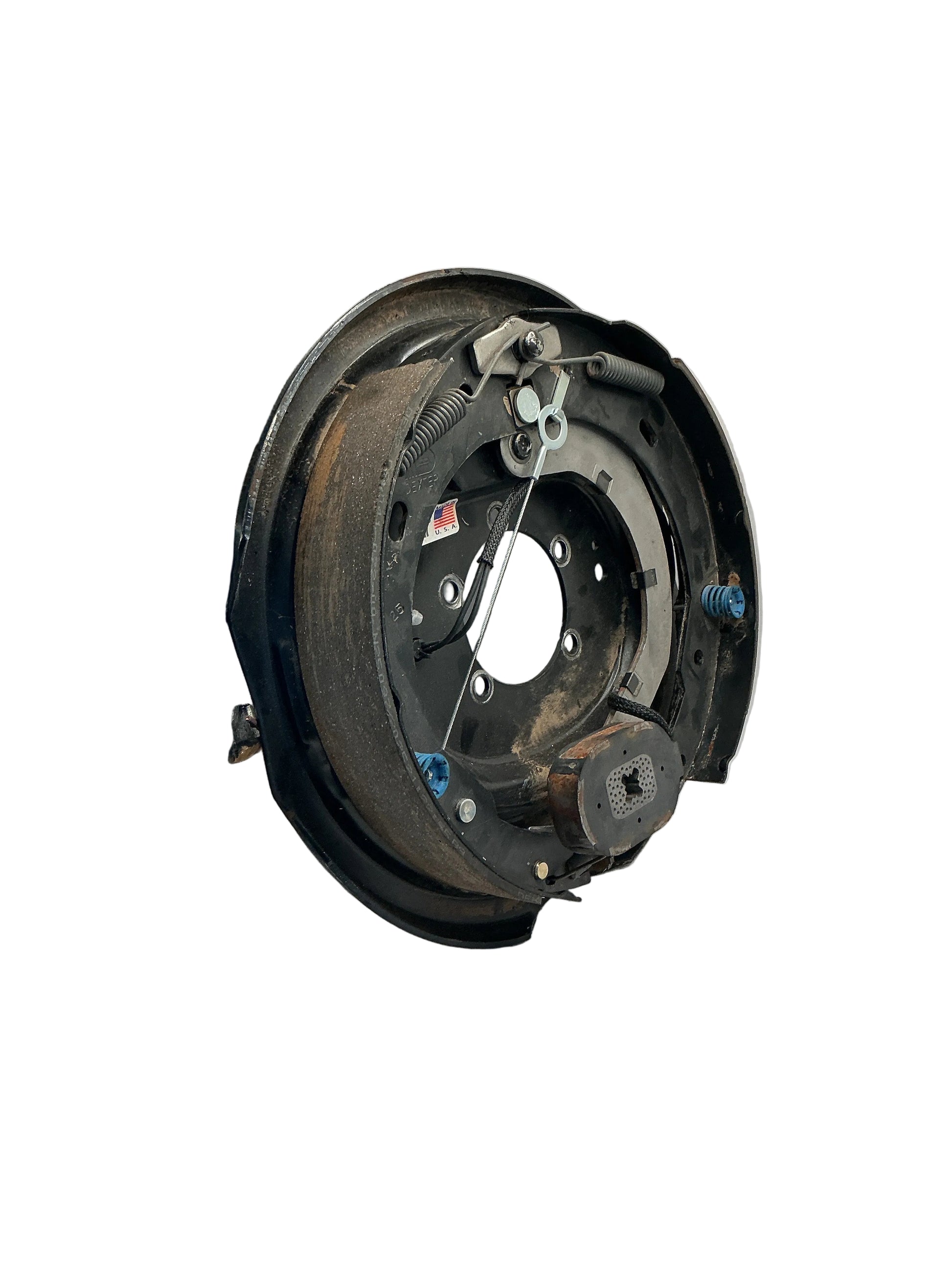

🧩 Main components

• Brake shoes (12" diameter × 2" wide)
• Electromagnet
• Actuating arm
• Springs and adjuster
• Backing plate (5-bolt mount)

🚛 Typical applications

• Utility trailers
• Car haulers
• RV / travel trailers
• Horse trailers

Fits standard 12" drum brake hubs on 7K axles and installs directly to a 5-bolt flange
