NEV-R-ADJUST ELECTRIC BRAKE DEXTER 12X2 LH 7K/PR FSA BOXED

🧩 What it is

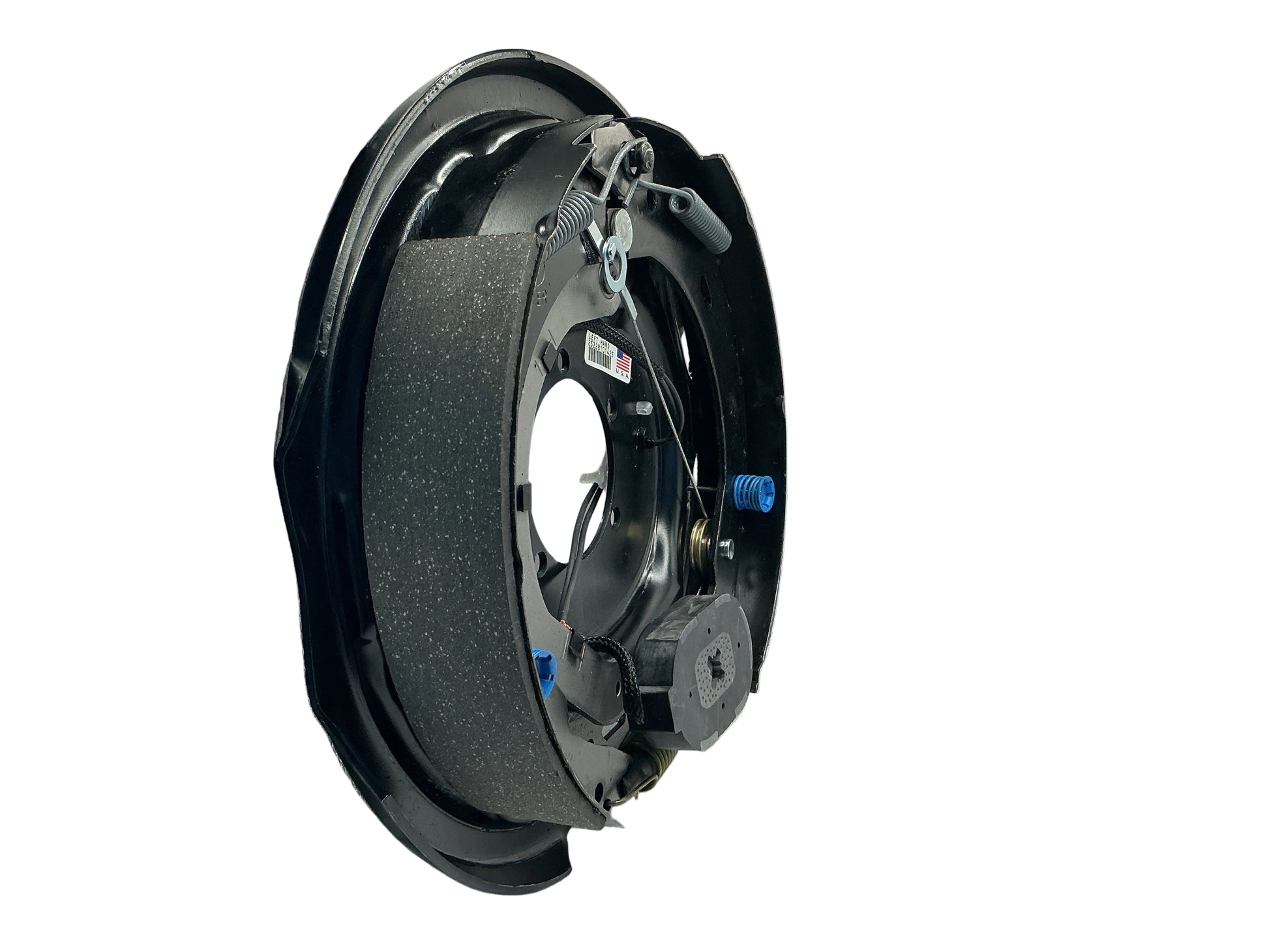

This is a complete electric drum brake assembly made by Dexter for trailers.

• 12" x 2" → brake drum size (diameter × width)
• LH (Left Hand) → installs on the driver’s side of the axle
• 7K (7,000 lb) → designed for axles rated up to 7,000 lbs (3,500 lbs per wheel)
• FSA / Nev-R-Adjust → Forward Self-Adjusting mechanism

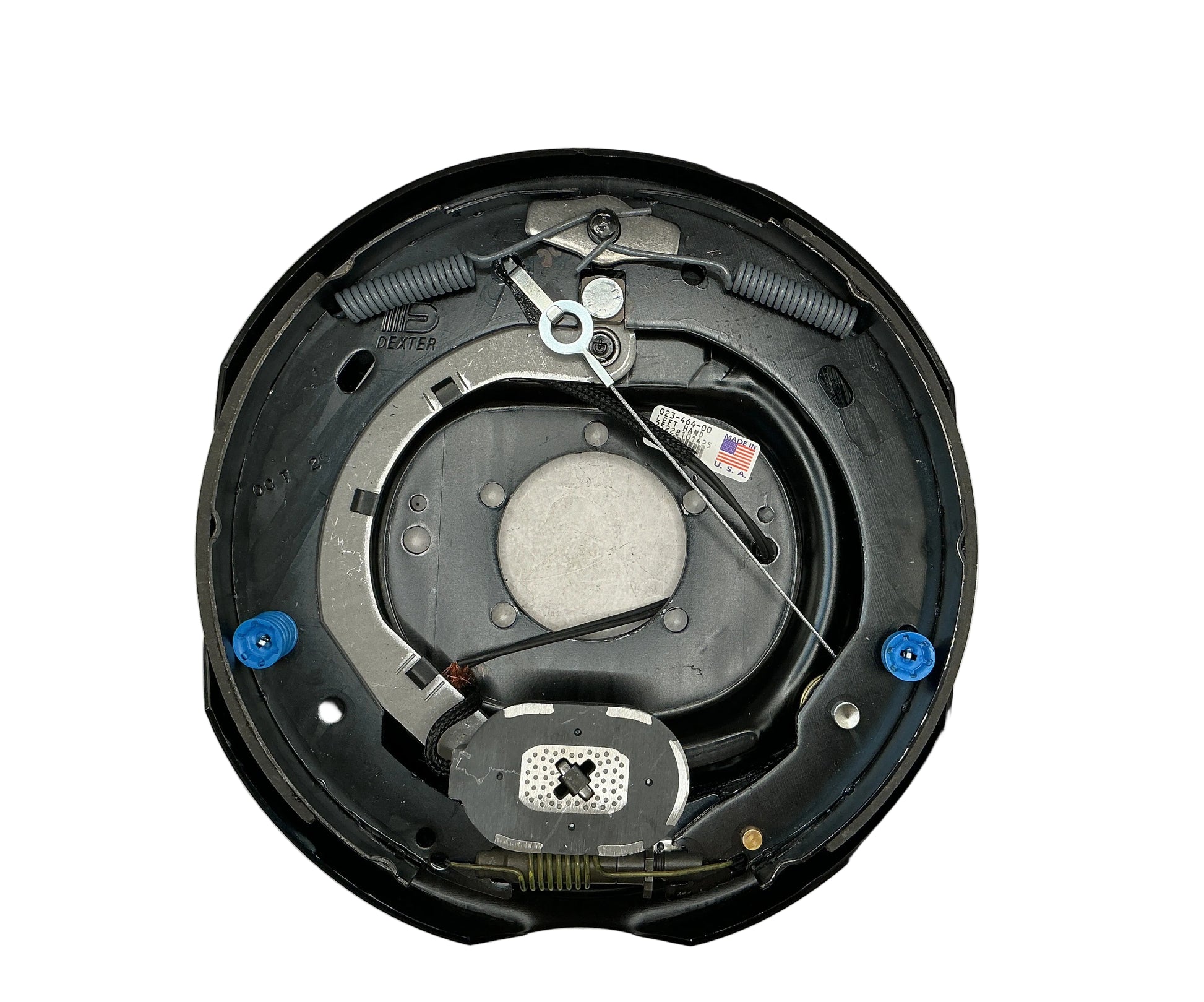

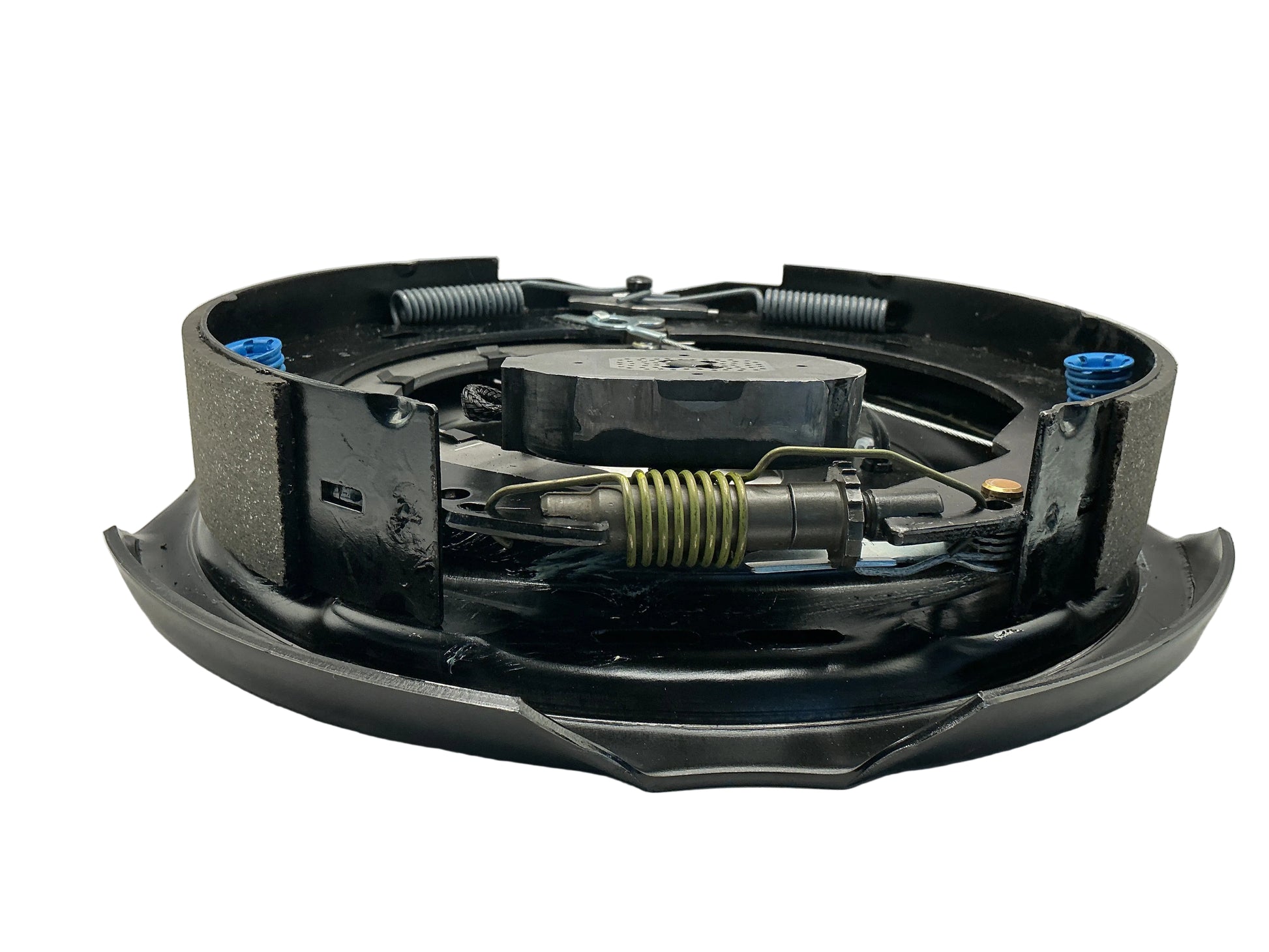

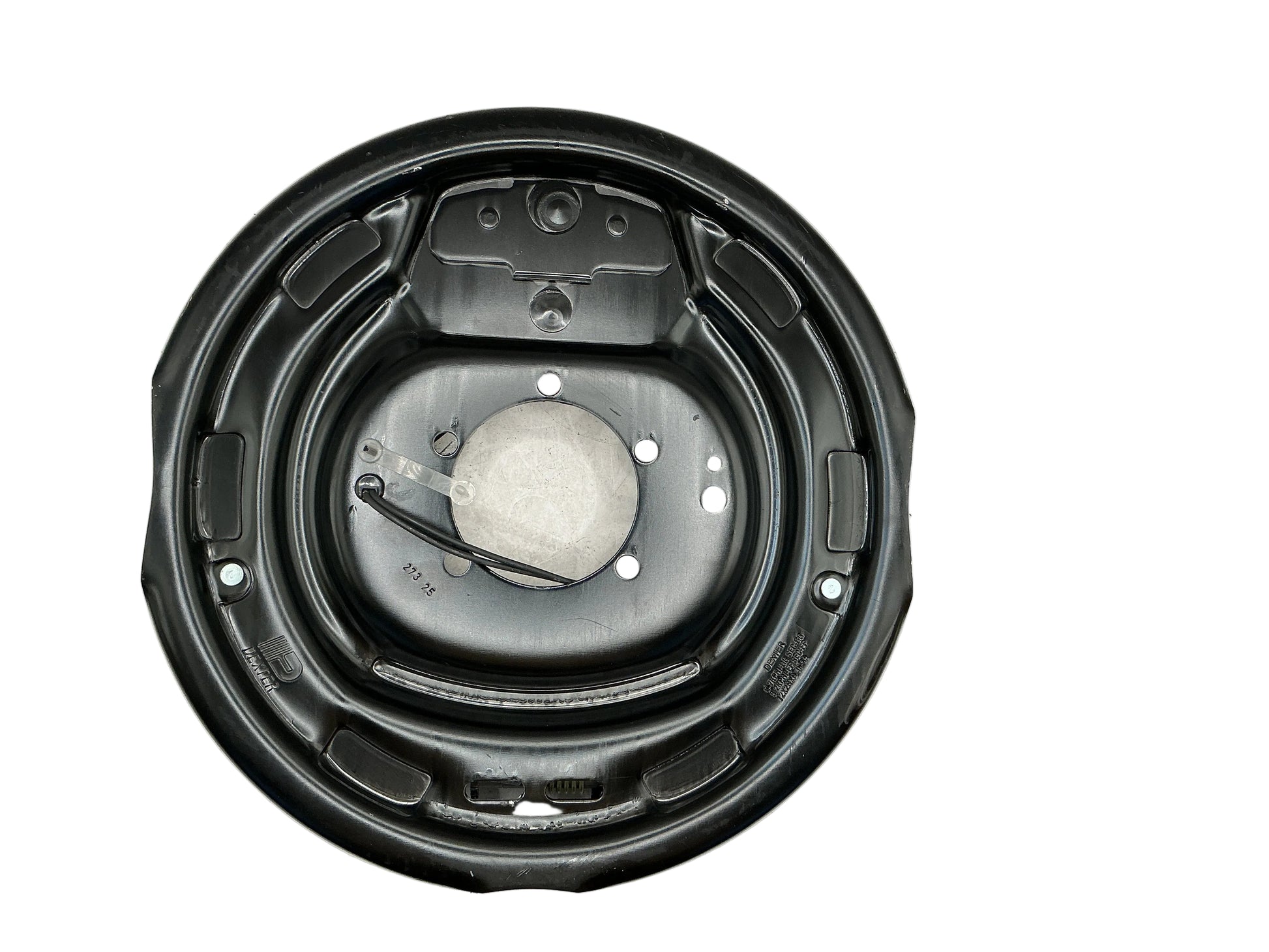

It comes pre-assembled (shoes, springs, magnet, adjuster), ready to bolt onto a standard 5-bolt brake flange.

⚙️ Main function

The brake’s job is to slow down or stop a trailer when you apply the brakes in the towing vehicle.

How it works (step-by-step)

1. Brake controller sends power
   When you press the brake pedal, an electric brake controller sends current to the trailer brakes.
2. Electromagnet activates
   Inside the assembly, a magnet is energized and sticks to the rotating drum.
3. Shoes expand outward
   The magnet movement pulls a lever that forces the brake shoes outward against the drum.
4. Friction slows the wheel
   The contact between shoes and drum creates friction, stopping the trailer.

🔄 What “Nev-R-Adjust” means

This is the key feature of your model.

• It automatically adjusts the brake shoe clearance as the trailer moves forward and brakes are applied
• Maintains optimal braking performance without manual adjustment
• Reduces maintenance and ensures consistent stopping power

👉 In traditional brakes, you must manually adjust shoe clearance.
👉 With Nev-R-Adjust, the system does it for you during normal driving.

🧠 Why it matters

• ✅ Safer braking (consistent response)
• ✅ Less maintenance (no frequent manual adjustments)
• ✅ Better performance over time (compensates for wear)
• ✅ Quick replacement (bolt-on complete assembly)
