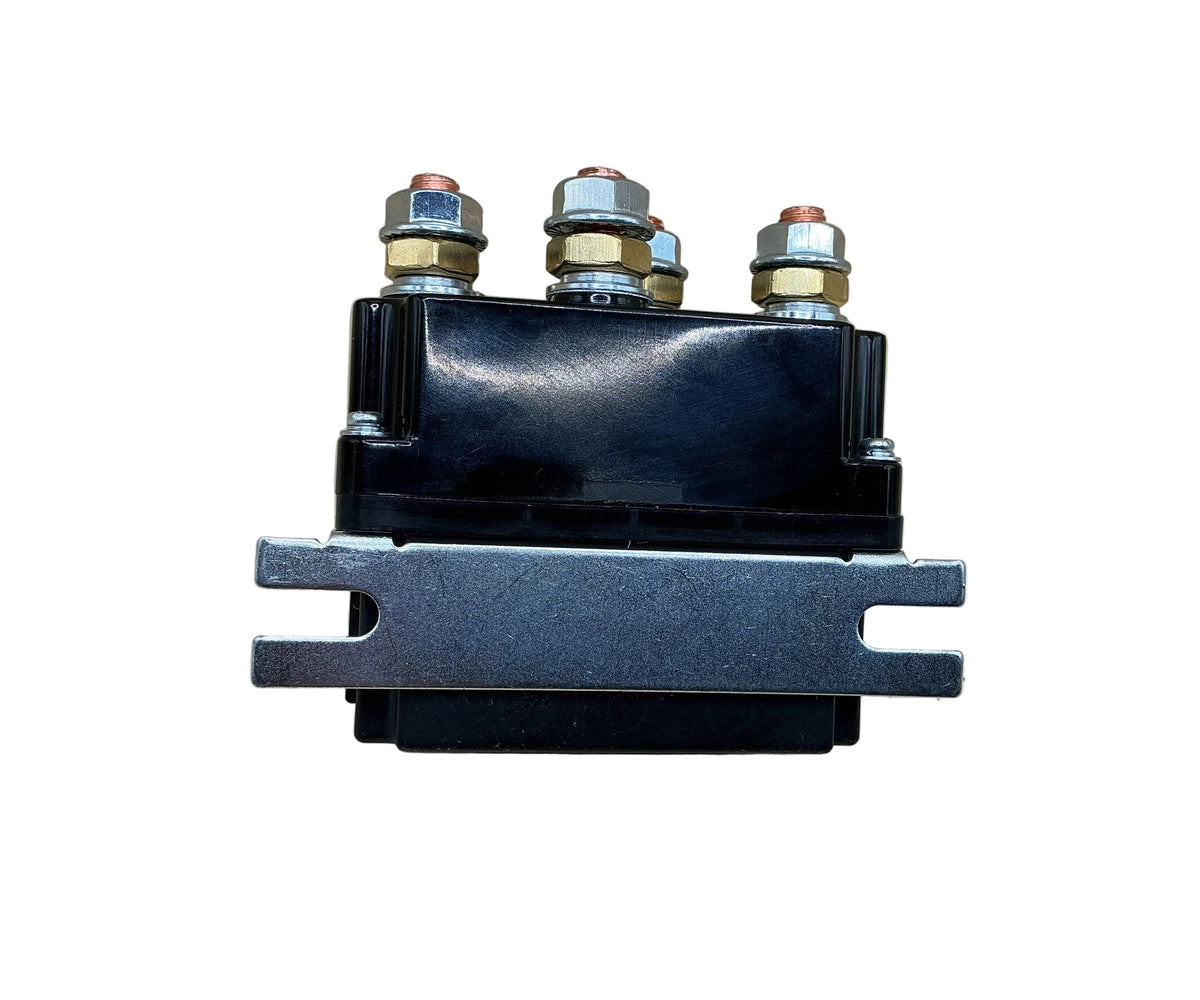

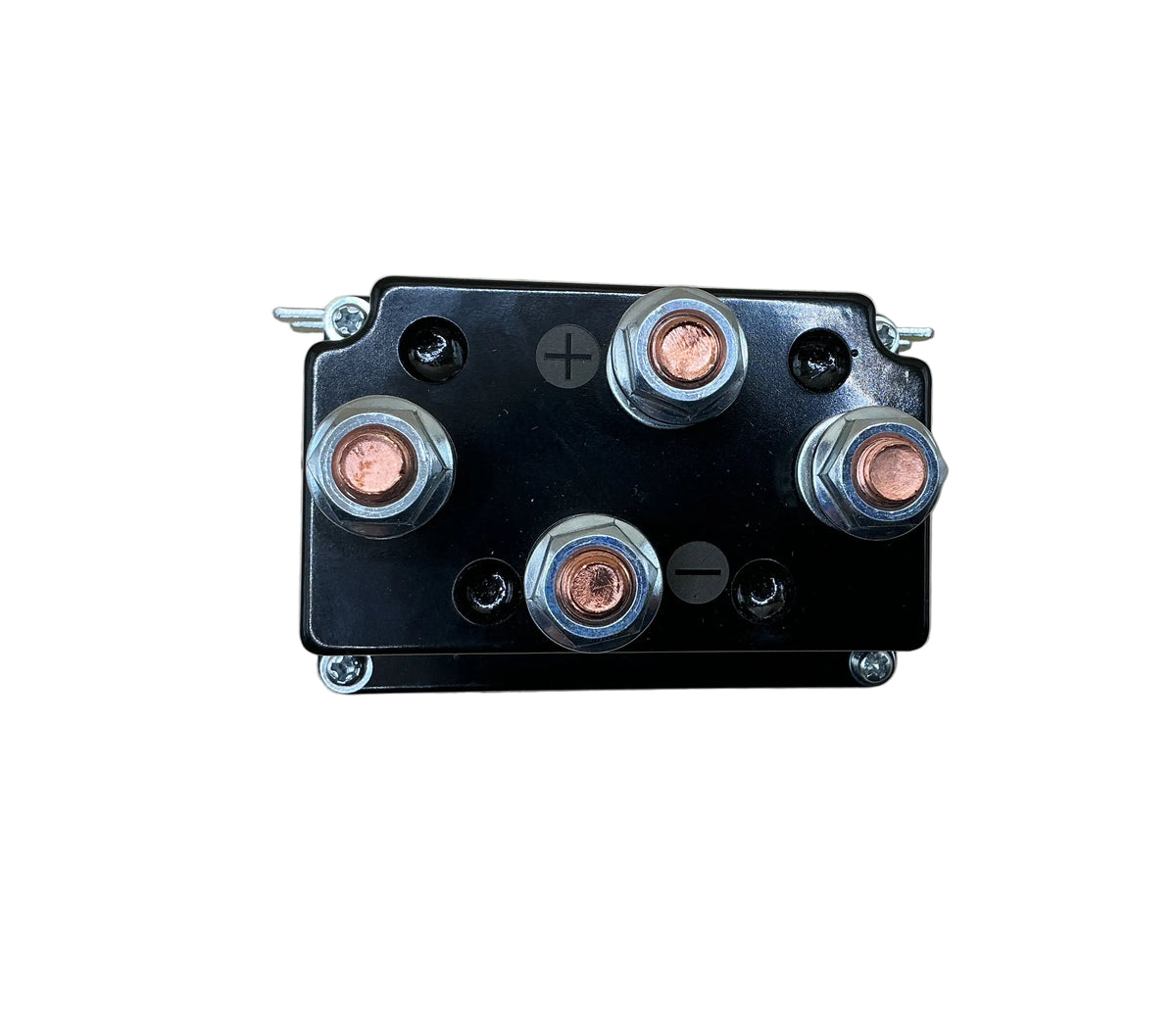

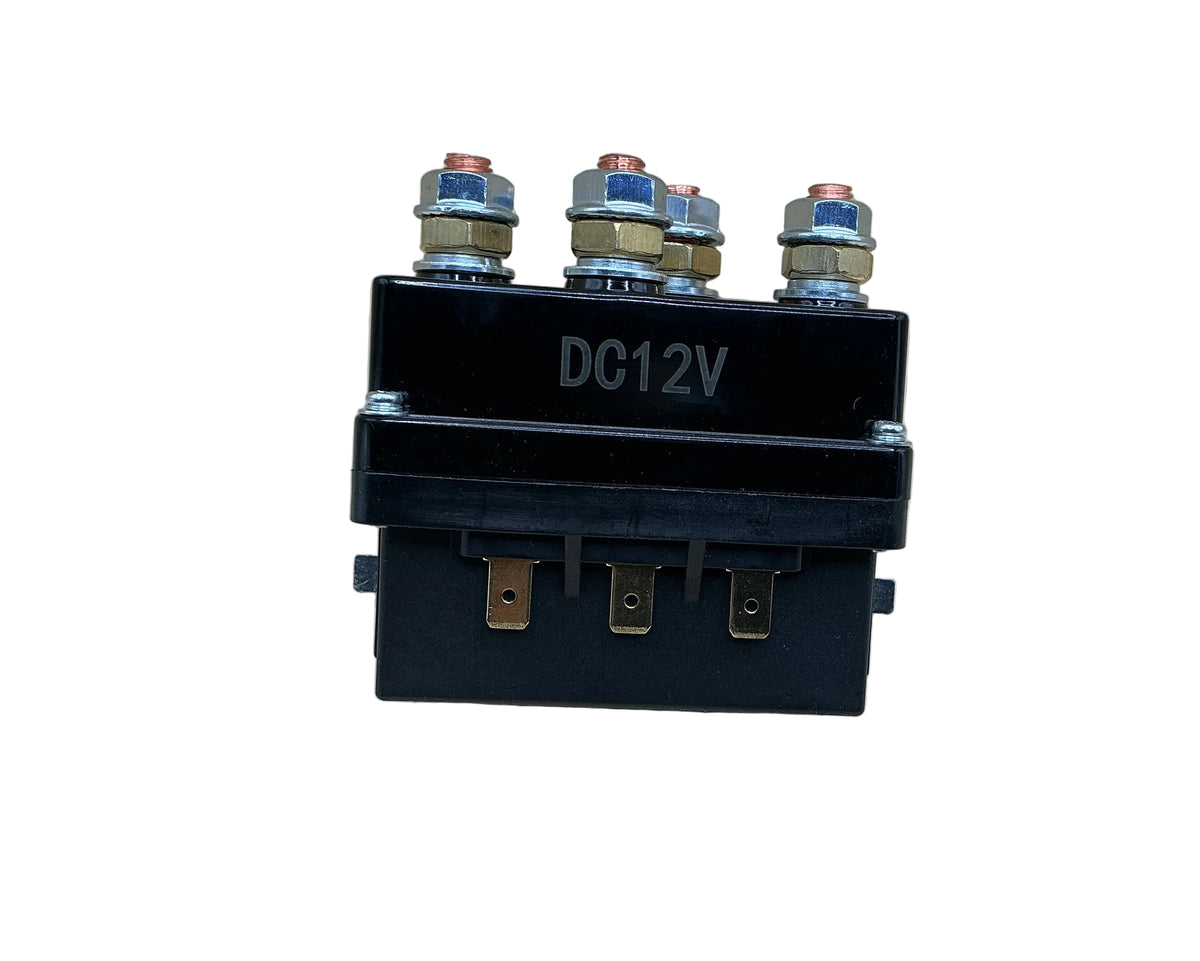

WINCH SOLENOID RELAY CONTACTOR 12V 500A

Its primary function is to switch the high current required by the winch motor using a low-current 12V control signal. Instead of routing hundreds of amps through the winch switch or remote control, the remote sends a small electrical signal to the solenoid/contactor, which then connects the battery to the winch motor.

Typical operation:

• 12V control input: Activated by the winch switch or remote.

• High-current contacts: Close internally when the solenoid is energized.

• Battery connection: Allows battery power to flow to the winch motor.

• Motor direction: In a reversing winch system, multiple solenoids/contactors are used to switch the motor's polarity for IN and OUT operation.

• 500A rating: Indicates the contactor is designed to handle very high current; the exact continuous, intermittent, and peak ratings depend on the manufacturer's specifications.
