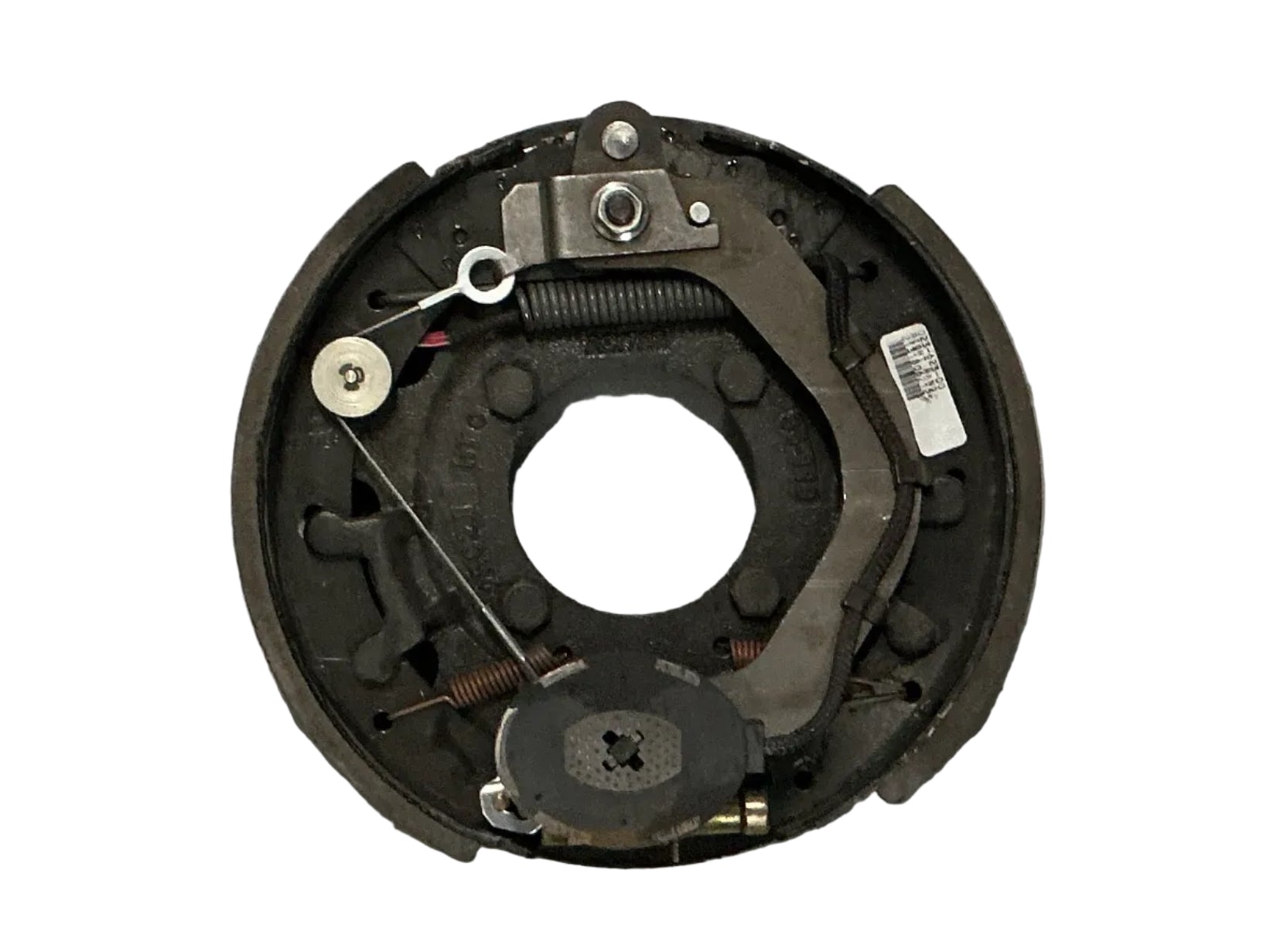

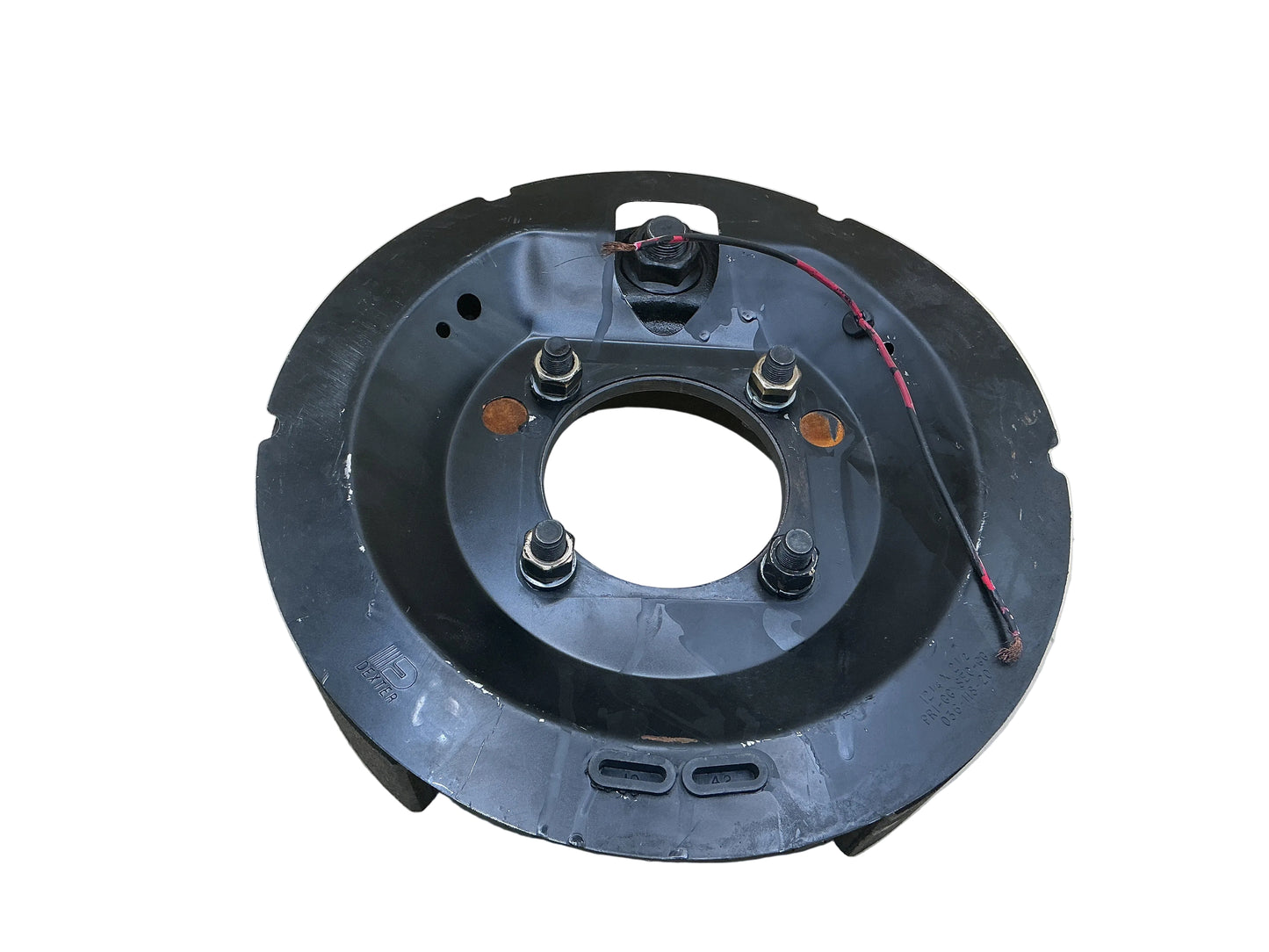

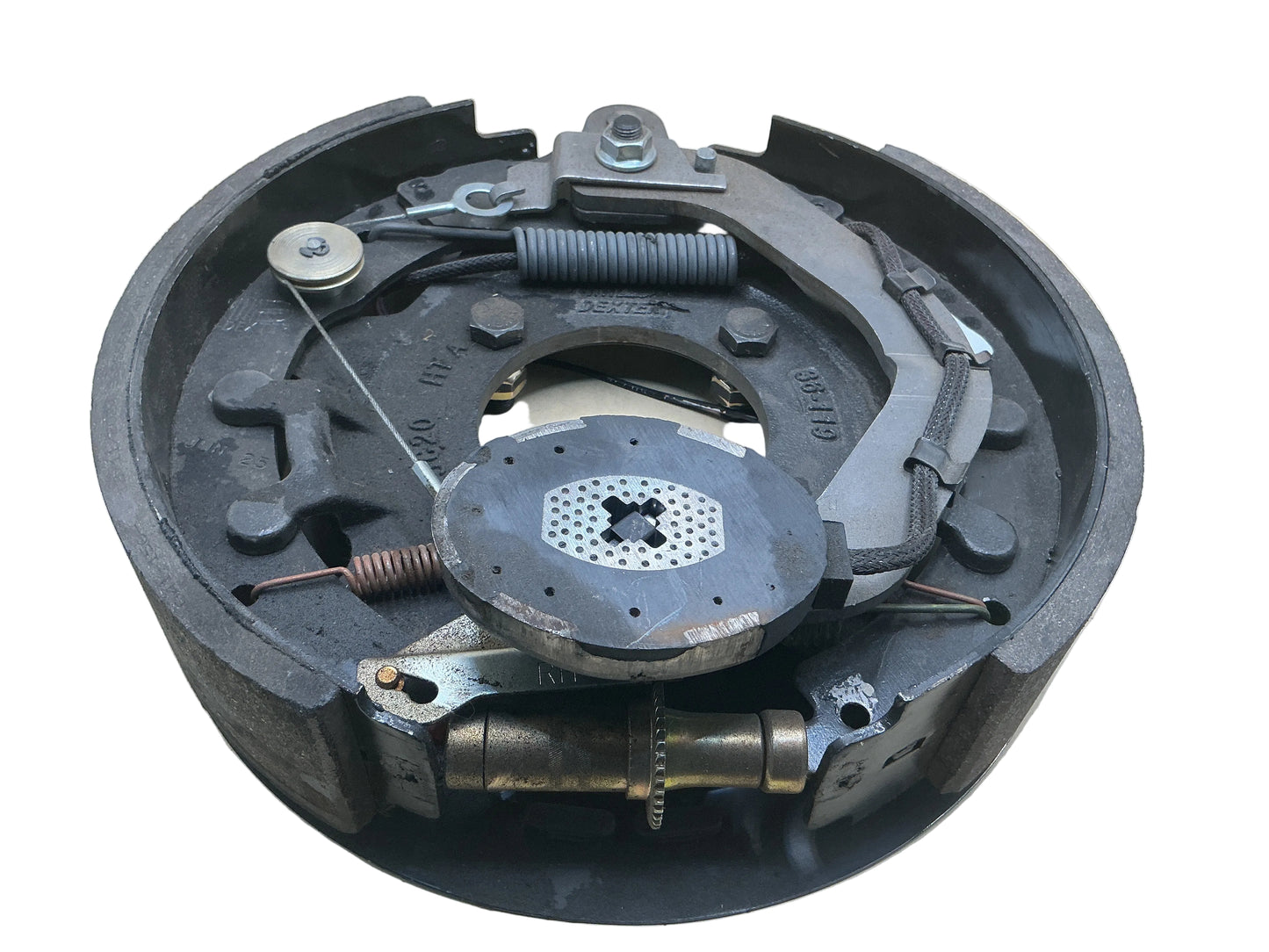

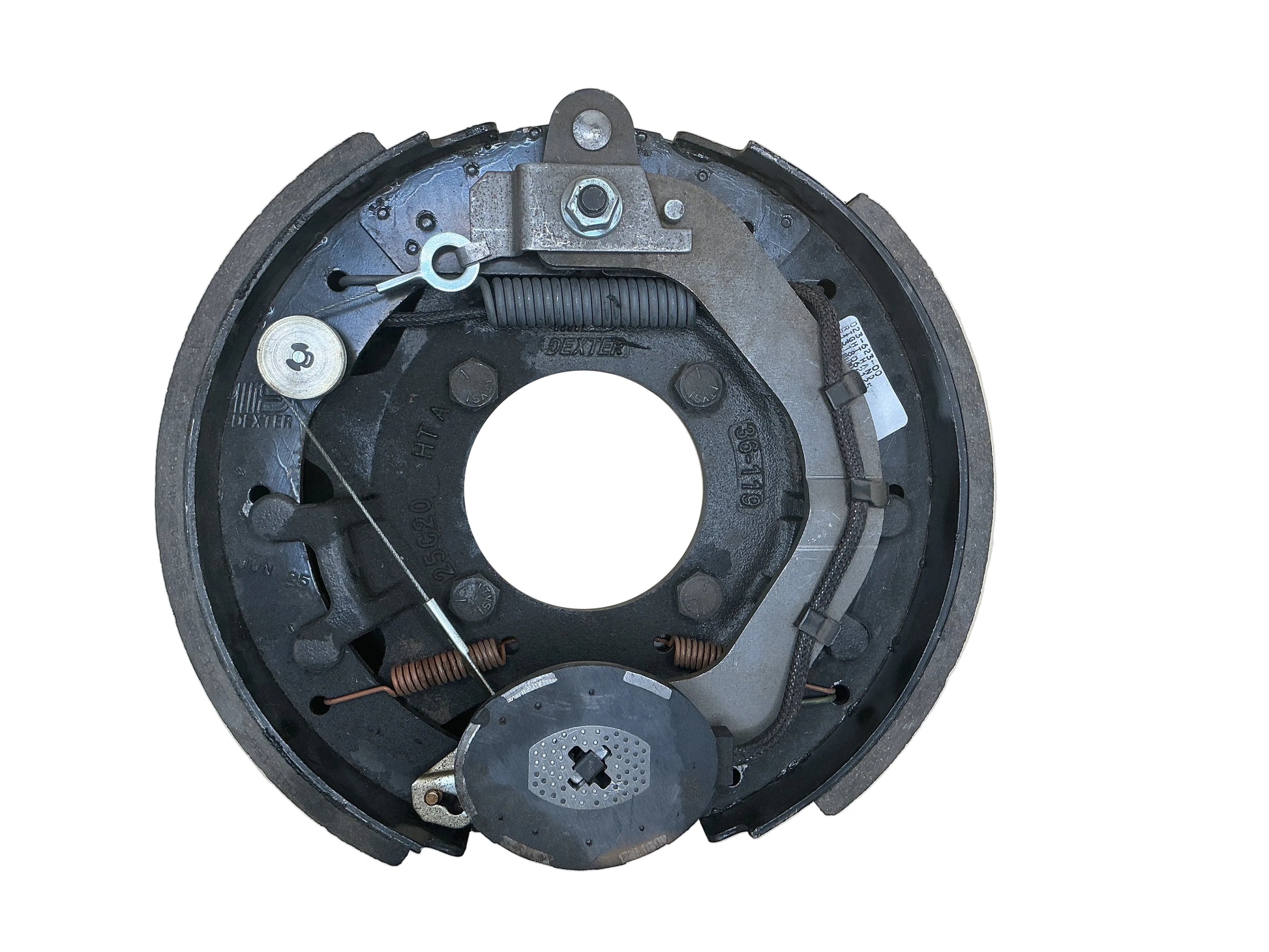

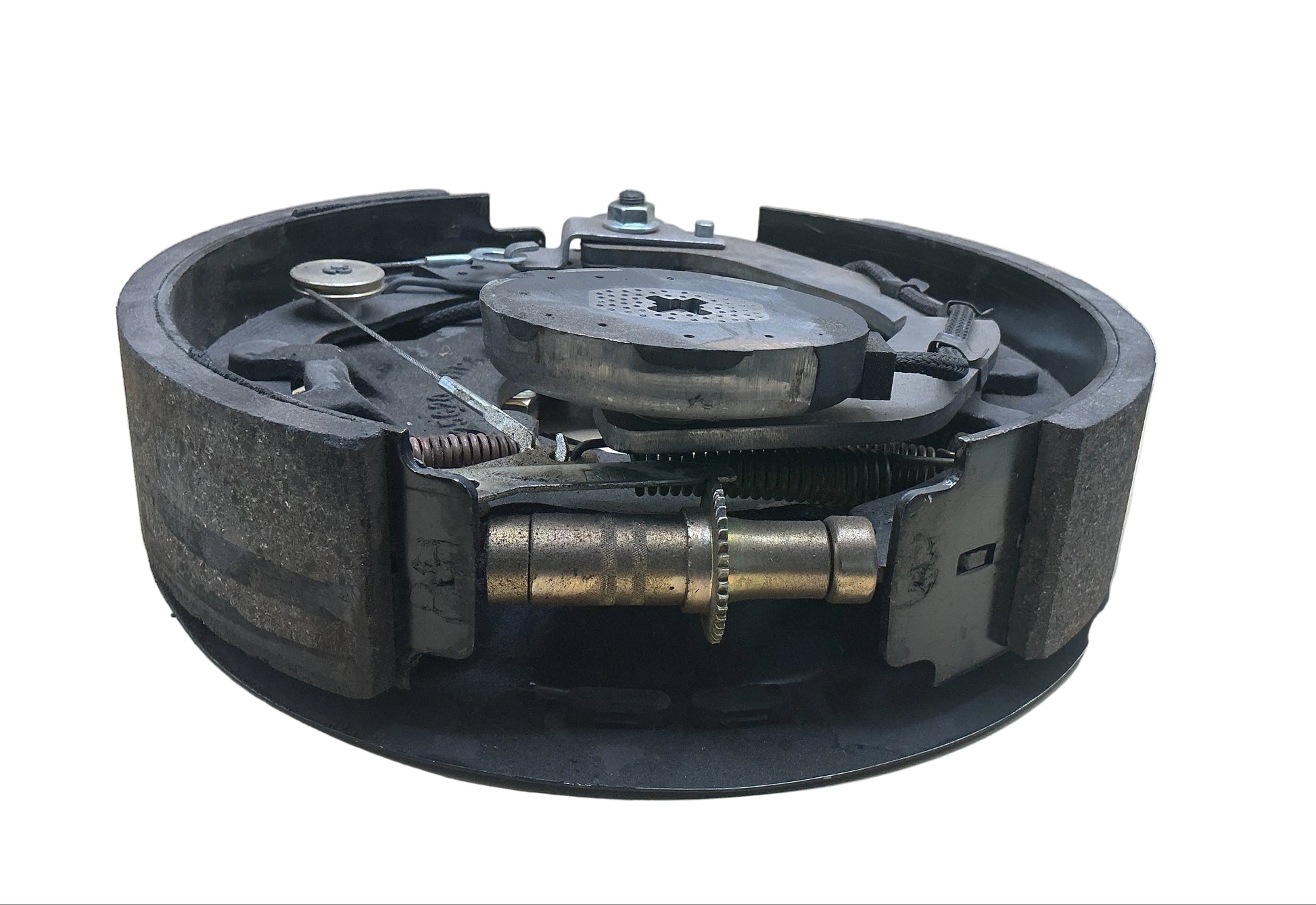

Complete Brake 8K 12-1/4 x 2-1/2 RH

The brake assembly converts the electrical signal from the trailer's brake controller into mechanical braking force:

1. Brake controller activation – When the tow vehicle's brake pedal is pressed, the controller sends power to the trailer brakes.
2. Electromagnet engagement – The brake magnet contacts the inside face of the rotating brake drum.
3. Actuating arm movement – The magnet's movement pulls the actuating lever.
4. Brake shoe expansion – The lever forces the brake shoes outward against the inside of the drum.
5. Friction creates braking – The friction between the brake linings and drum slows the wheel until the trailer decelerates or stops.

Key Specifications

• Axle Rating: 8,000 lb
• Brake Size: 12-1/4 inch diameter × 2-1/2 inch wide
• Side: Right-Hand (RH) – Passenger side when facing the direction of travel
• Brake Type: Electric drum brake
• Mounting: Typically fits a standard 5-bolt brake flange
• Wheel Compatibility: Designed for hubs and drums that accept 12-1/4" × 2-1/2" brake shoes

Complete Assembly Includes

• Primary and secondary brake shoes with friction lining
• Electromagnet
• Actuating lever
• Return springs
• Hold-down springs and pins
• Adjuster screw assembly
• Backing plate
• Pre-assembled hardware for easier installation

Typical Applications

• Equipment trailers
• Gooseneck trailers
• Flatbed trailers
• Heavy-duty utility trailers
• Fifth-wheel and large RV trailers
