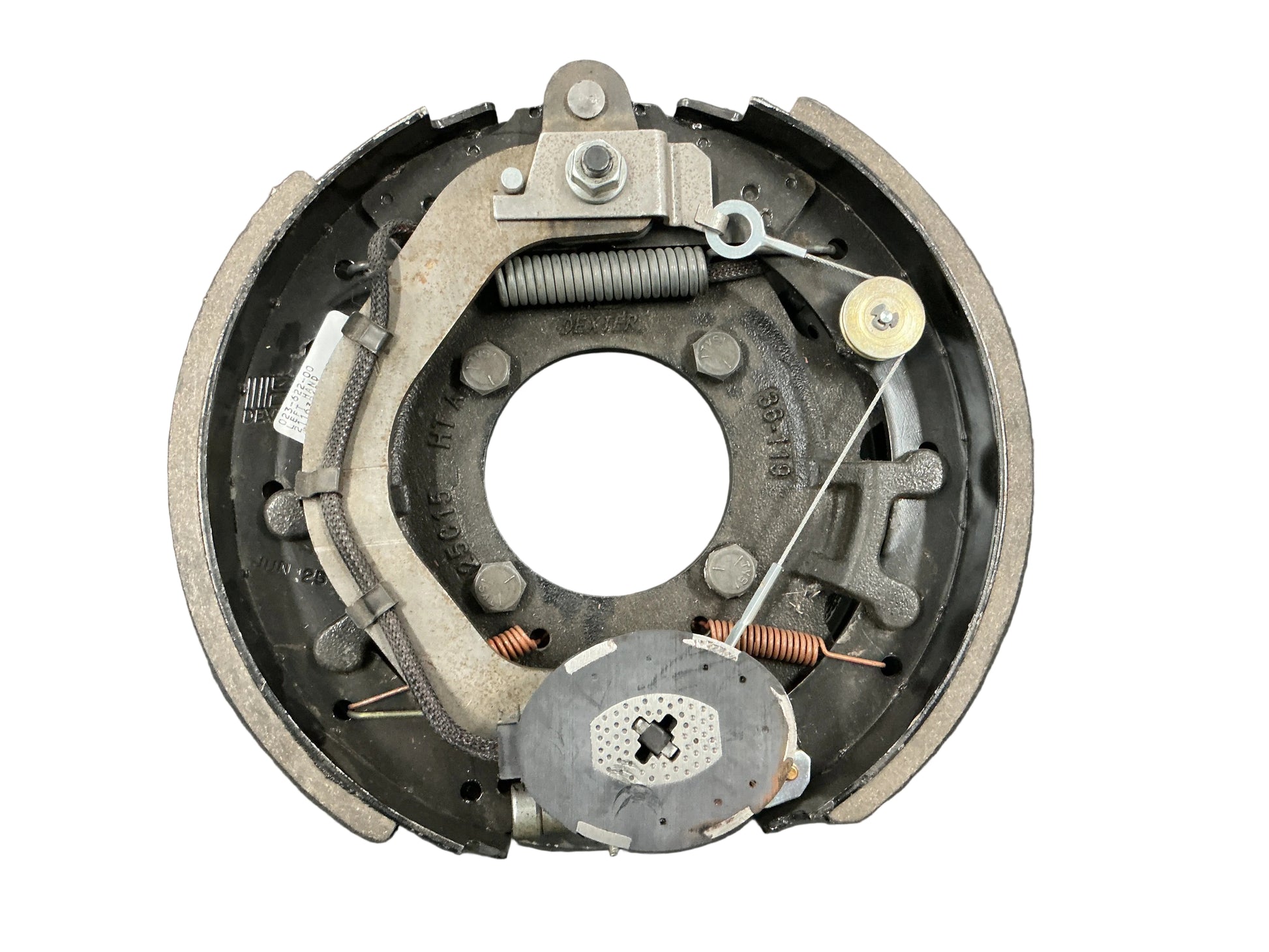

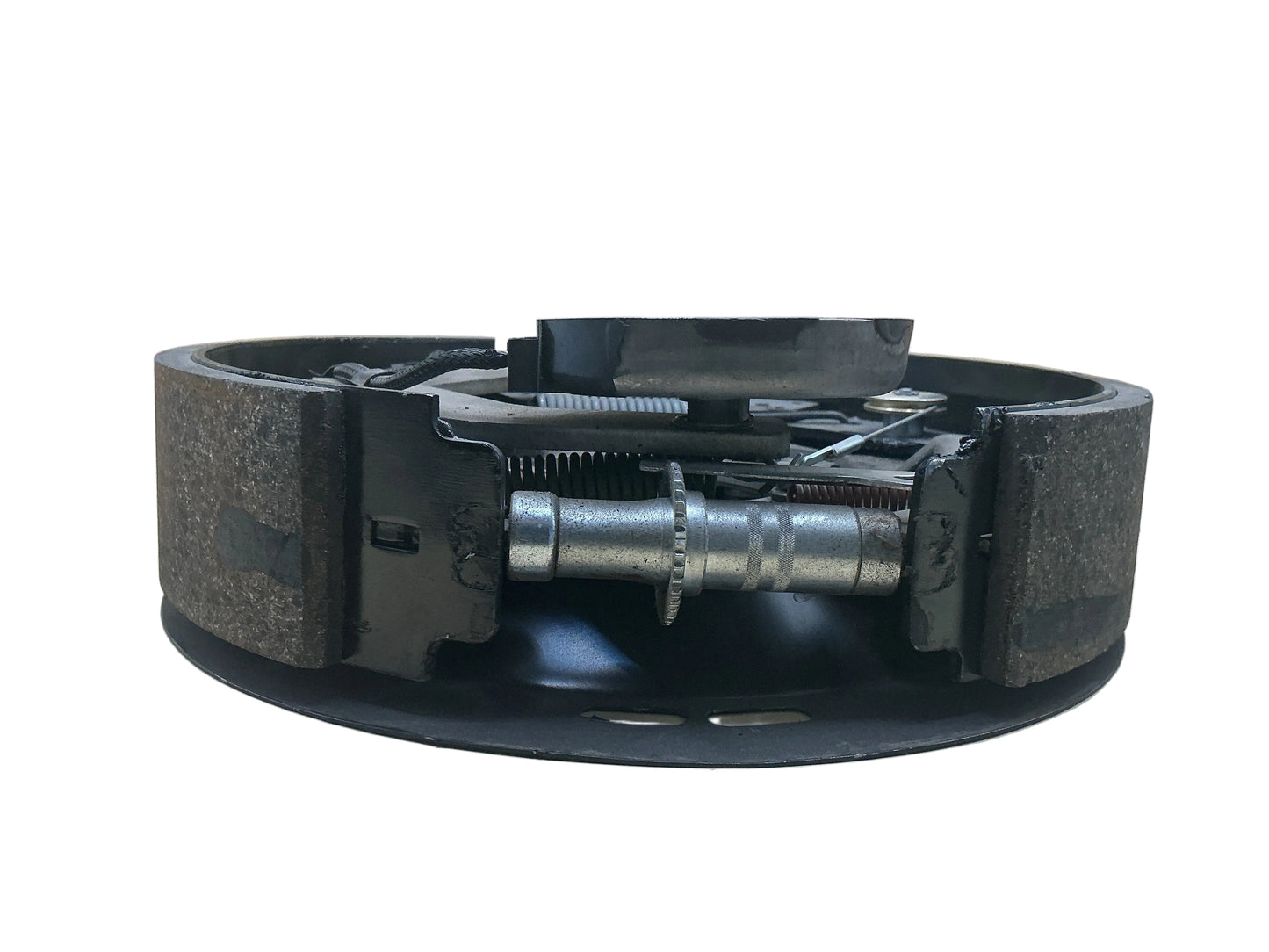

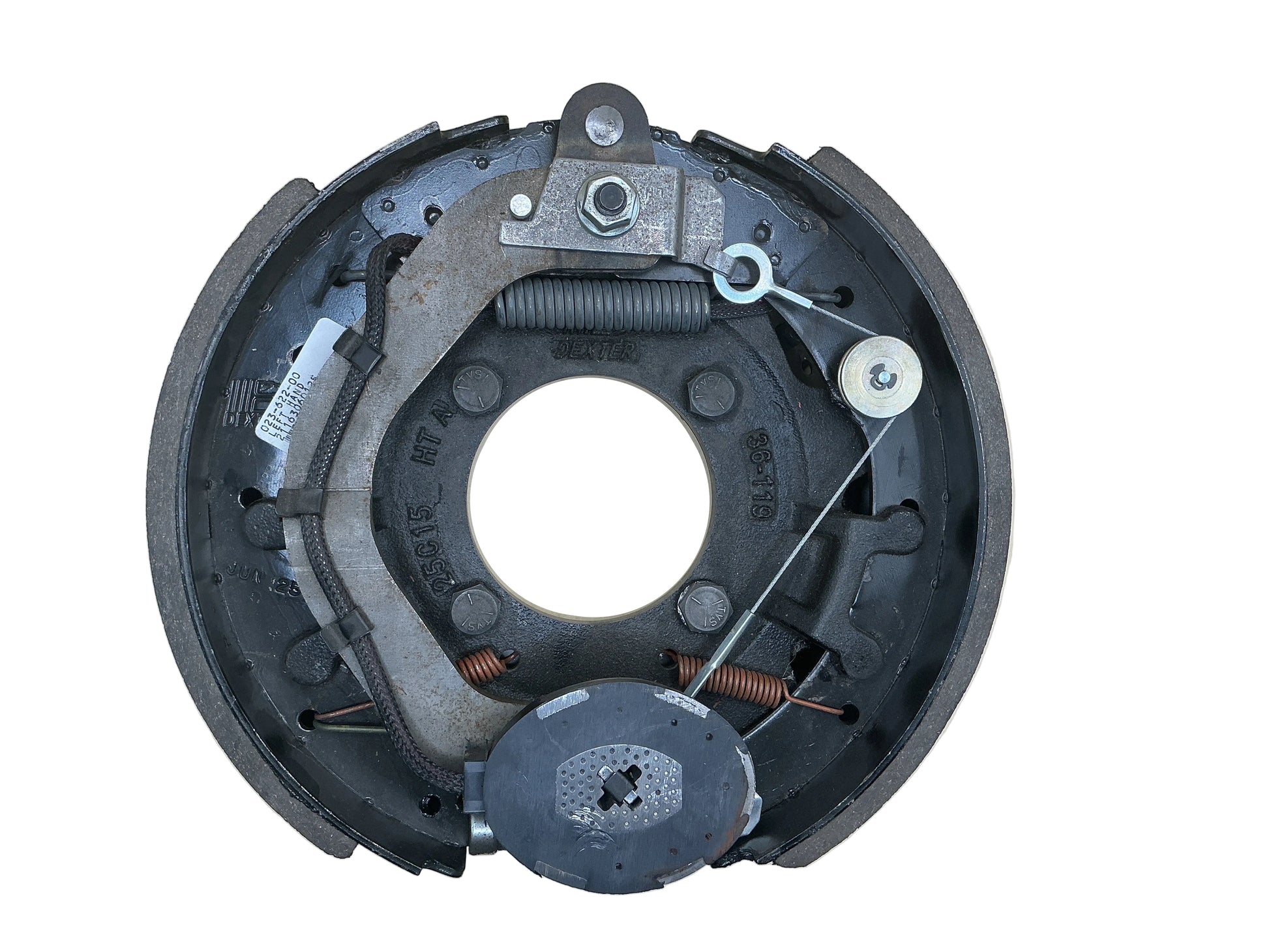

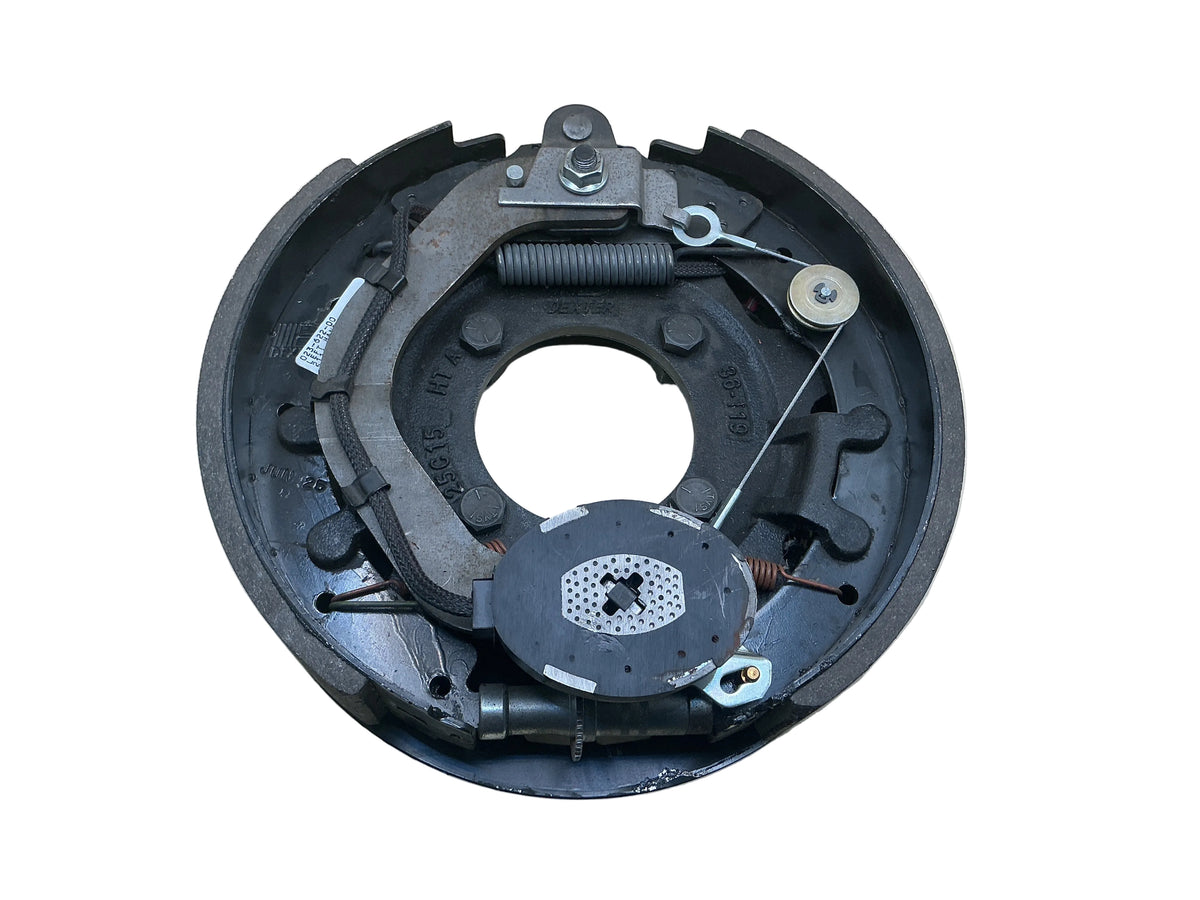

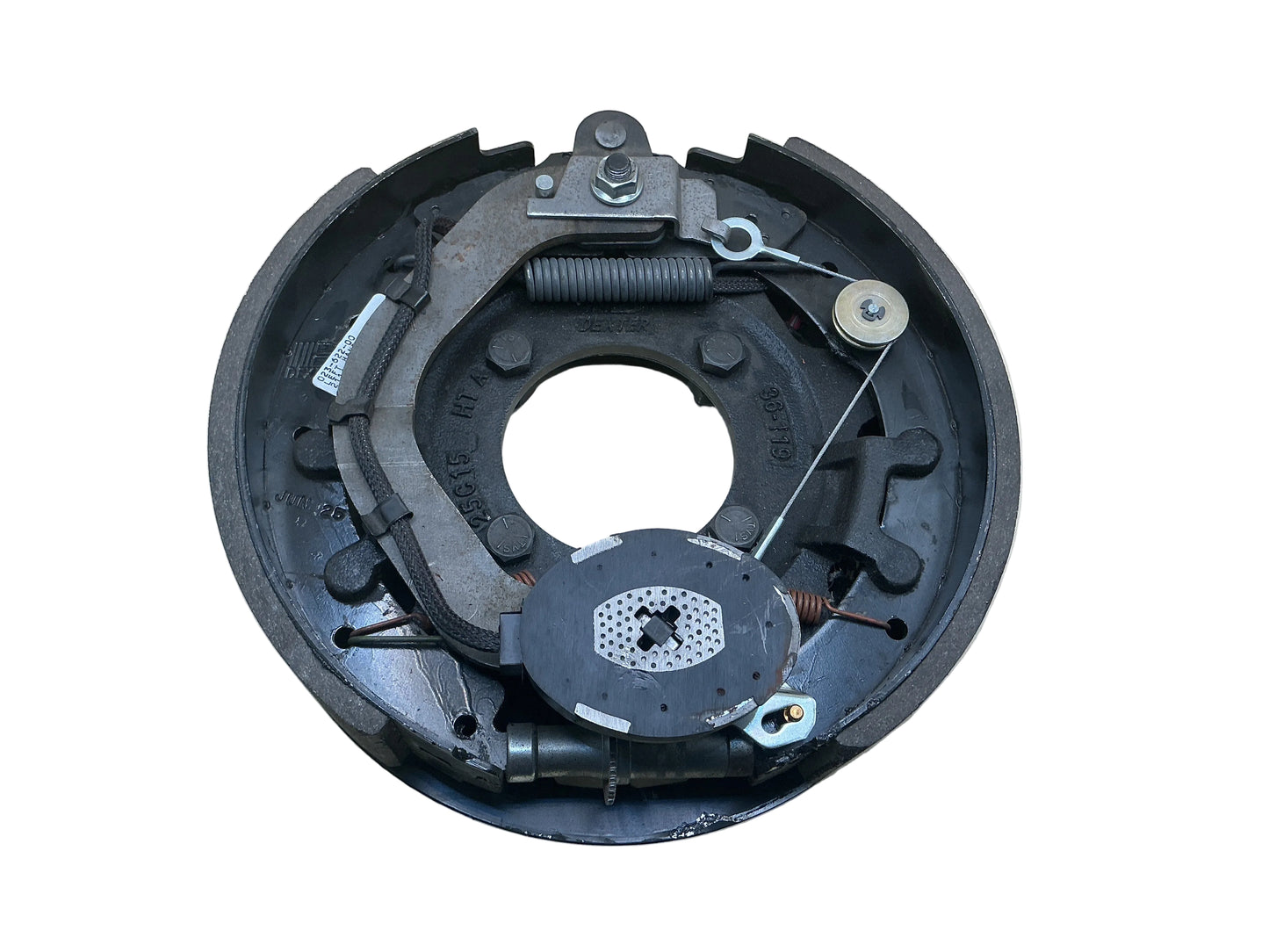

Complete Brake 8K 12-1/4 x 2-1/2 LH

Function

The brake assembly performs the following functions:

• Slows and stops the trailer when the tow vehicle's brake controller sends electrical current to the brake magnets.
• Converts electrical energy into braking force by using an electromagnet that attracts to the rotating brake drum.
• Expands the brake shoes against the inside of the drum, creating friction that slows the wheel.
• Automatically adjusts (if self-adjusting) or allows manual adjustment to maintain proper braking performance as the brake shoes wear.

Main Components

A complete assembly typically includes:

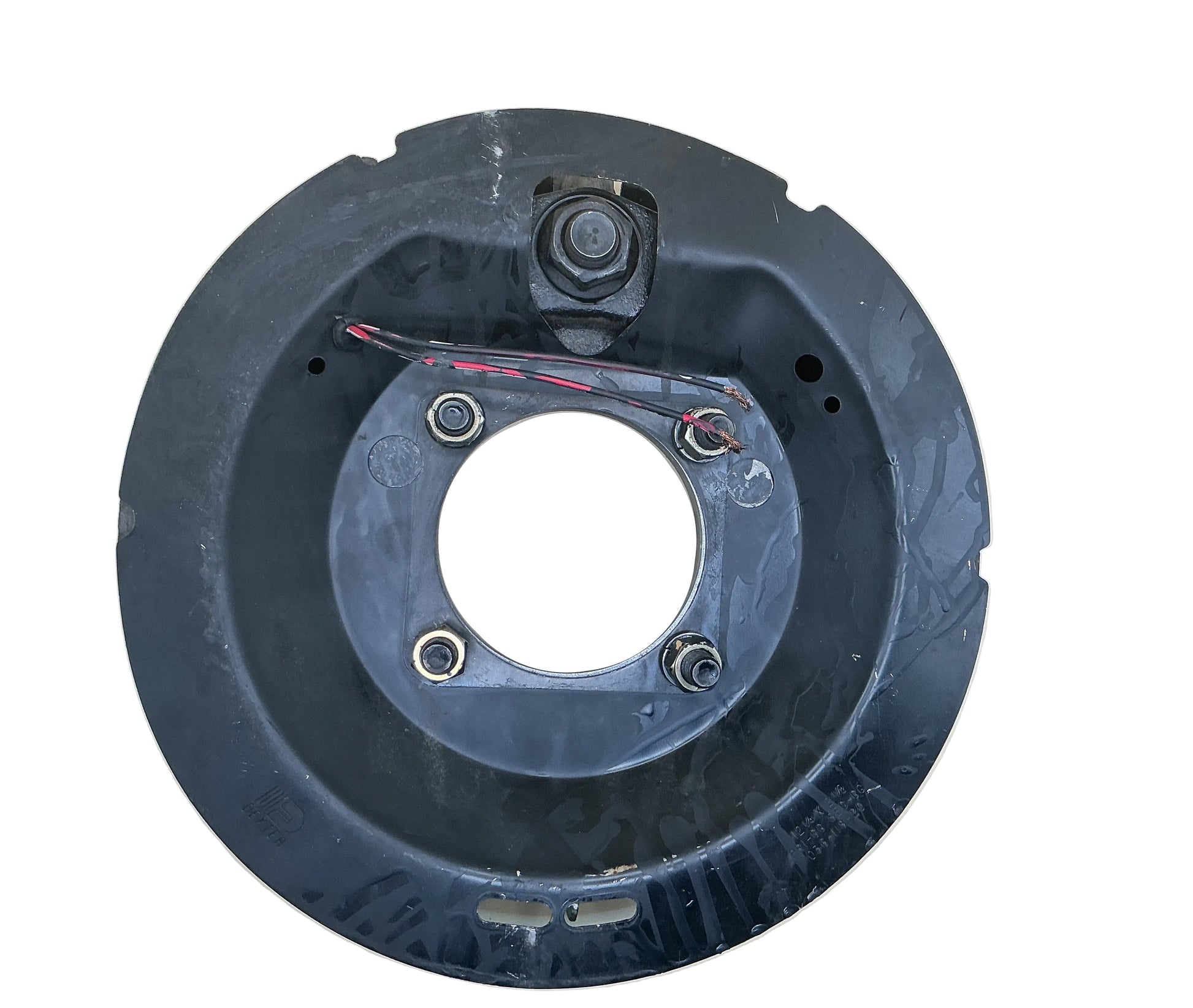

• Brake backing plate
• Brake shoes with friction lining
• Electromagnet
• Return and hold-down springs
• Actuating lever
• Adjuster assembly (manual or self-adjusting, depending on the model)
• Mounting hardware preassembled on the backing plate

Specifications

• Axle Capacity: 8,000 lb
• Brake Size: 12-1/4 in. diameter × 2-1/2 in. wide
• Side: Left-hand (LH) – driver's side when facing the direction of travel
• Brake Type: Electric drum brake
• Mounting: Typically a 5-bolt brake flange

Typical Applications

This brake assembly is commonly used on:

• Equipment trailers
• Flatbed trailers
• Gooseneck trailers
• Utility trailers
• Cargo trailers
• RV and fifth-wheel trailers equipped with 8K axles
