BRAKE AWAY KIT (VLED)

🔧 Core Function

The main purpose of a brake away kit is to stop a runaway trailer. If the trailer detaches from the hitch, the system activates the trailer’s electric brakes to bring it to a stop.

⚙️ How It Works

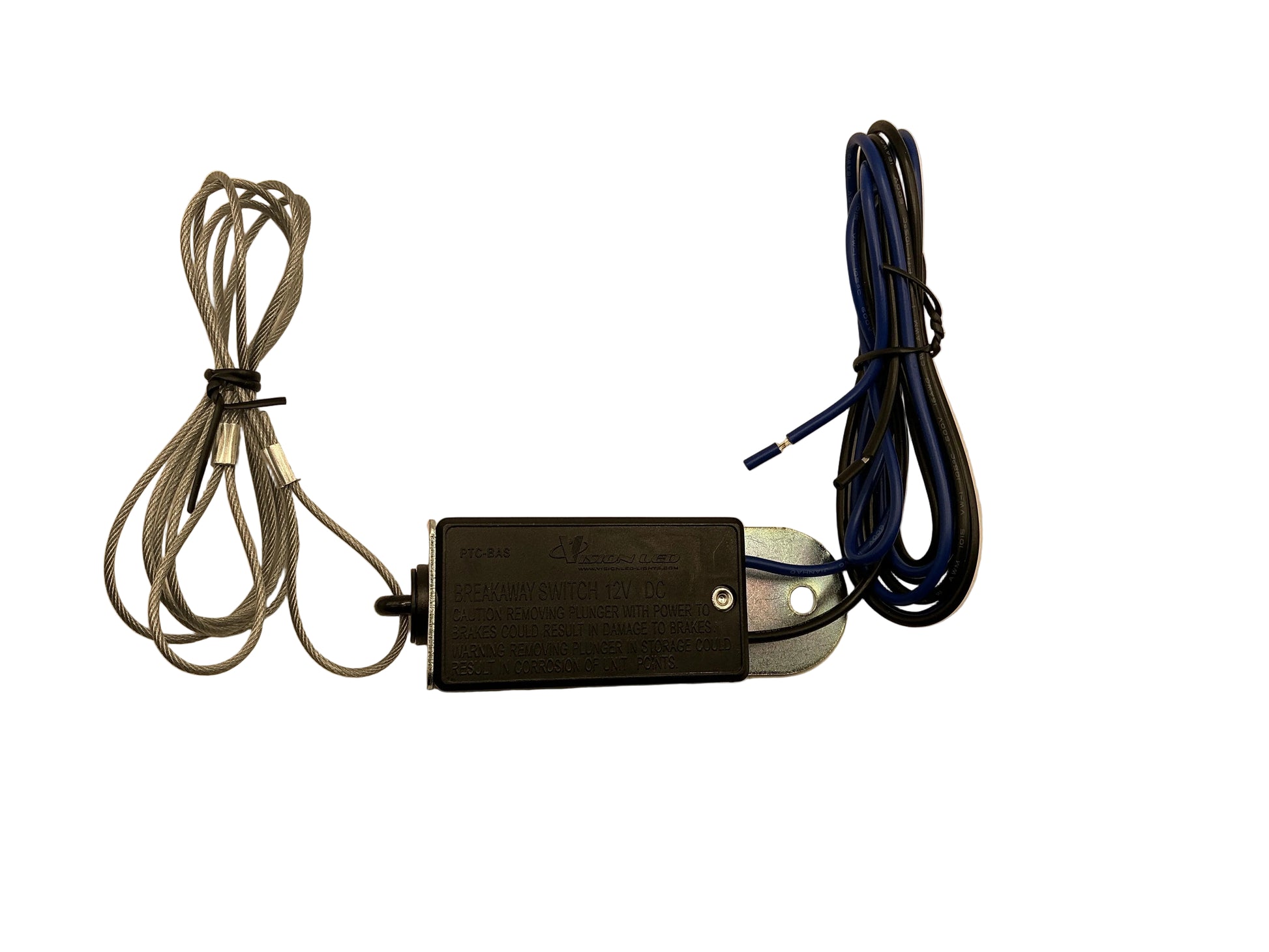

1. A small cable (breakaway cable) is attached between the trailer and the tow vehicle.
2. This cable is connected to a switch inside the breakaway kit.
3. If the trailer separates:
   • The cable is pulled tight and yanks a pin out of the switch.
   • This action closes the circuit.
4. A built-in battery in the kit sends power to the trailer’s electric brake system.
5. The brakes engage automatically, slowing and stopping the trailer.

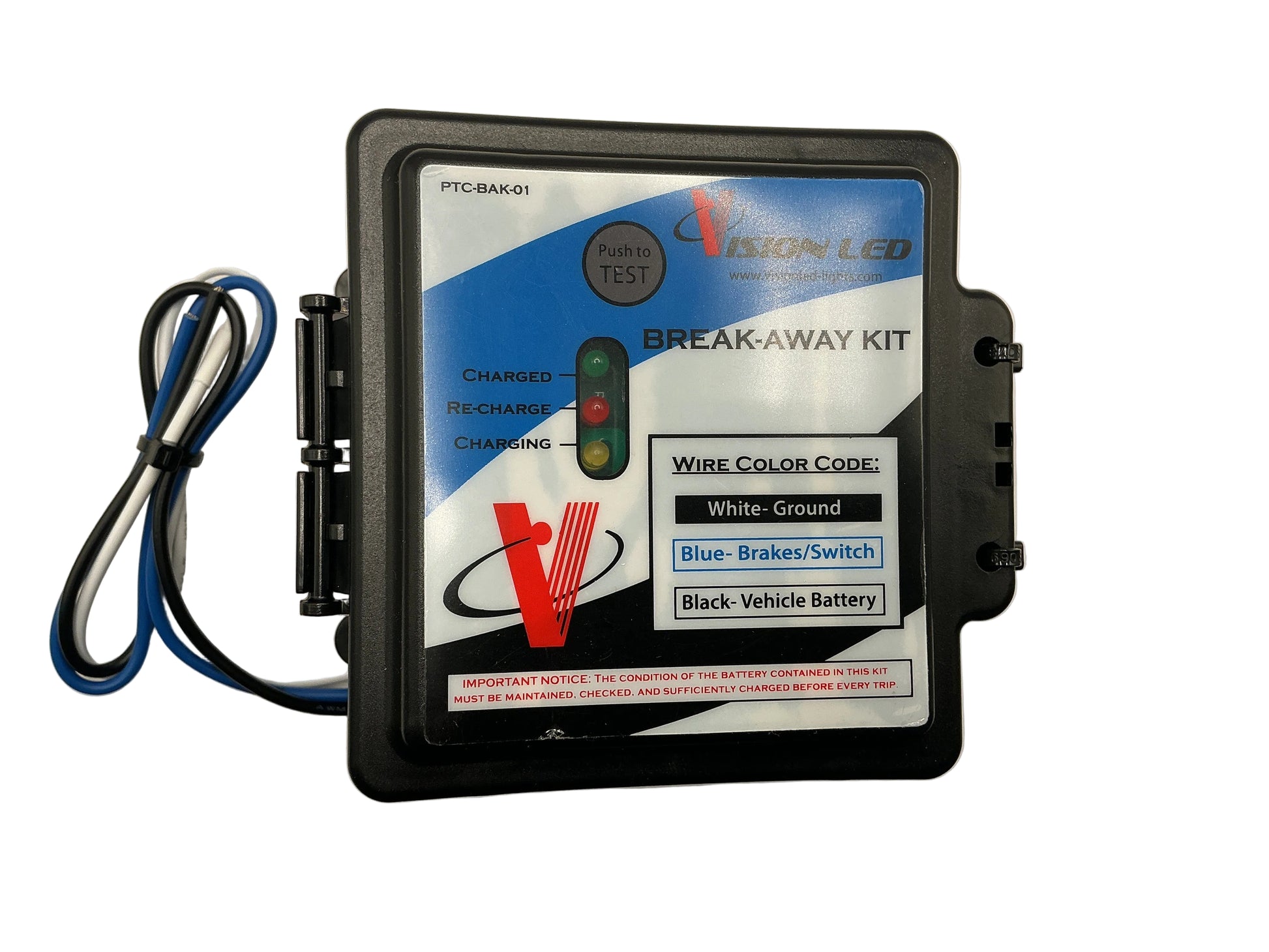

🔋 What “VLED” Refers To

“VLED” typically indicates that the kit includes a Voltage LED indicator:

• It shows the battery status of the breakaway system.
• Helps ensure the battery is charged and ready.
• Some models use LEDs to indicate:
  • Charged / OK
  • Low battery
  • Charging status

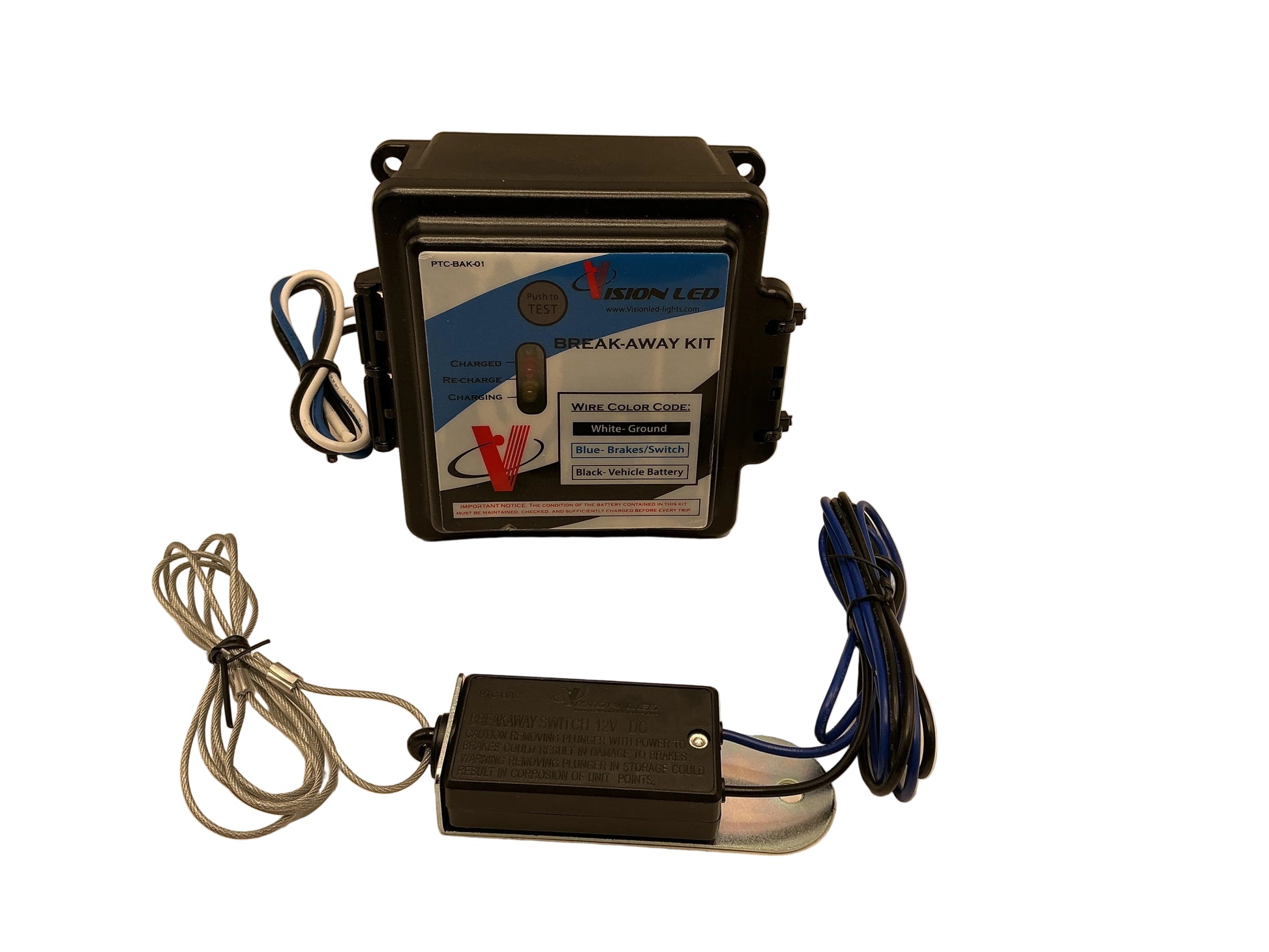

🧩 Key Components

• Breakaway switch with removable pin
• Rechargeable battery (often 12V)
• Battery charger or charging circuit
• LED indicator (VLED)
• Wiring to trailer brakes

🚨 Why It Matters

• Required by law in many regions for trailers with electric brakes
• Prevents accidents caused by runaway trailers
• Adds an extra layer of safety beyond the hitch and safety chains
