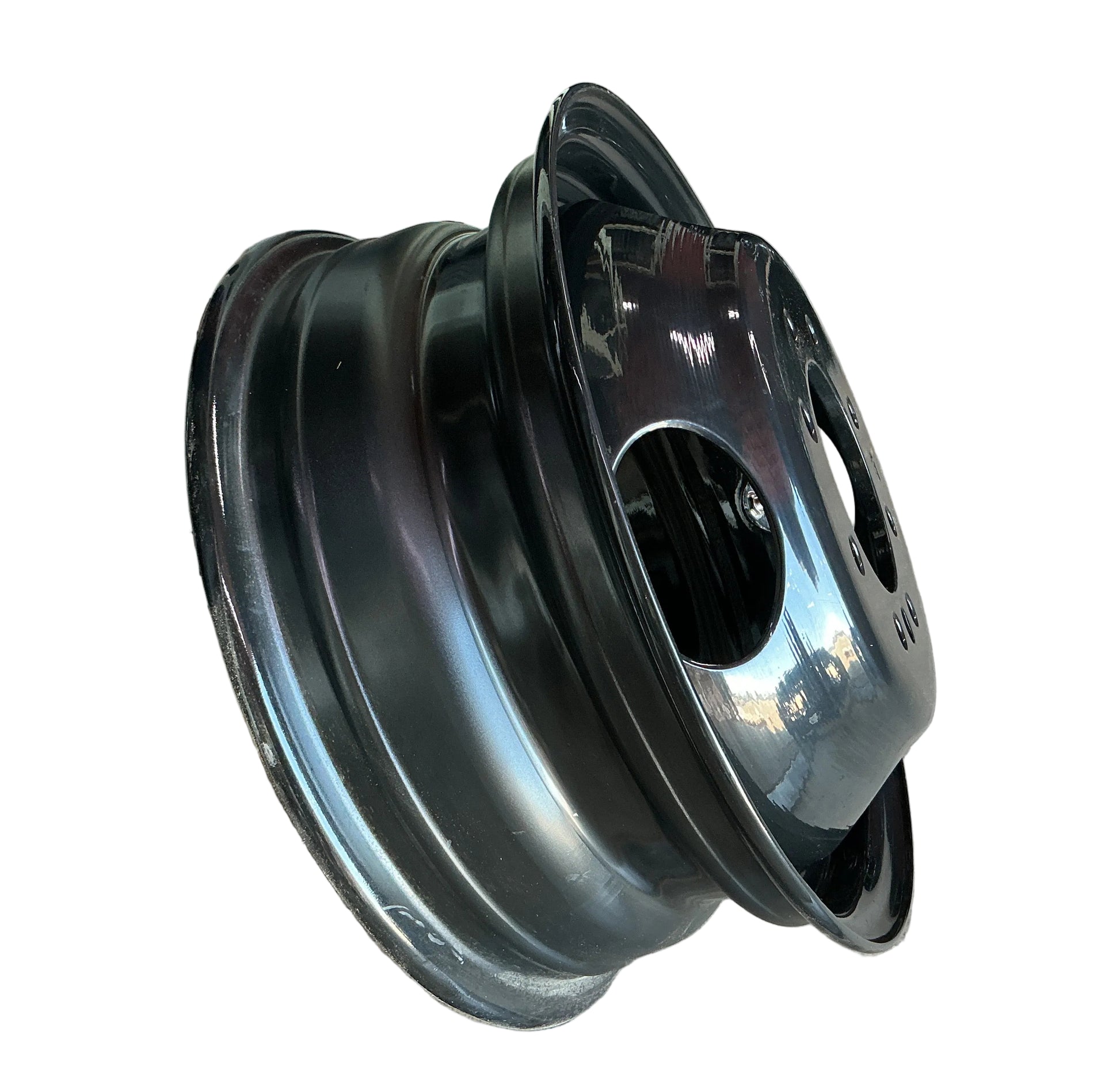

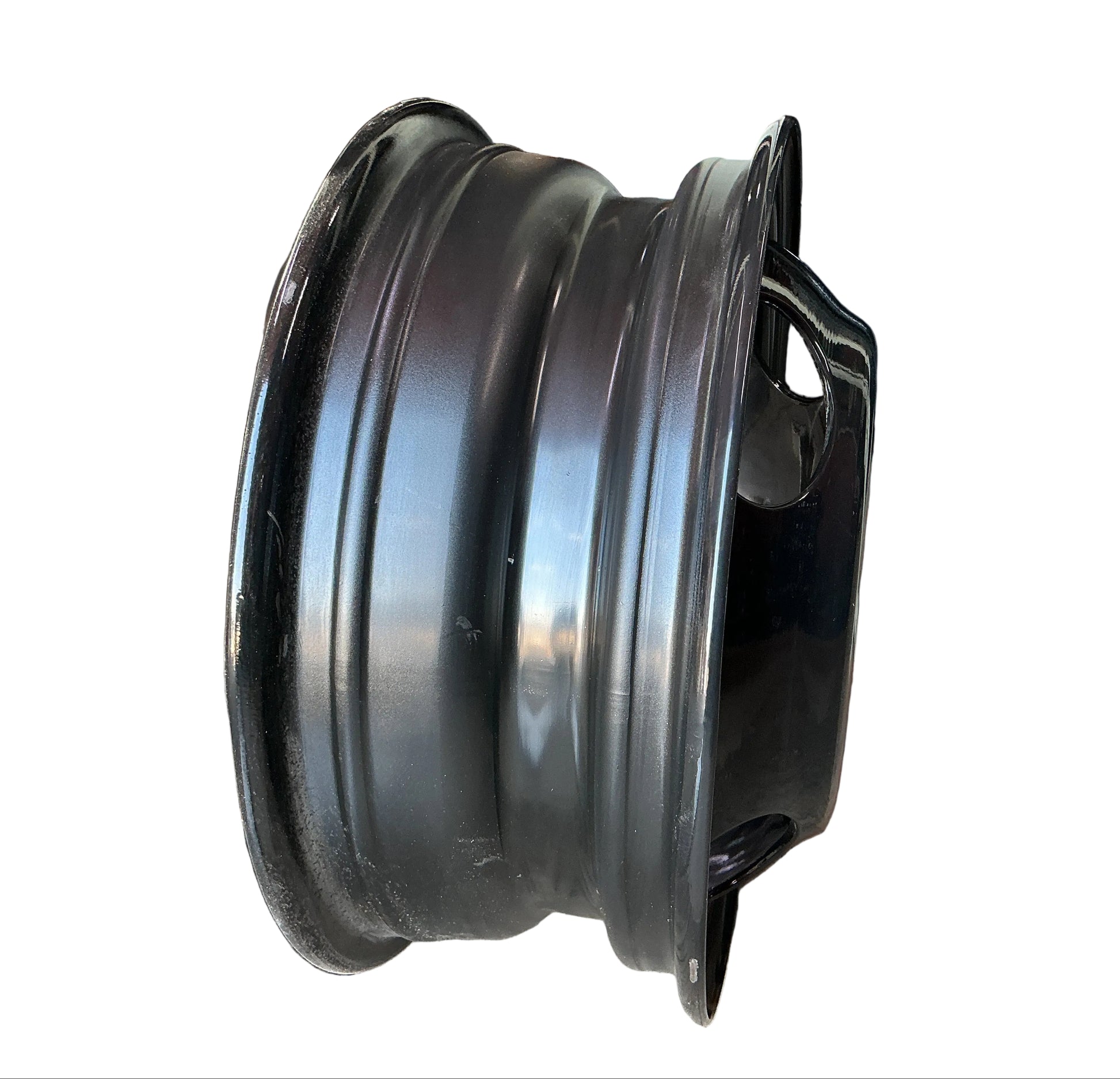

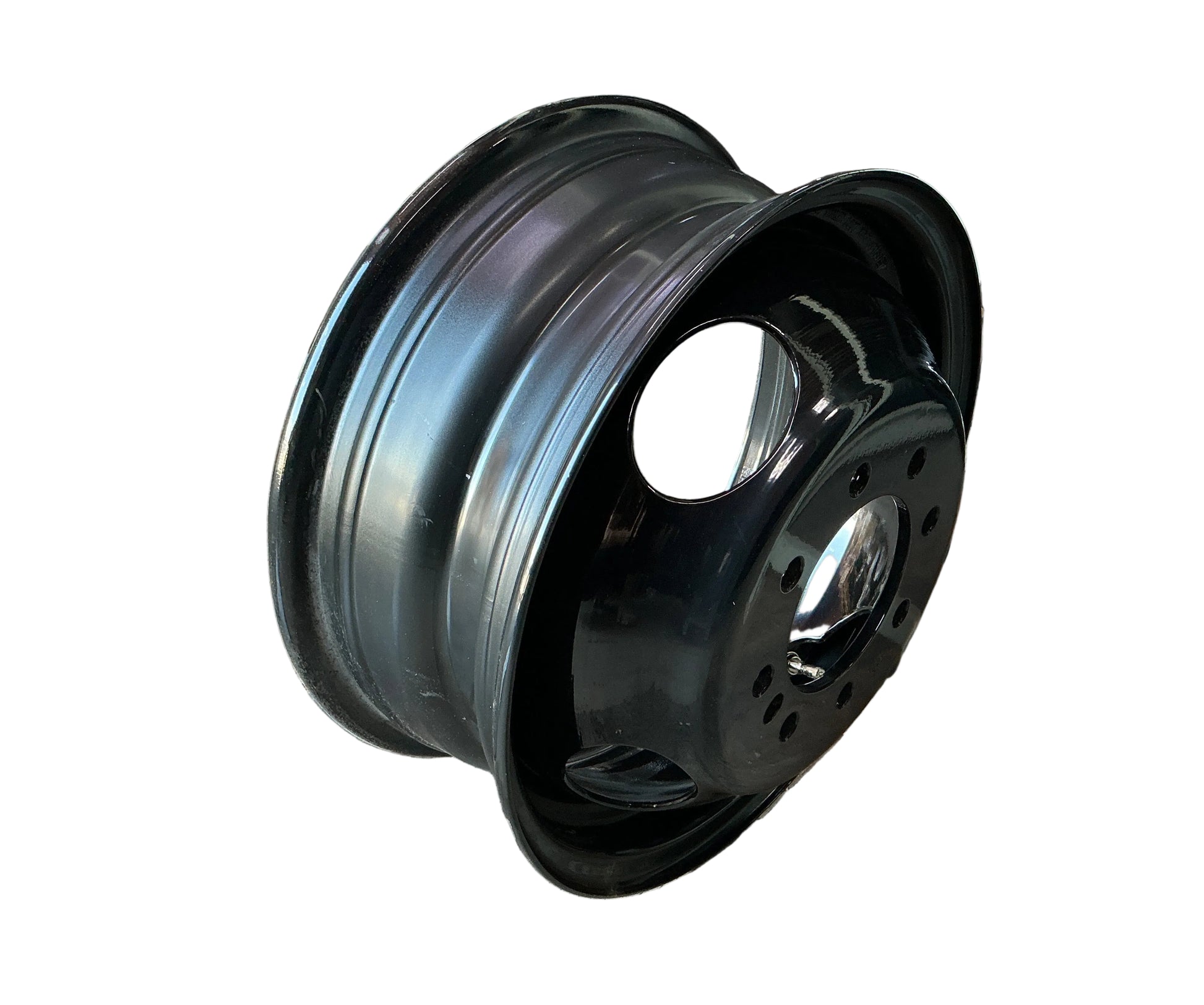

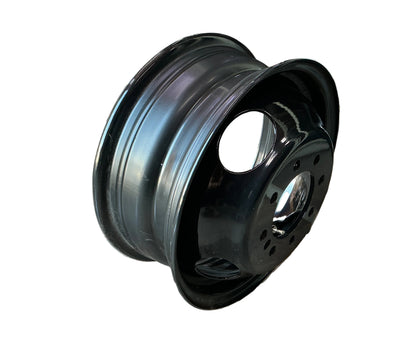

BLACK DUAL 16X6 8ON6.5 4.77"CB

BLACK DUAL 16X6 8ON6.5 4.77" CB is a description of a heavy-duty steel wheel. Here's what each part means:

• Black – Finished with a black powder coat for corrosion resistance and a clean appearance.
• Dual – Designed for dual-wheel (dually) applications, where two wheels are mounted side by side on the same axle.
• 16x6 – Wheel size: 16-inch diameter and 6-inch width.

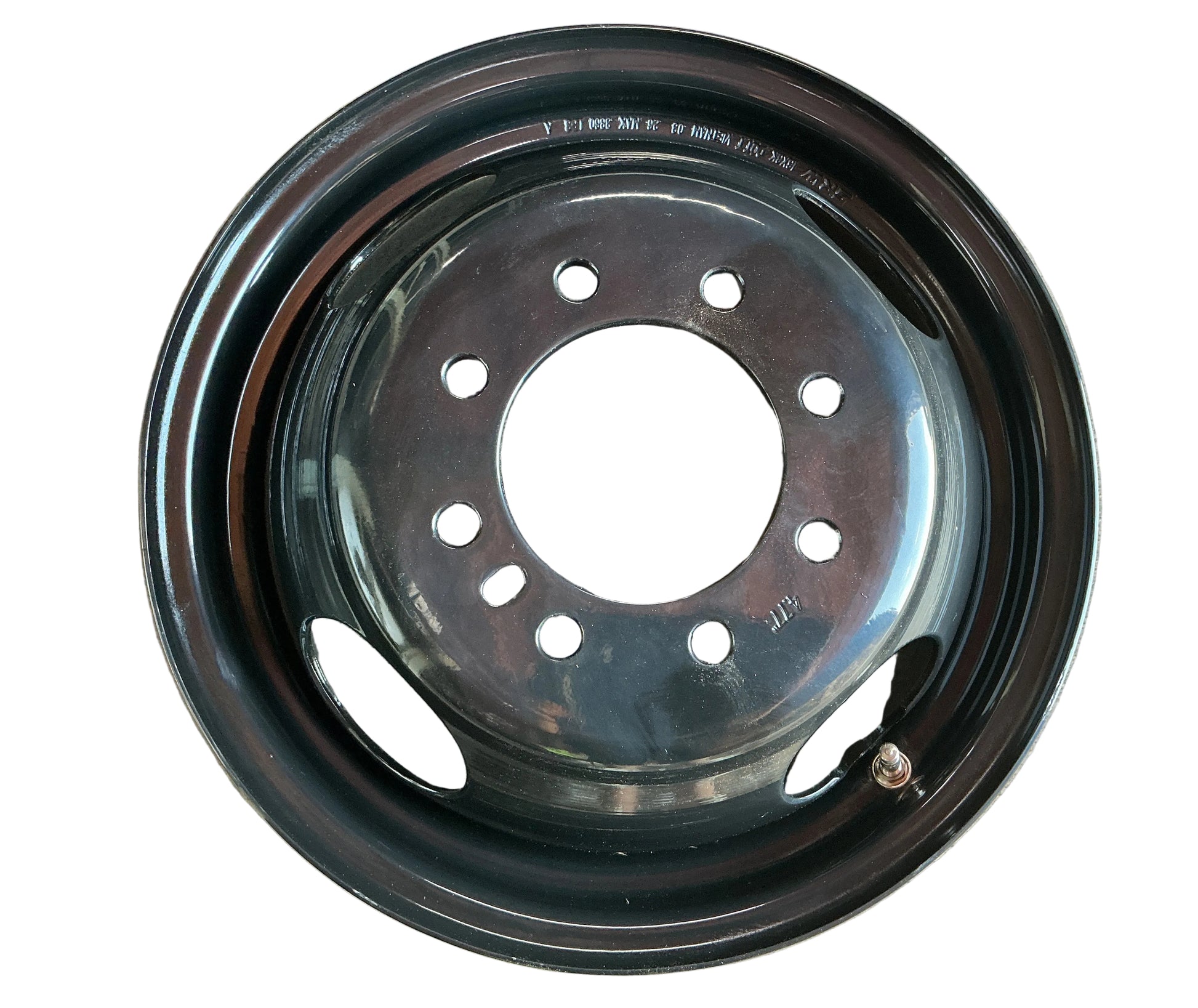

• 8 on 6.5 – Bolt pattern with 8 lug holes spaced on a 6.5-inch bolt circle (also written as 8×165.1 mm).
• 4.77" CB – Center Bore (Pilot Hole) measures 4.77 inches, meaning the wheel is hub-piloted and fits hubs with that pilot diameter.

Typical applications:

• Dually trucks
• Heavy-duty trailers
• Buses
• Commercial vehicles using an 8 on 6.5 bolt pattern and 4.77-inch hub pilot

Common features:

• Heavy-duty steel construction
• Black powder-coated finish over a corrosion-resistant primer
• Designed for use as an inner or outer wheel in dual-wheel setups (depending on its offset)
• Typical load capacity around 3,500–3,860 lbs per wheel, depending on the manufacturer and model
