8K 73HF 58SC D80N 865 ELEC STR OIL 5/8 US W/SPRINGS

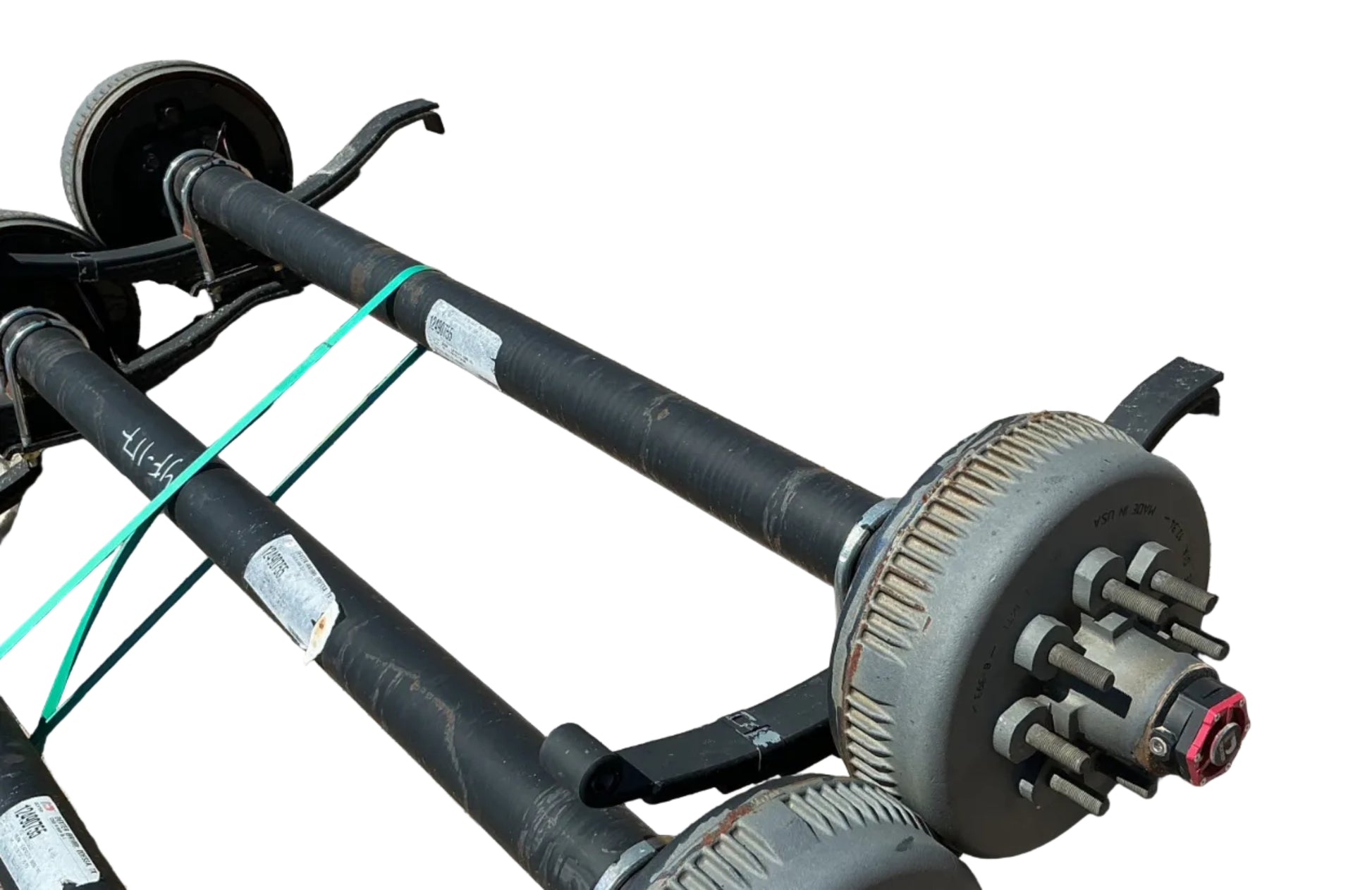

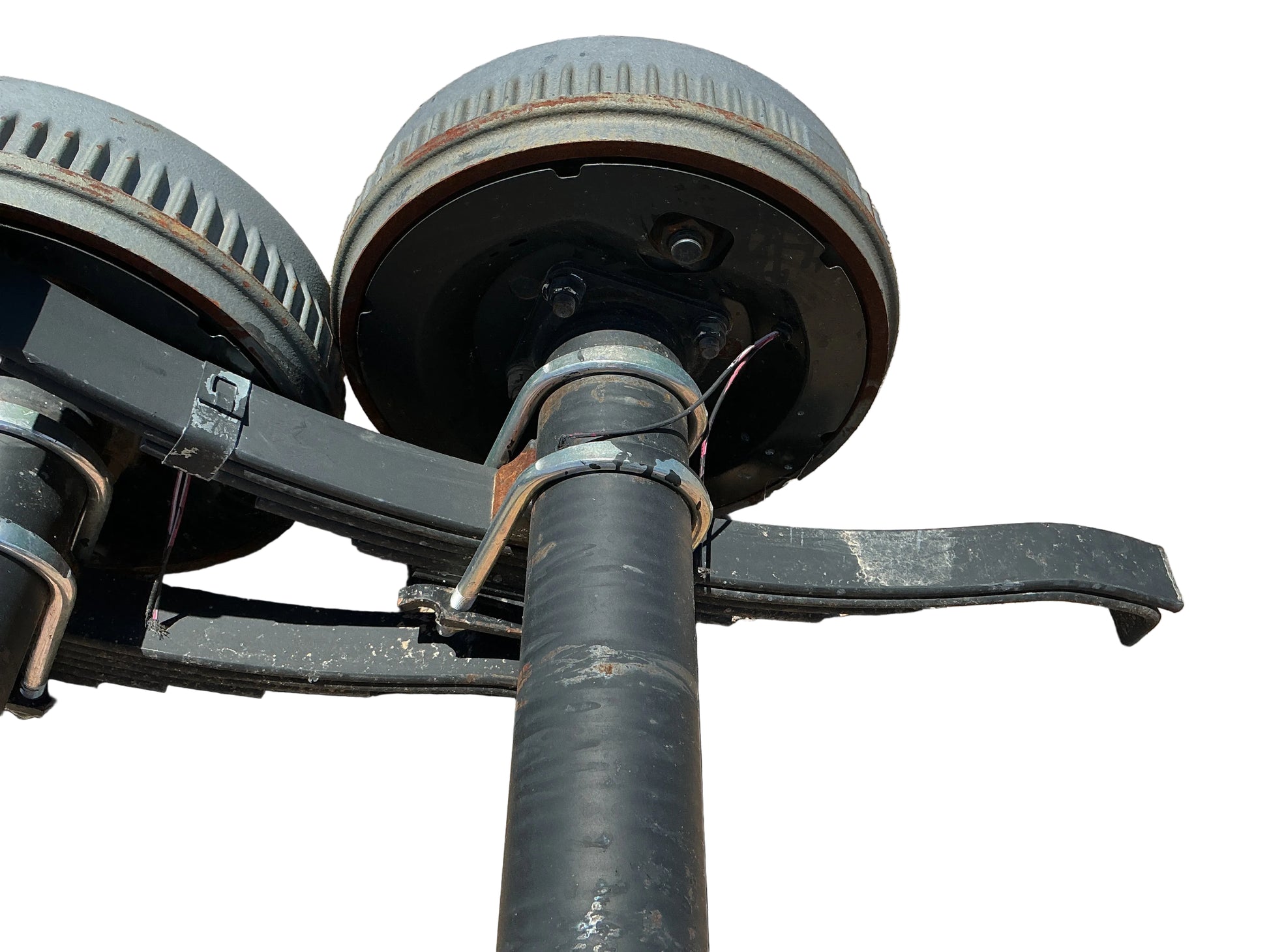

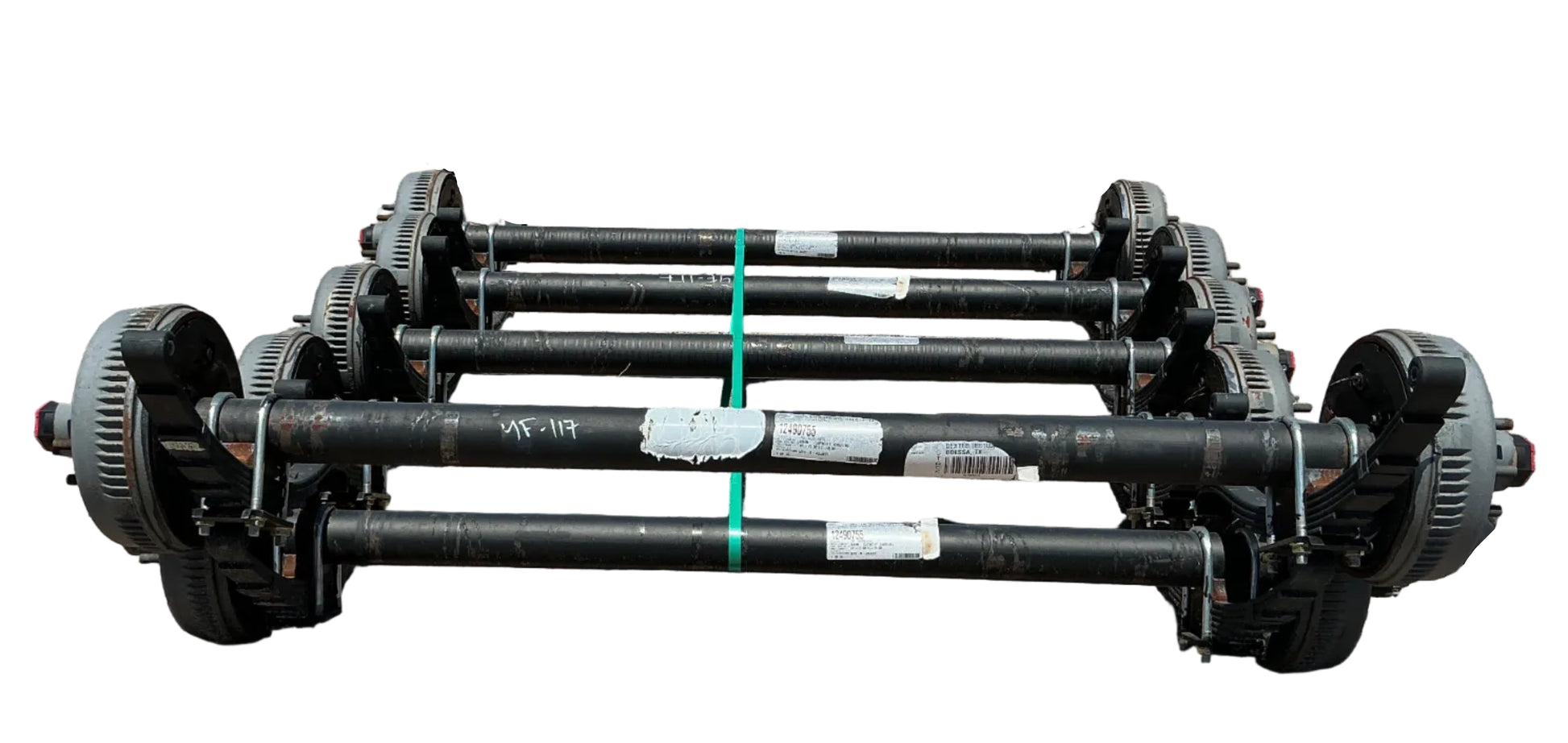

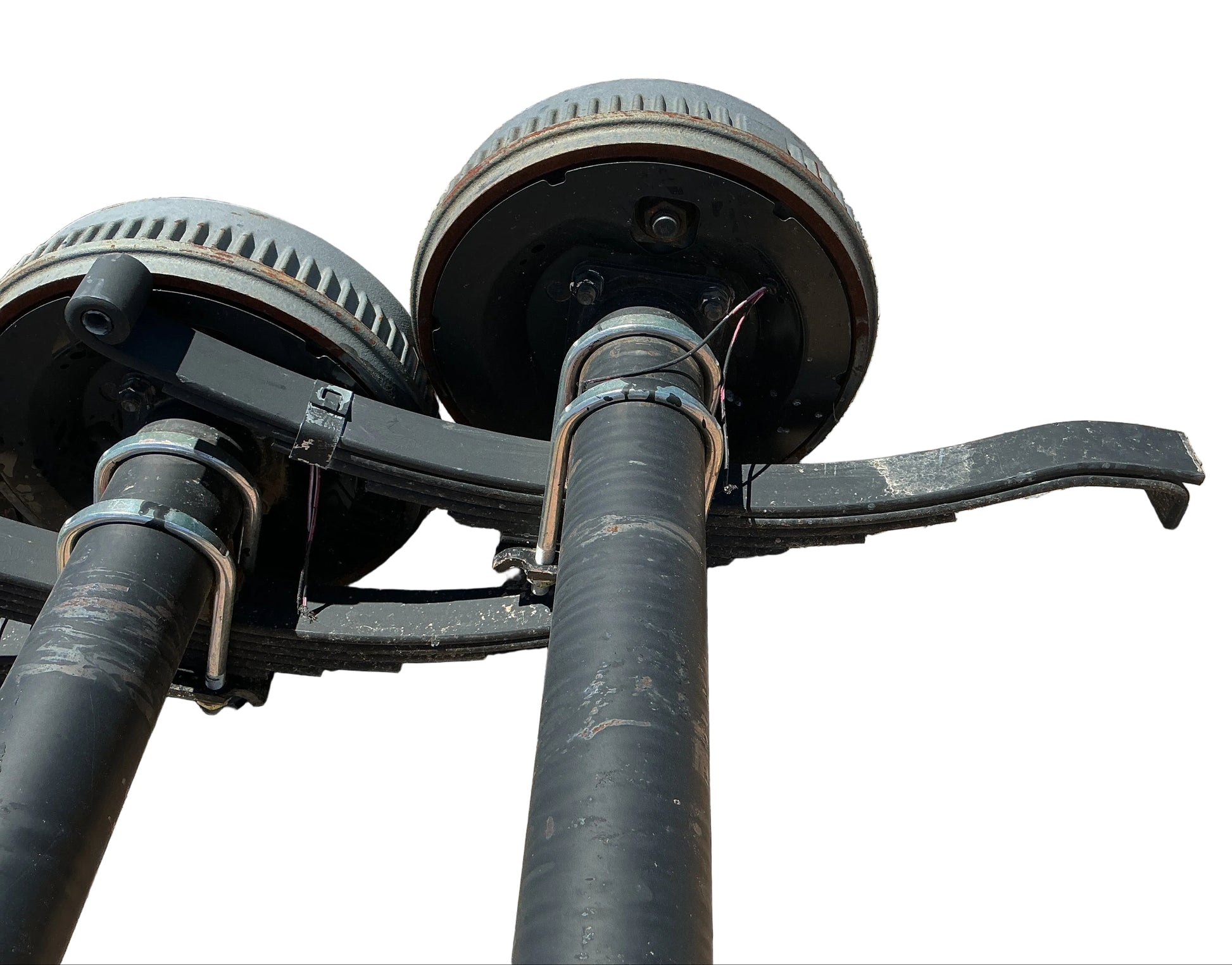

This 8,000-lb Electric Brake Axle is built for heavy-duty strength, durability, and smooth braking performance. Featuring a 73-inch hub face and 58-inch spring center, this straight axle comes equipped with electric brakes, oil bath hubs, and 8 on 6.5 hub drums (865) with 5/8" studs, ready for high-capacity trailer applications.

The oil bath hub system provides superior lubrication and cooler operation compared to traditional grease hubs, reducing maintenance and extending bearing life.

Key Features:

Capacity: 8,000 lbs (single axle)

Hub Face: 73"

Spring Center: 58"

Design: Straight beam (D80N)

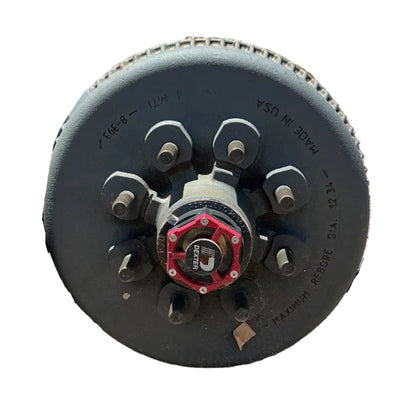

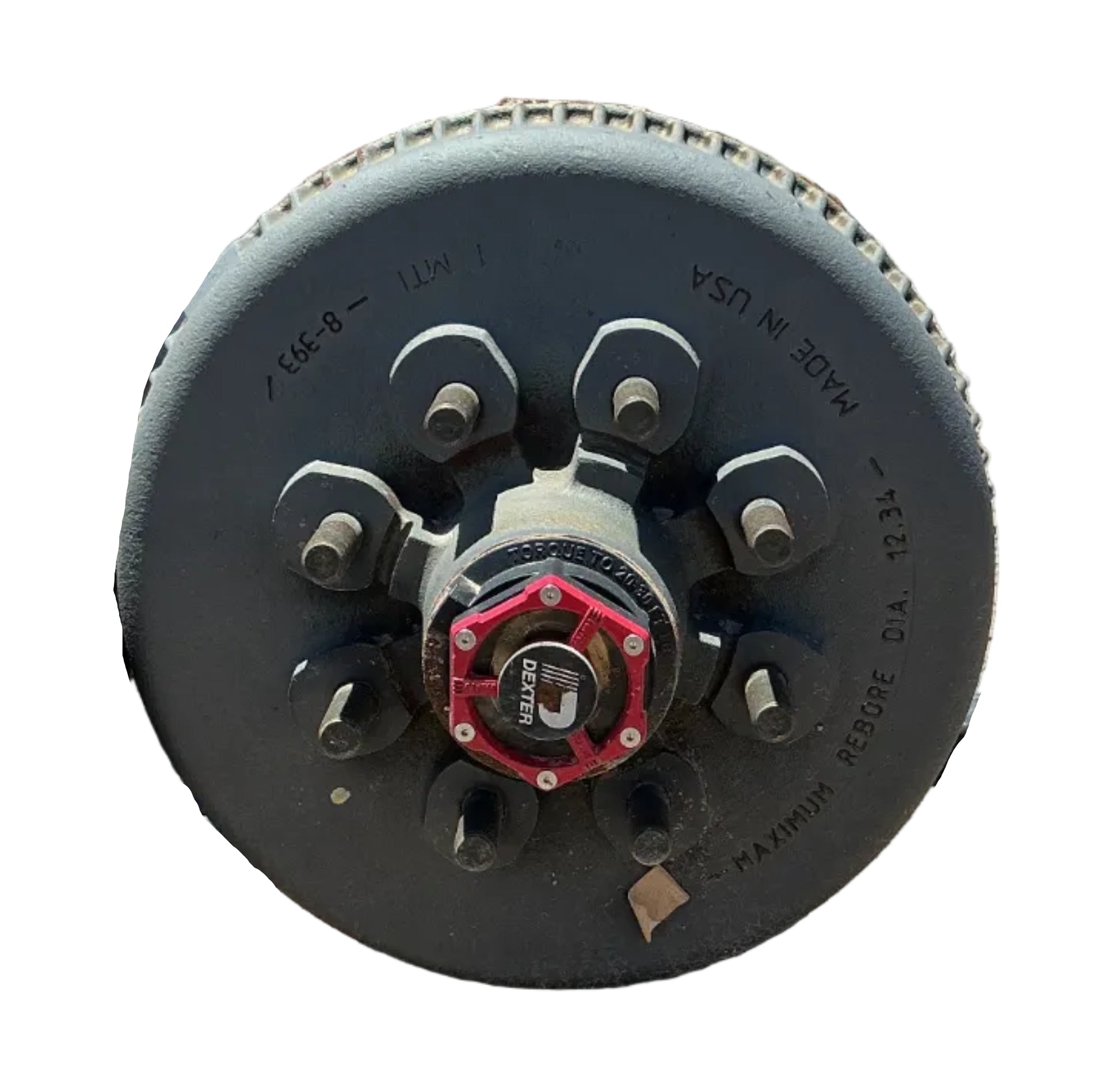

Includes electric brakes and hub drums (865)

Oil bath hubs for low maintenance and smooth operation

Bolt Pattern: 8 on 6.5" with 5/8" wheel studs

Heavy-duty steel construction for superior durability

Ideal for equipment, dump, flatbed, and car hauler trailers

Common Use: Perfect for heavy-duty commercial trailers requiring a compact-width 8K axle with electric brakes, oil bath hubs, and 5/8" studs for maximum towing strength and long-term dependability.
