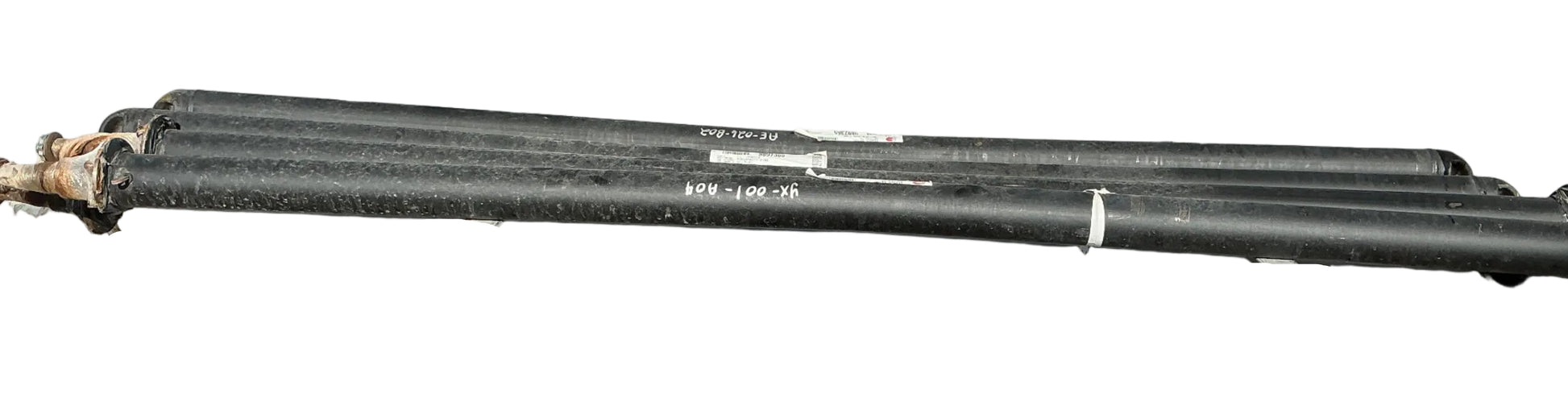

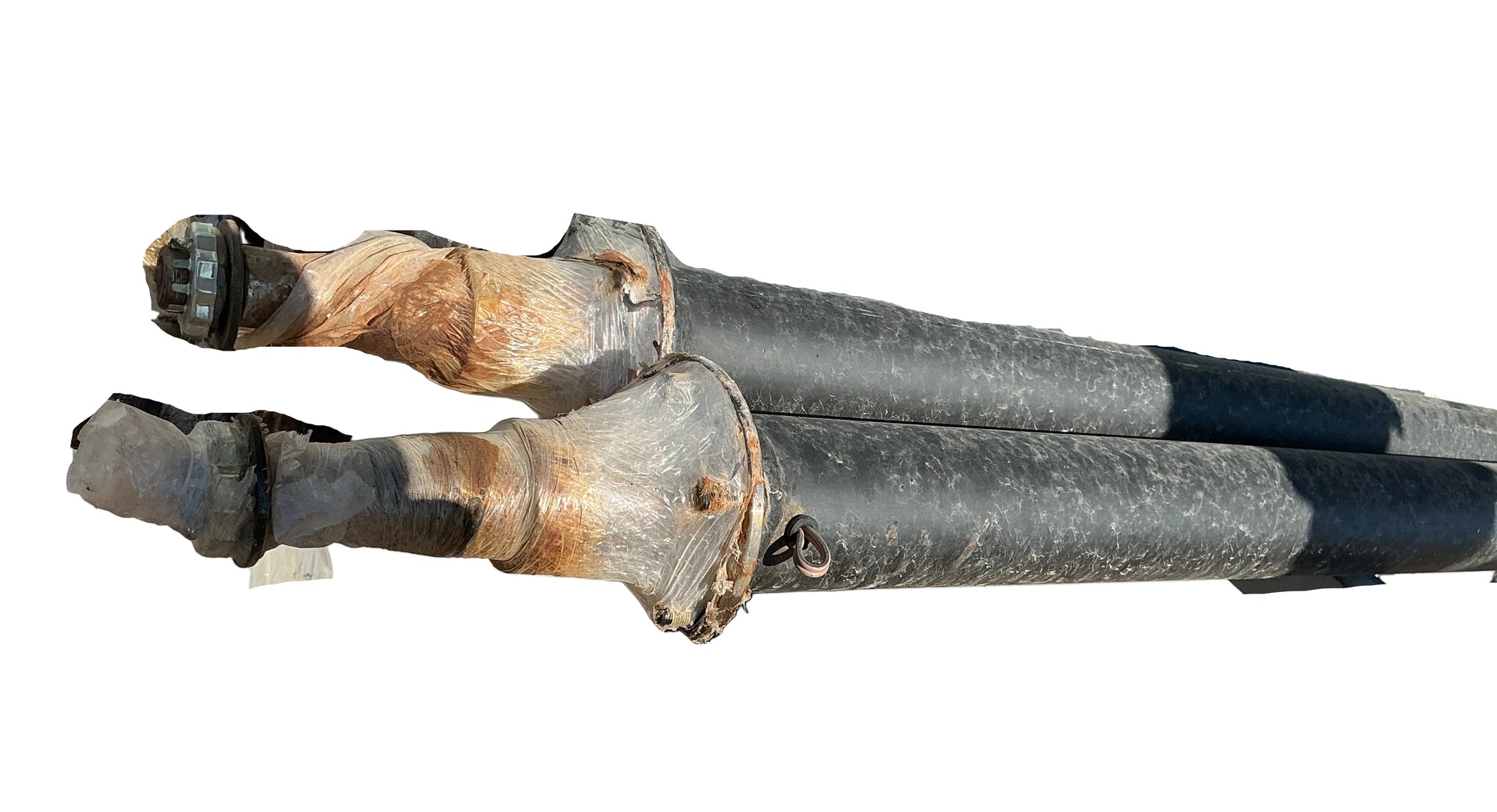

7K BEAM ONLY 91HF PL

• 7K = 7,000 lb axle capacity.
• BEAM ONLY = The axle tube/beam only, without hubs, brakes, spindles, or other running gear components.
• 91HF = Typically indicates a 91-inch hub-face measurement (manufacturer-specific abbreviation).
• PL = Often denotes a plain beam or a particular beam configuration/designation used by the supplier.

Function of a 7K Beam-Only Axle

The axle beam serves several critical functions:

• Supports Trailer Weight: Carries the load transferred from the trailer frame to the wheels.
• Maintains Wheel Alignment: Keeps the wheels properly positioned for stable towing and even tire wear.
• Transfers Loads: Distributes vertical, lateral, and braking forces between the wheels and trailer frame.
• Provides Mounting Surface: Allows attachment of suspension components, brake assemblies, hubs, and wheel-end hardware.
• Absorbs Road Forces: Works with the suspension system to withstand impacts, vibration, and dynamic loading during travel.

Typical Applications

A 7K beam axle is commonly used on:

• Equipment trailers
• Car haulers
• Utility trailers
• Dump trailers
• Livestock trailers
• Enclosed cargo trailers

Key Specifications

Typical features may include:

• 7,000 lb Gross Axle Weight Rating (GAWR)
• Round or square steel axle tube
• Spring-seat or torsion-arm mounting configurations
• Electric brake compatibility
• Various hub-face and spring-center dimensions depending on trailer requirements
