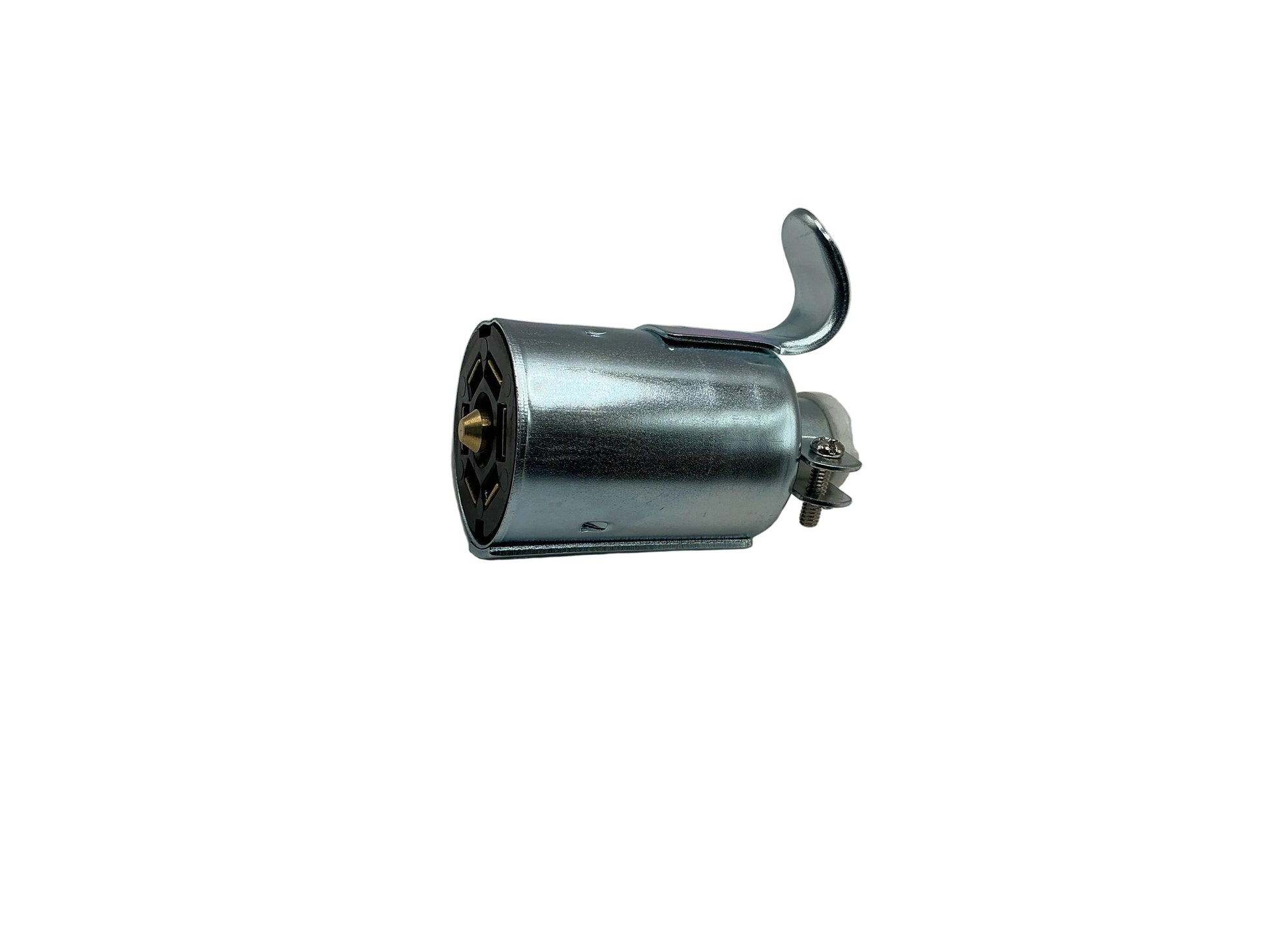

7 POLE-BLADE, TRAILER END, METAL HOUSING-ZINC

A 7 pole-blade trailer end connector with a zinc metal housing is a standard electrical plug used to connect a towing vehicle to a trailer. It enables power and signal transmission for essential trailer functions like lights, brakes, and auxiliary power.

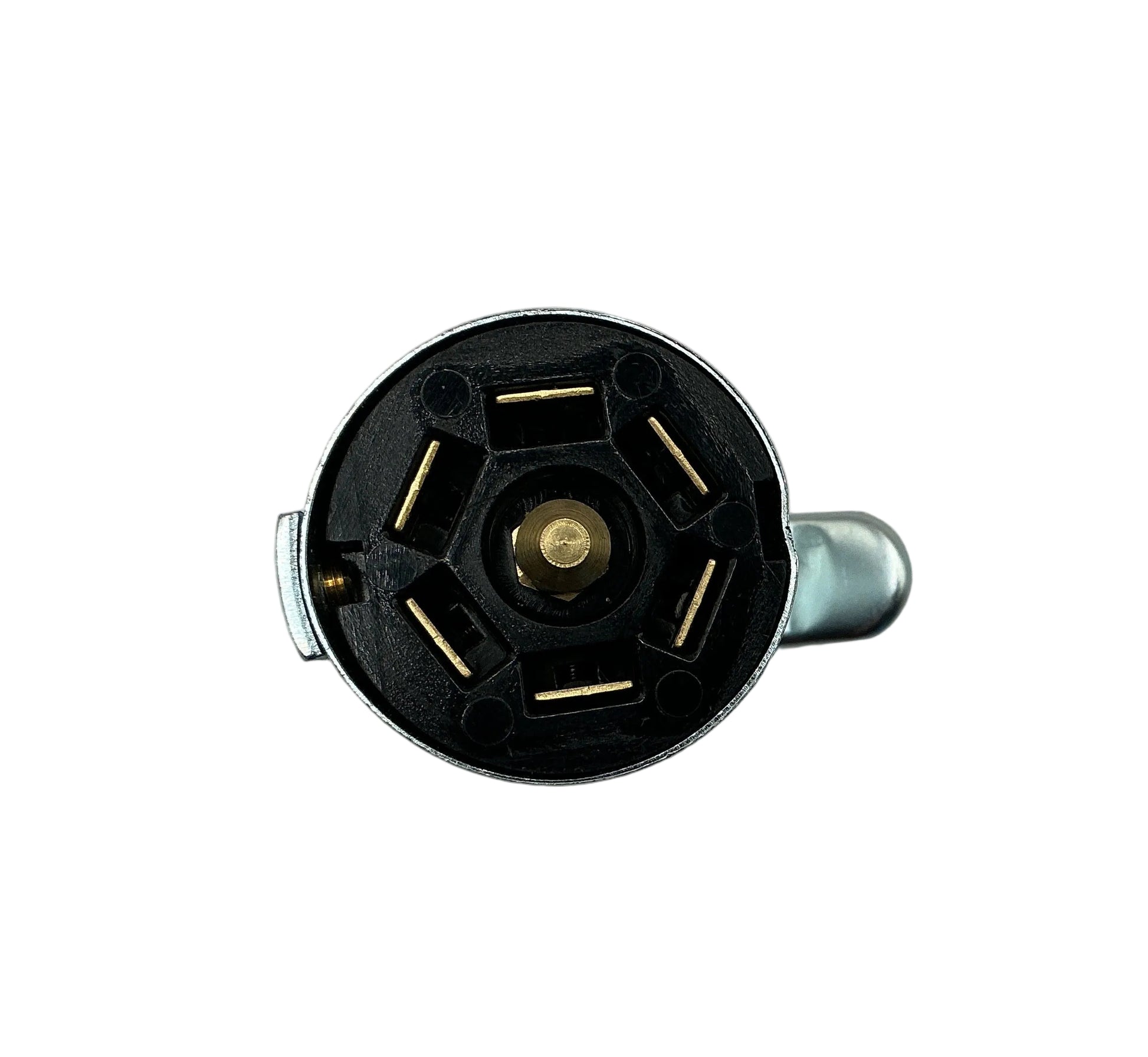

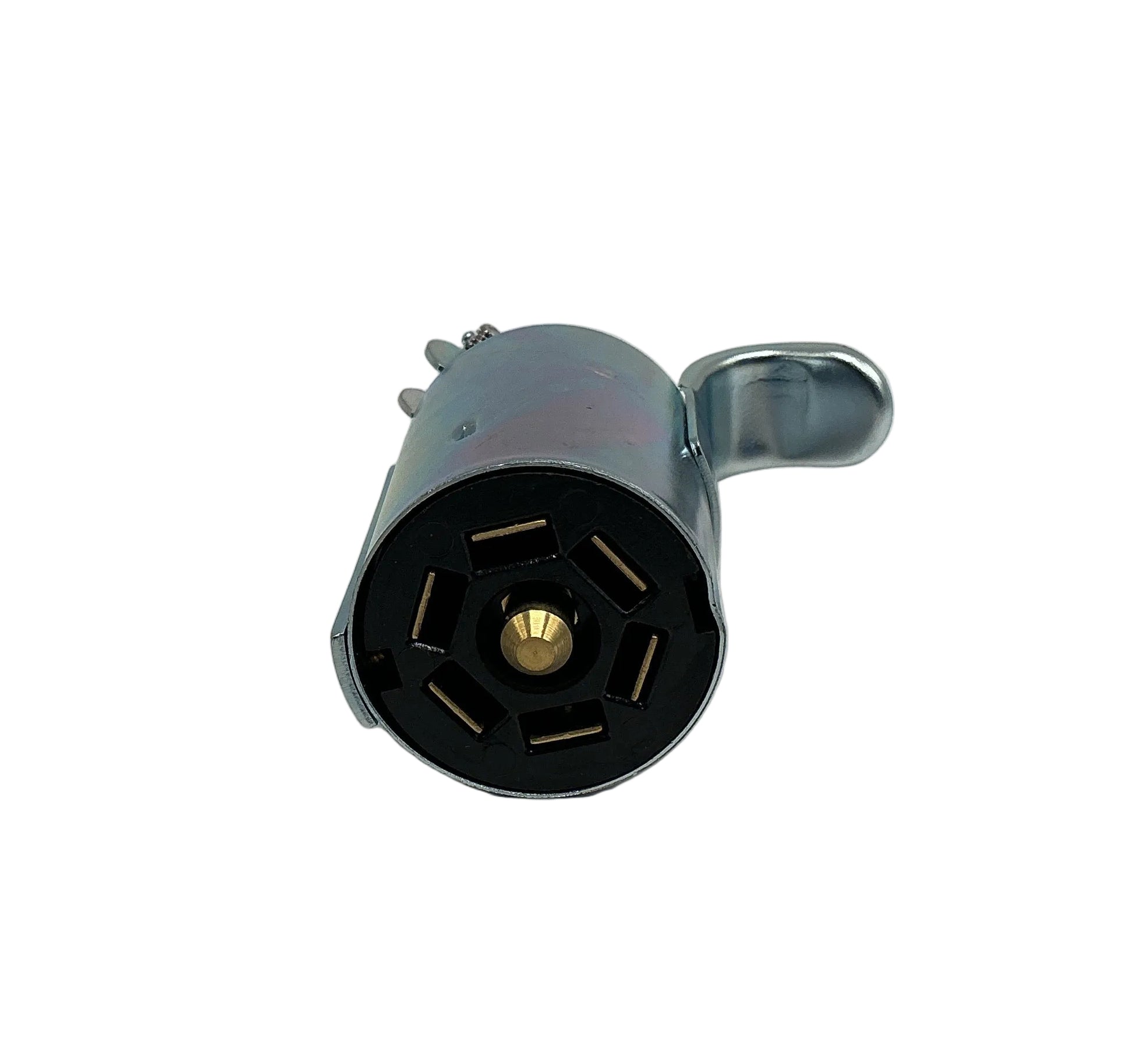

What “7 pole-blade” means

• 7 pole: It has seven electrical terminals (pins), each assigned to a specific circuit.
• Blade: The terminals are flat blade-style contacts (not round pins), which are common in modern trailer connectors in North America.

Typical functions of the 7 pins

Each pin carries a different electrical signal:

1. Ground (white) – completes the electrical circuit
2. Tail / running lights (brown) – powers rear marker lights
3. Left turn / brake (yellow)
4. Right turn / brake (green)
5. Electric brakes (blue) – activates trailer braking system
6. 12V auxiliary power (black/red) – charges trailer battery or powers accessories
7. Reverse / backup lights (purple) – activates when reversing

“Trailer end”

• This refers to the plug mounted on the trailer side, which connects into the socket on the towing vehicle.

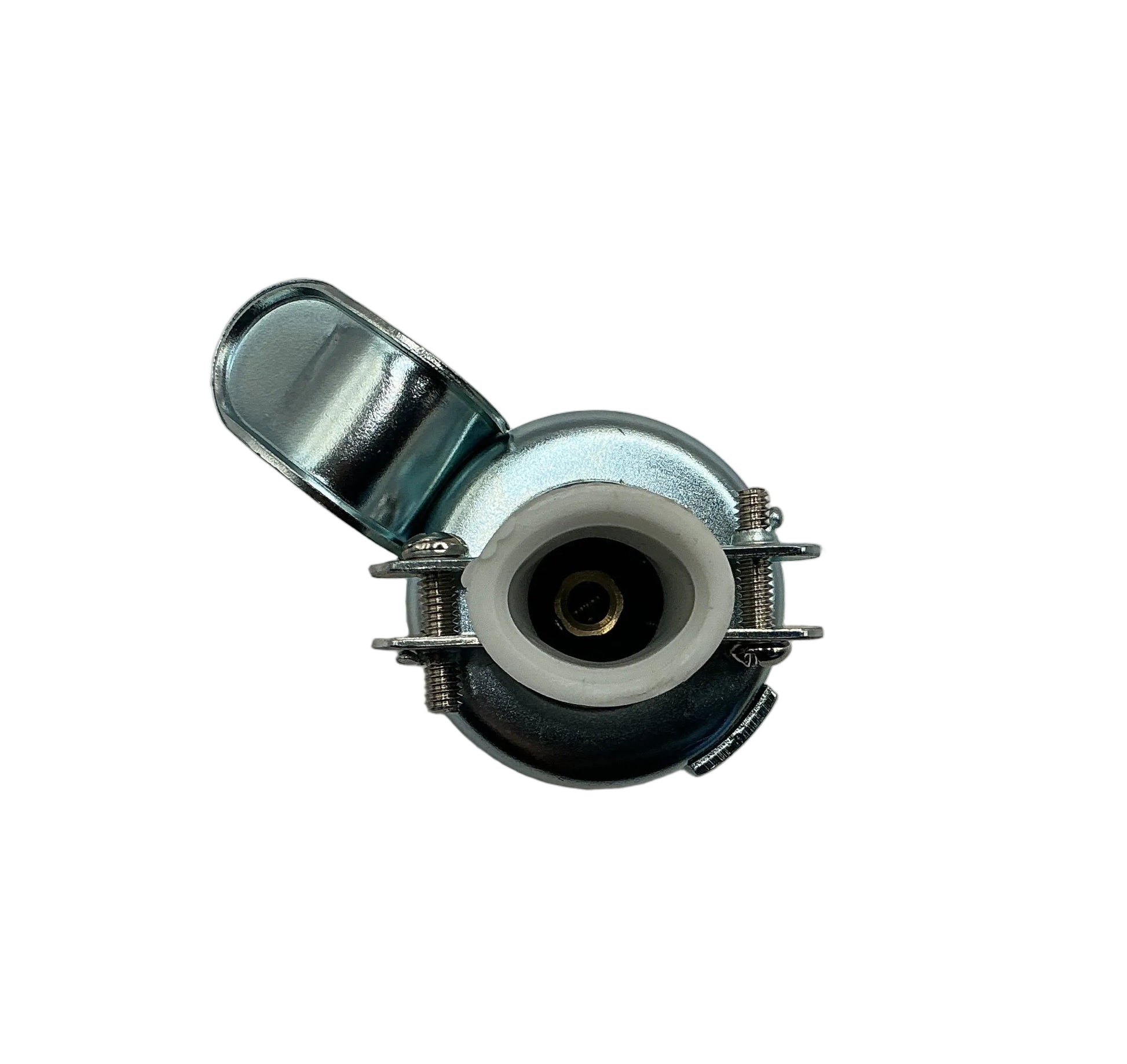

“Metal housing – zinc”

• The outer casing is made of zinc or zinc alloy, which:
  • Provides durability and impact resistance
  • Offers corrosion resistance (important for outdoor use)
  • Helps with longer lifespan compared to plastic housings

Overall function

The connector acts as a central interface that safely transfers electrical signals from the vehicle to the trailer so that:

• Lights synchronize with the towing vehicle
• Trailer brakes function properly
• Additional features (like interior lights or battery charging) work reliably

In short, it’s a robust, multi-function electrical connector designed for towing safety and compliance.
