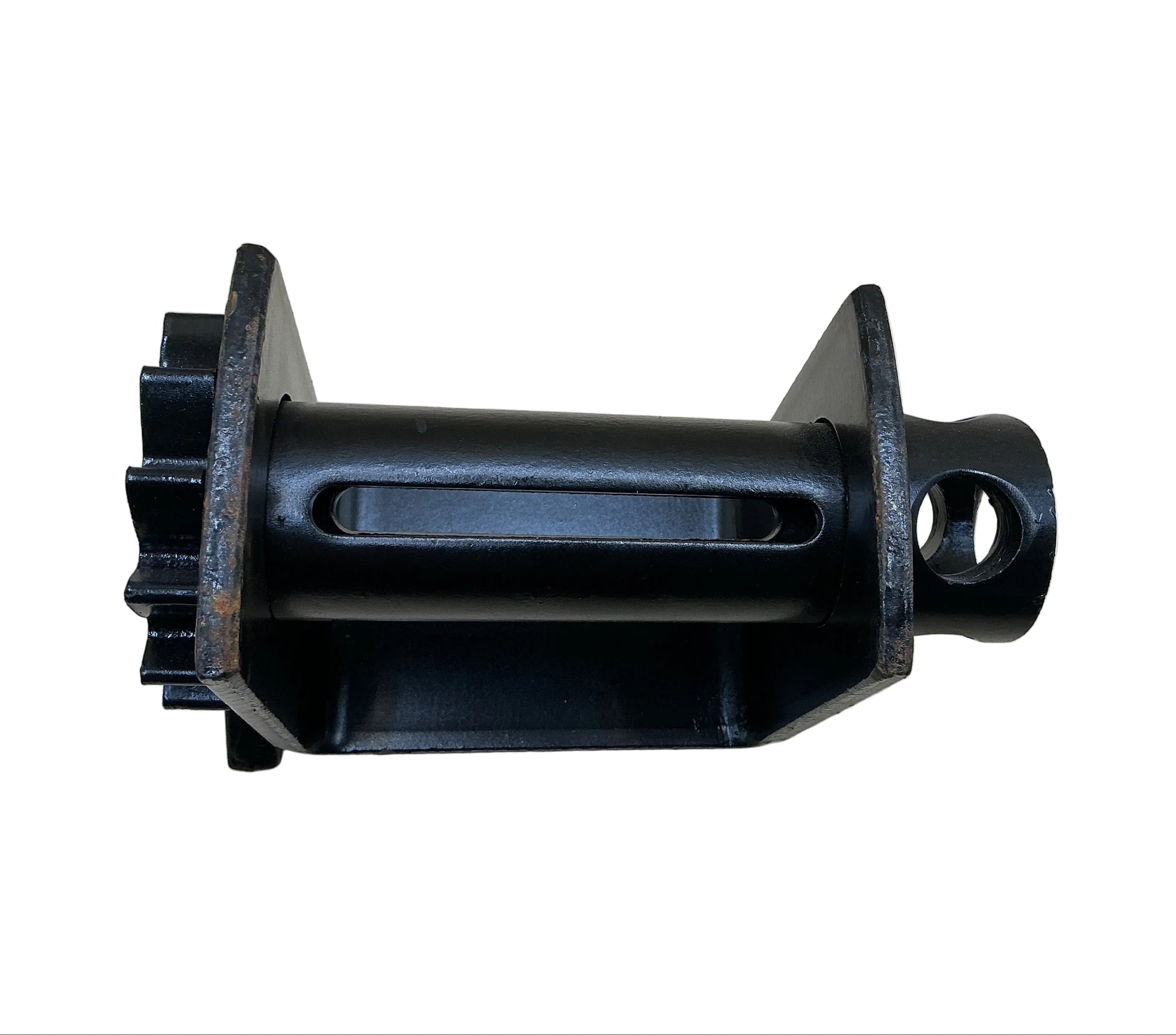

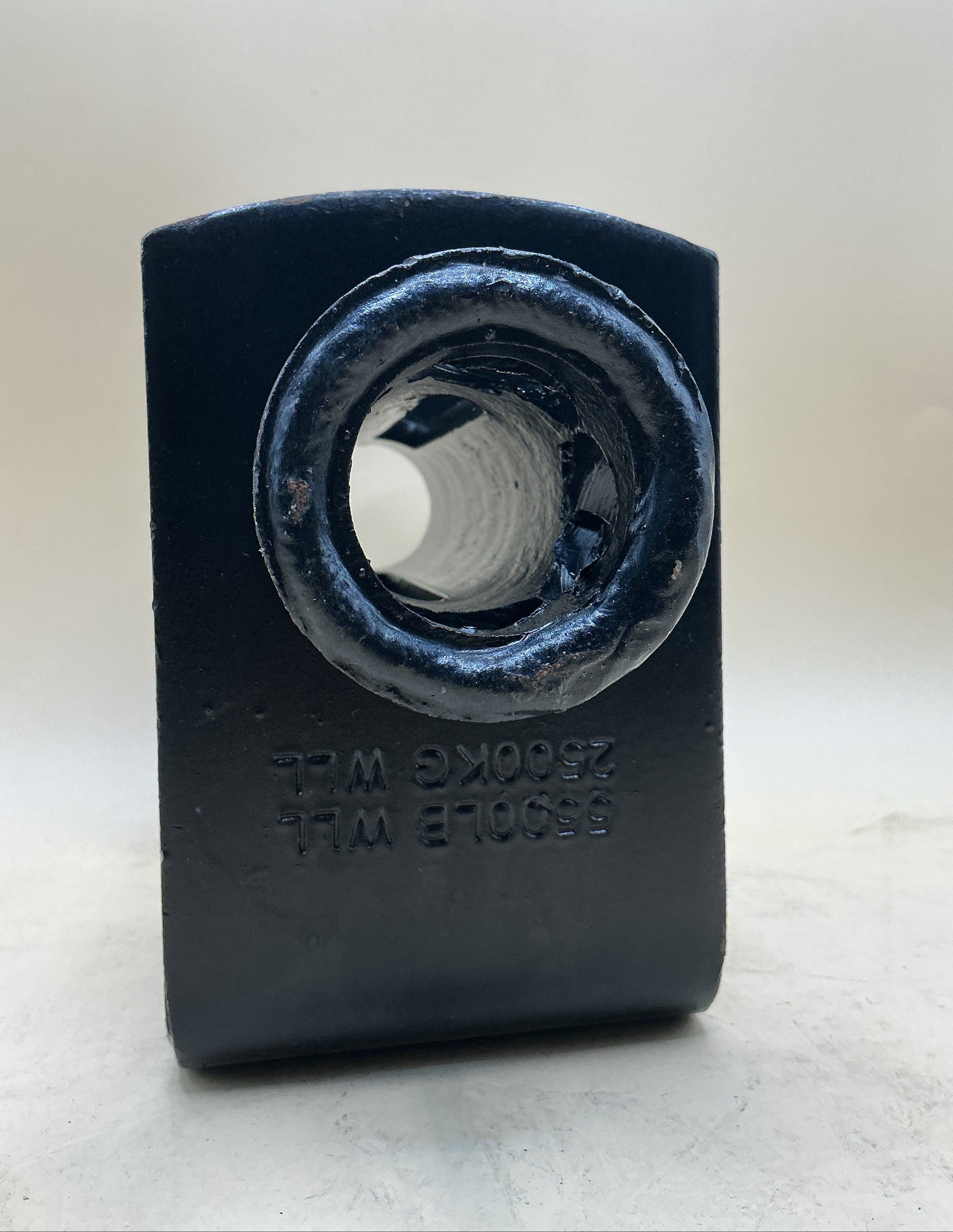

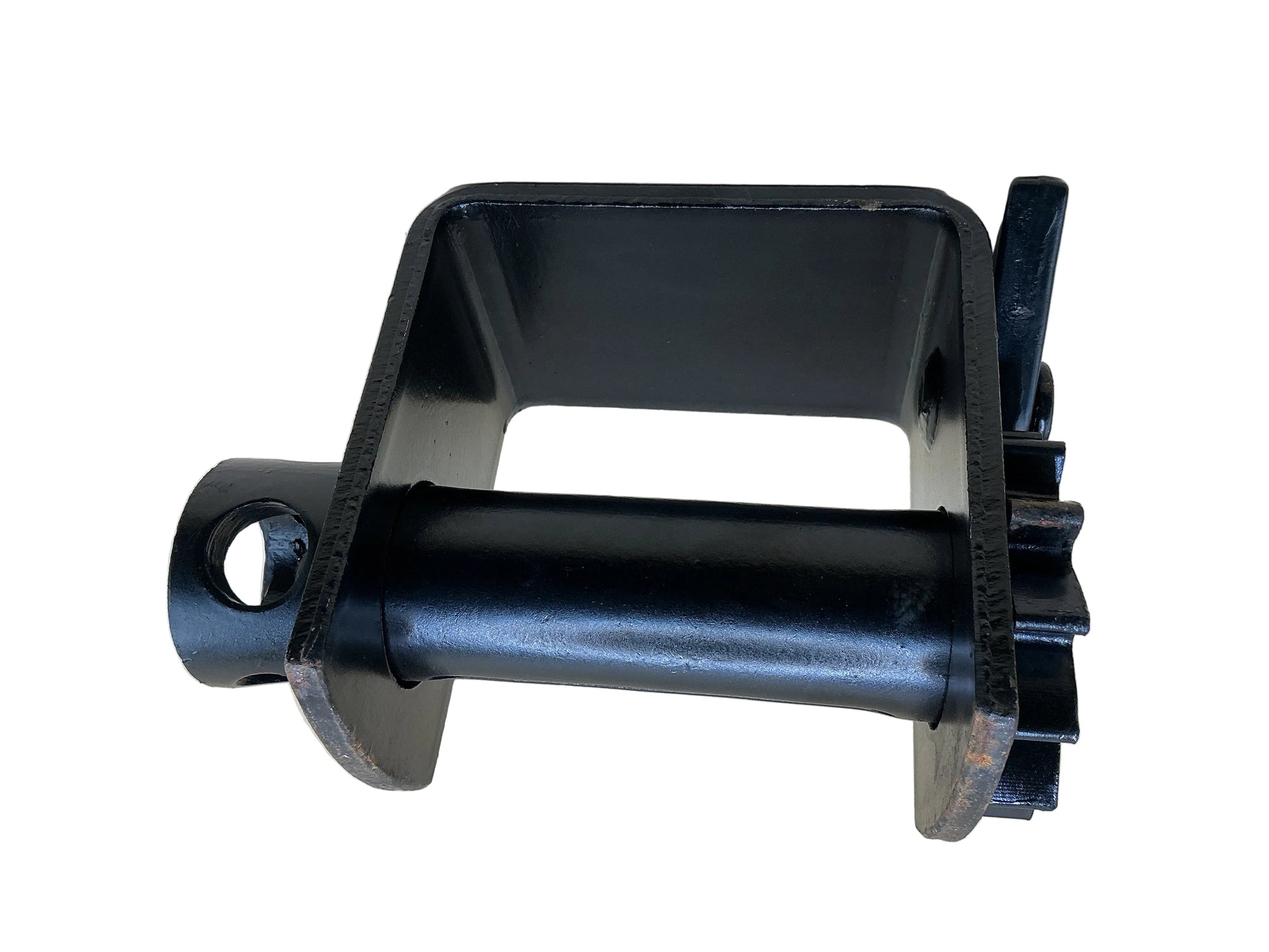

WELDED WINCH RATCHET

Function of a Welded Winch Ratchet

1. Load Retention

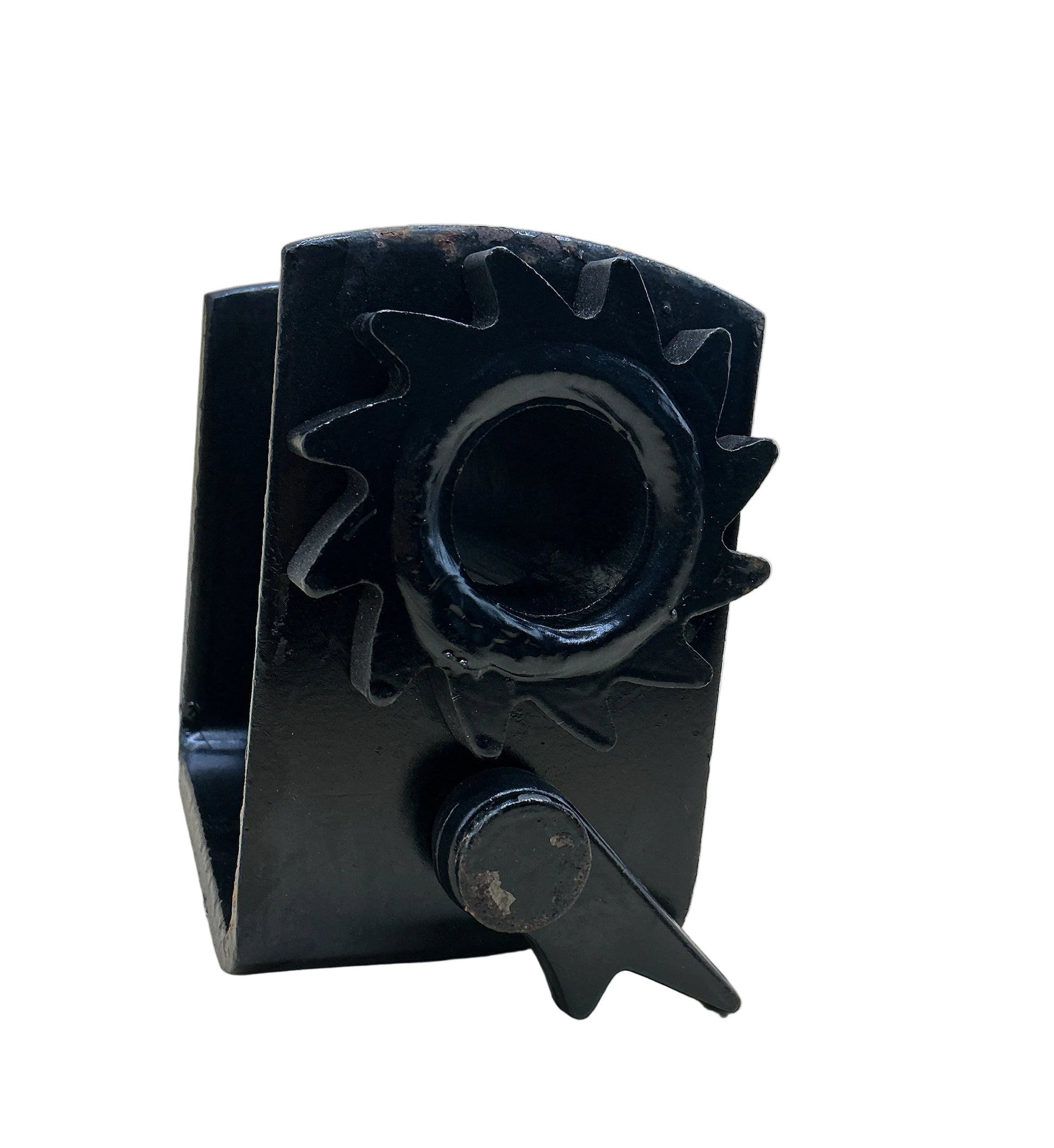

   • The ratchet mechanism engages with a toothed wheel attached to the winch drum.
   • A pawl (locking lever) drops into the teeth, preventing backward rotation.
   • This keeps the load securely in position when cranking stops.
2. Controlled Winding
   • Allows the winch drum to rotate freely in the winding direction.
   • Prevents accidental unwinding caused by load forces acting on the cable or strap.
3. Safety Enhancement
   • Reduces the risk of sudden load release.
   • Helps maintain tension during transportation, lifting, or pulling operations.
4. Structural Integrity
   • Because the ratchet assembly is welded directly to the winch frame, it provides a rigid, durable connection.
   • Welding minimizes movement, loosening, or misalignment that could occur with bolted components.

Typical Applications

• Trailer tie-down winches
• Flatbed cargo securement systems
• Utility and recovery equipment
• Industrial lifting and pulling devices
• Marine winches
