3.5K AXLE IDLER 79HF 00SC 5 ON 4.5 EZ LUBE

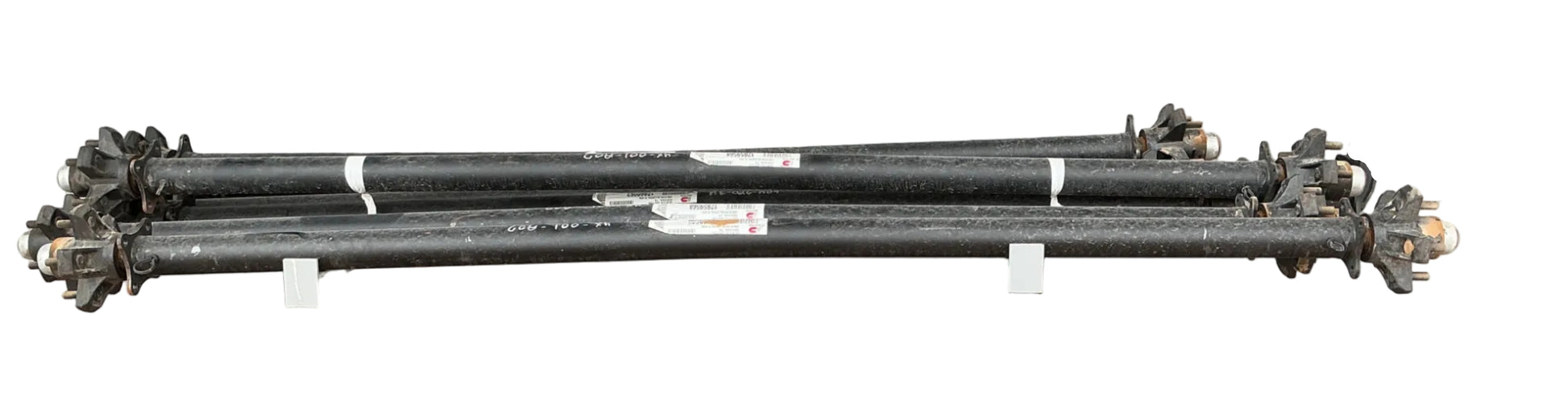

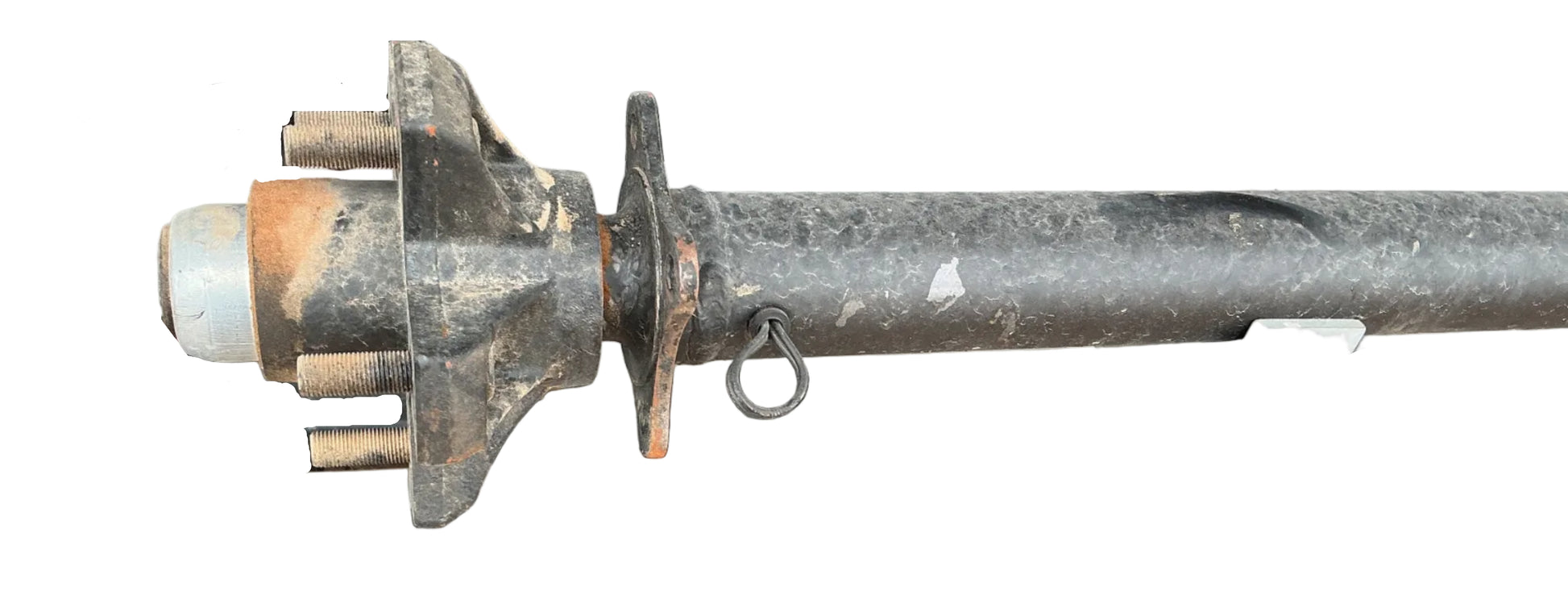

A 3.5K Axle Idler 79HF with 5 on 4.5 EZ-Lube is a trailer axle assembly designed for 3,500 lb gross axle capacity and commonly used on utility, cargo, landscape, and boat trailers.

Description

• Capacity: 3,500 lbs axle rating
• Type: Idler axle (no brakes installed)
• Hub Face (HF): 79 inches hub-face measurement
• Bolt Pattern: 5 on 4.5" (5 lug studs on a 4.5-inch bolt circle)
• Lubrication System: EZ-Lube spindle with grease zerk fitting for easy bearing maintenance without disassembling the hub
• Spindle Type: Typically #84 spindle
• Bearings:
  • Inner bearing: L68149
  • Outer bearing: L44649
• Stud Size: 1/2"-20 wheel studs
• Hub Capacity: Approximately 1,750 lbs per hub (3,500 lbs per axle)

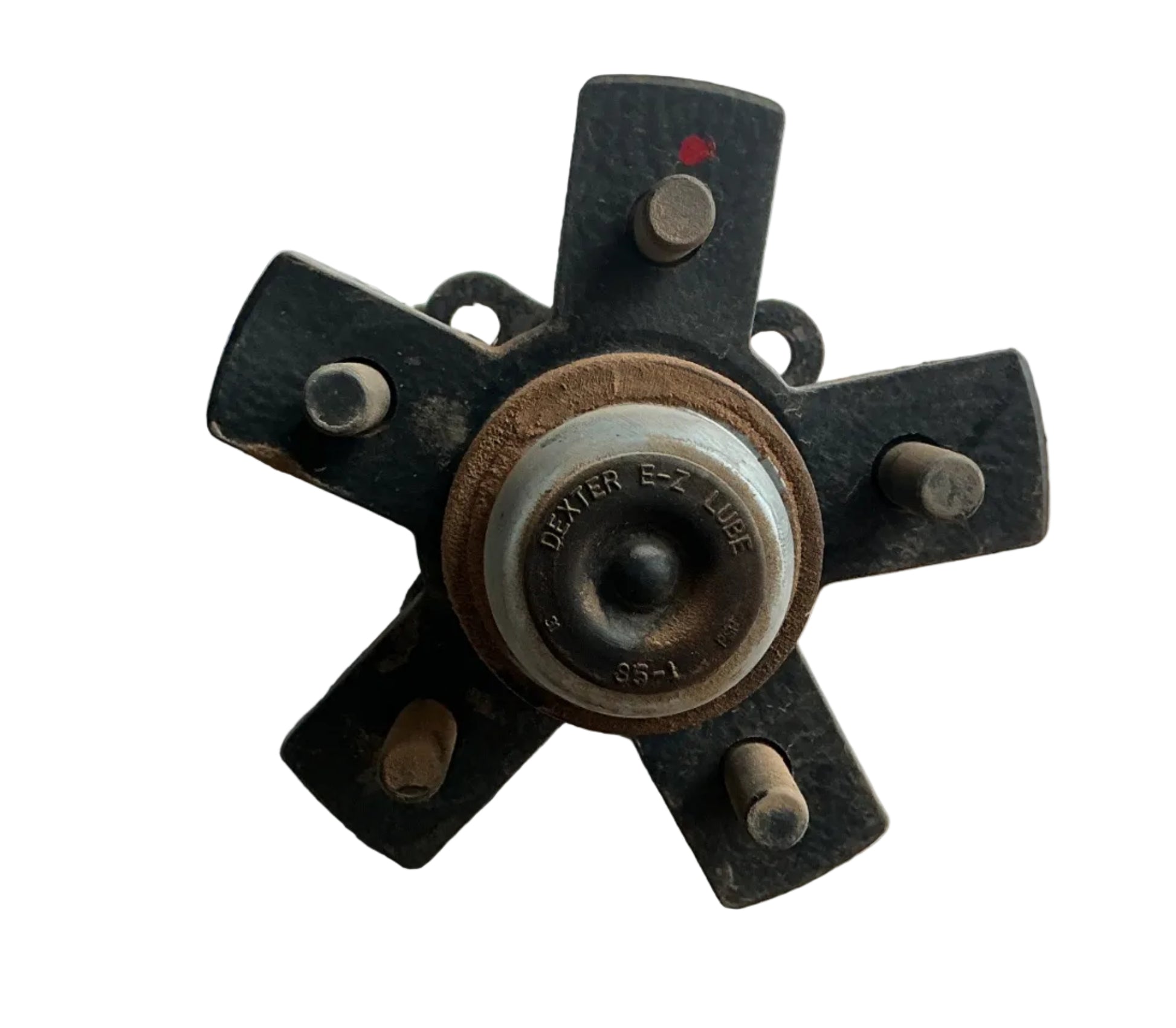

EZ-Lube Function

The EZ-Lube system uses a grease fitting (zerk) located at the end of the spindle. When grease is pumped through the fitting, it travels through internal passages to lubricate both the inner and outer wheel bearings. This:

• Reduces maintenance time.
• Helps prevent bearing failure.
• Allows routine greasing without removing the hub assembly.

Typical Applications

• Utility trailers
• Equipment trailers
• Cargo trailers
• Boat trailers (especially with galvanized hub options)
• Landscape trailers
