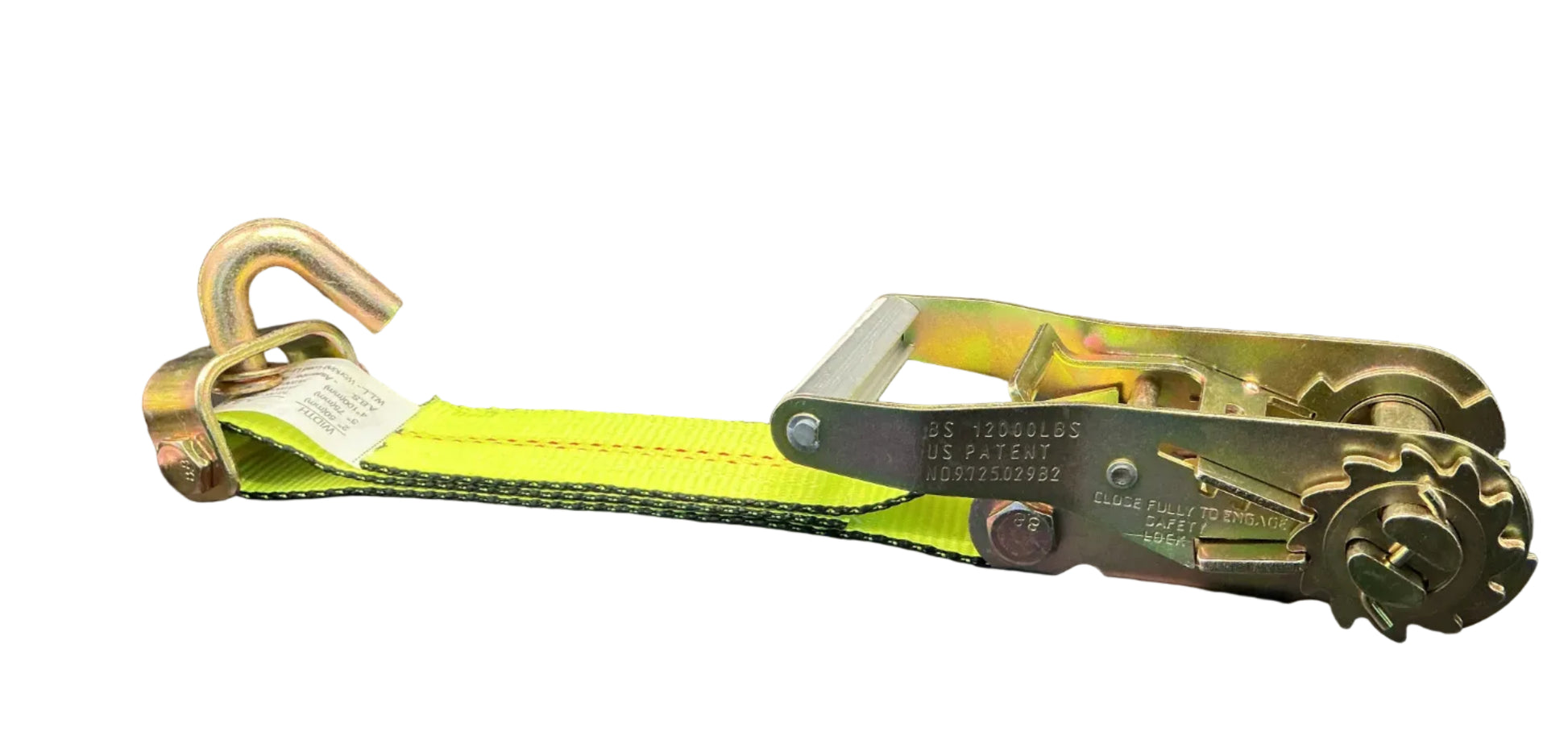

2" x 1' spin free ratchet w/SSJH Fixed end (High Viz)

A 2" x 1' spin-free ratchet with SSJH fixed end (High Viz) is a specialized cargo securement strap assembly designed for fast, controlled tightening and high visibility in low-light environments. Here’s how it functions and what each part means:

🔧 Core Components & Function

1. 2" Webbing (Width)

• The strap is 2 inches wide, which provides a strong balance between flexibility and load capacity.
• Typically made from high-strength polyester for durability and minimal stretch.

2. 1' Length (Short Fixed End)

• The 1-foot length usually refers to the fixed end (the short side attached to the ratchet).
• This section connects directly to an anchor point via the hook.

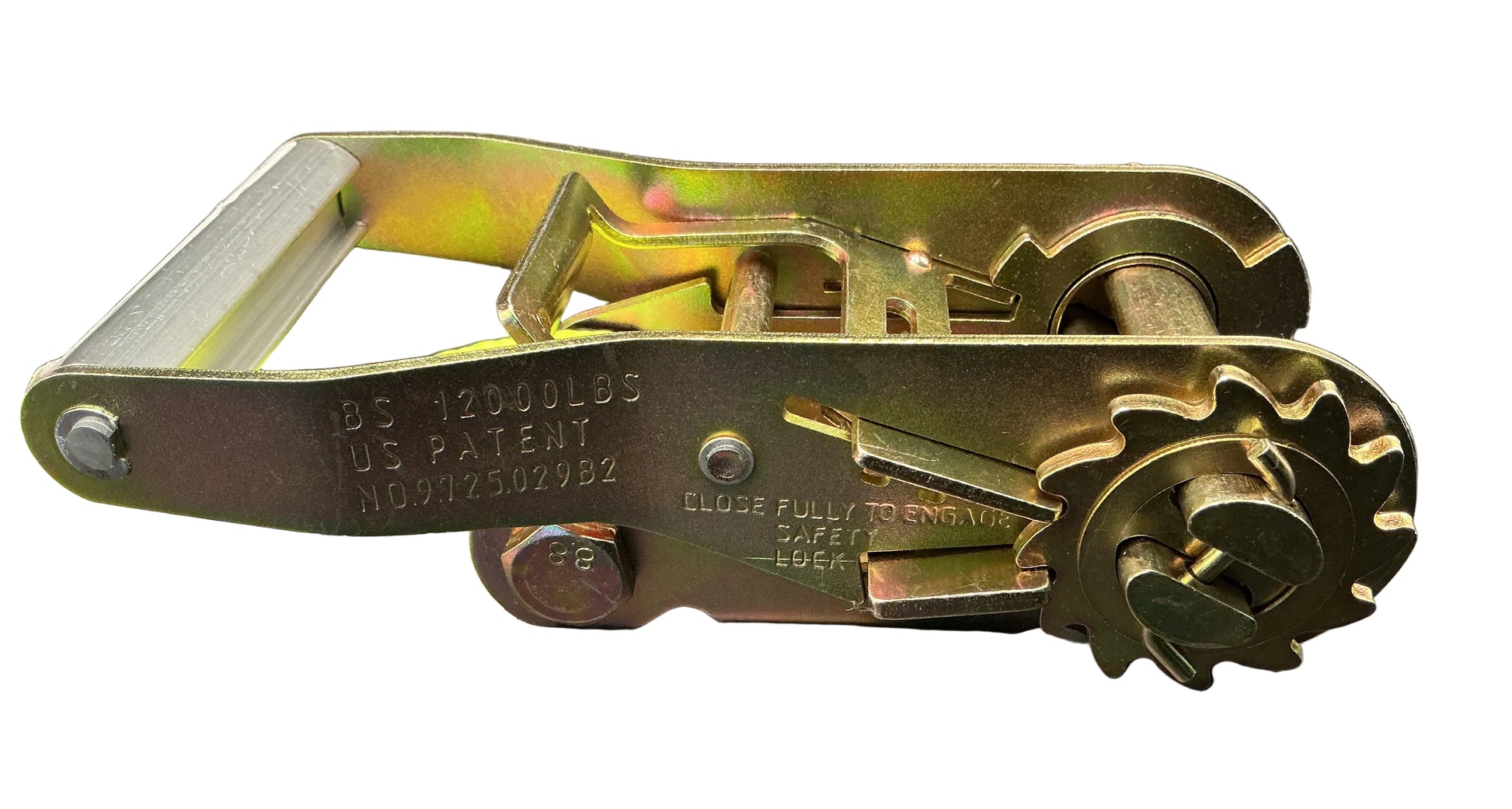

3. Spin-Free Ratchet Mechanism

• A spin-free ratchet prevents the handle from freely spinning when released.
• This improves user control and safety, especially during quick release or tightening.
• Allows smoother operation and reduces risk of hand injury.

Function:

• You feed the loose strap through the ratchet spindle.
• Pumping the handle tightens the strap incrementally.
• The internal gear locks tension in place until manually released.

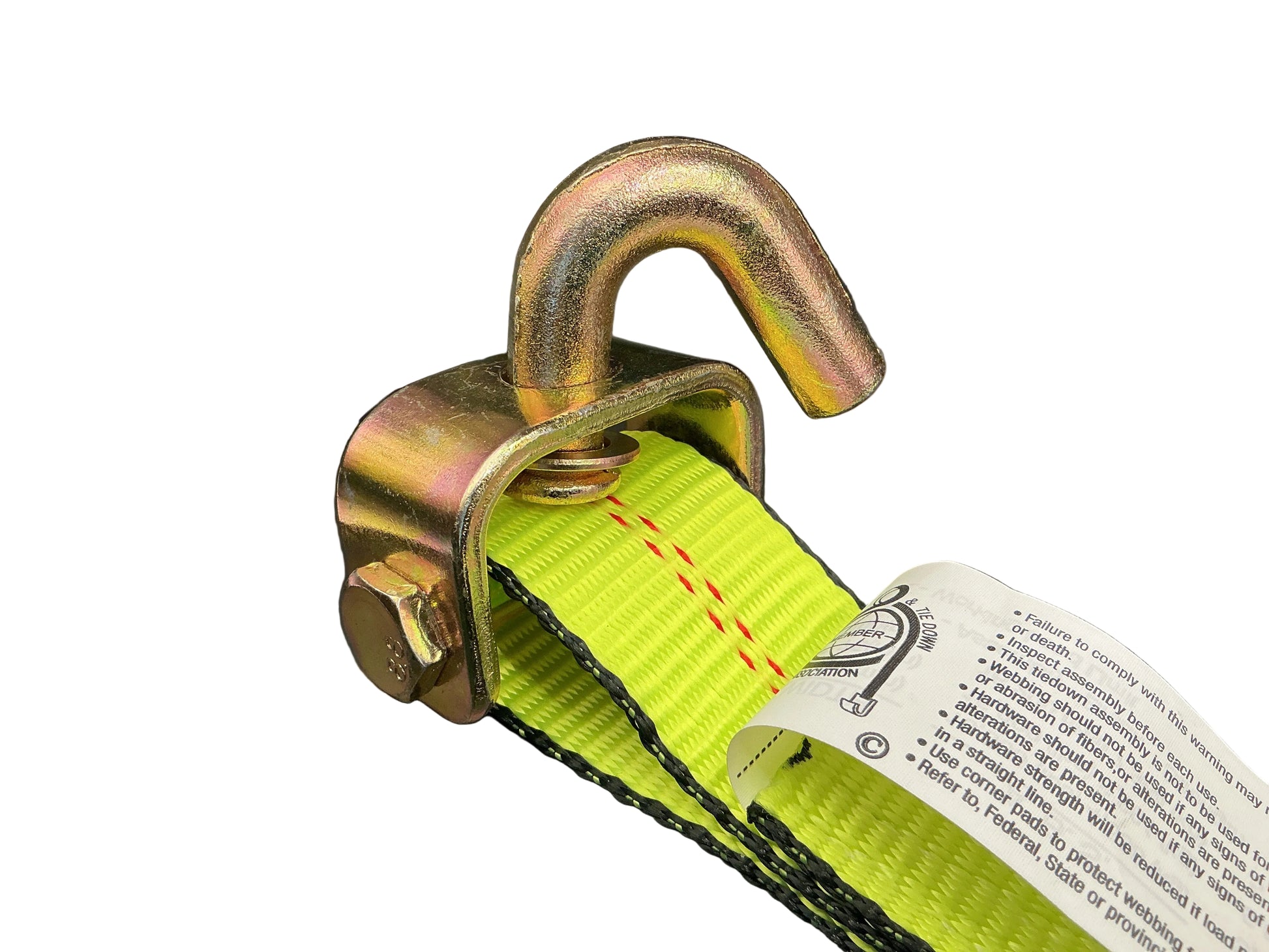

4. SSJH Fixed End (Stainless Steel J-Hook)

• SSJH = Stainless Steel J-Hook
• The fixed end is permanently attached to the ratchet and ends in a J-shaped hook.
• Stainless steel offers corrosion resistance, ideal for outdoor or humid environments.

Function:

• The J-hook attaches to anchor points like D-rings, rails, or trailer edges.
• Provides a secure, quick-connect attachment.

5. High Visibility (High Viz) Webbing

• Typically bright colors like neon yellow, orange, or lime green.
• Enhances visibility in low light, nighttime, or busy work zones.

Function:

• Helps operators quickly identify straps.
• Reduces tripping hazards and improves safety compliance.

⚙️ Overall Use Case

This type of strap is commonly used for:

• Securing cargo on flatbed trailers
• Trucking and logistics
• Construction equipment tie-downs
• Situations where quick handling + visibility + corrosion resistance are important
