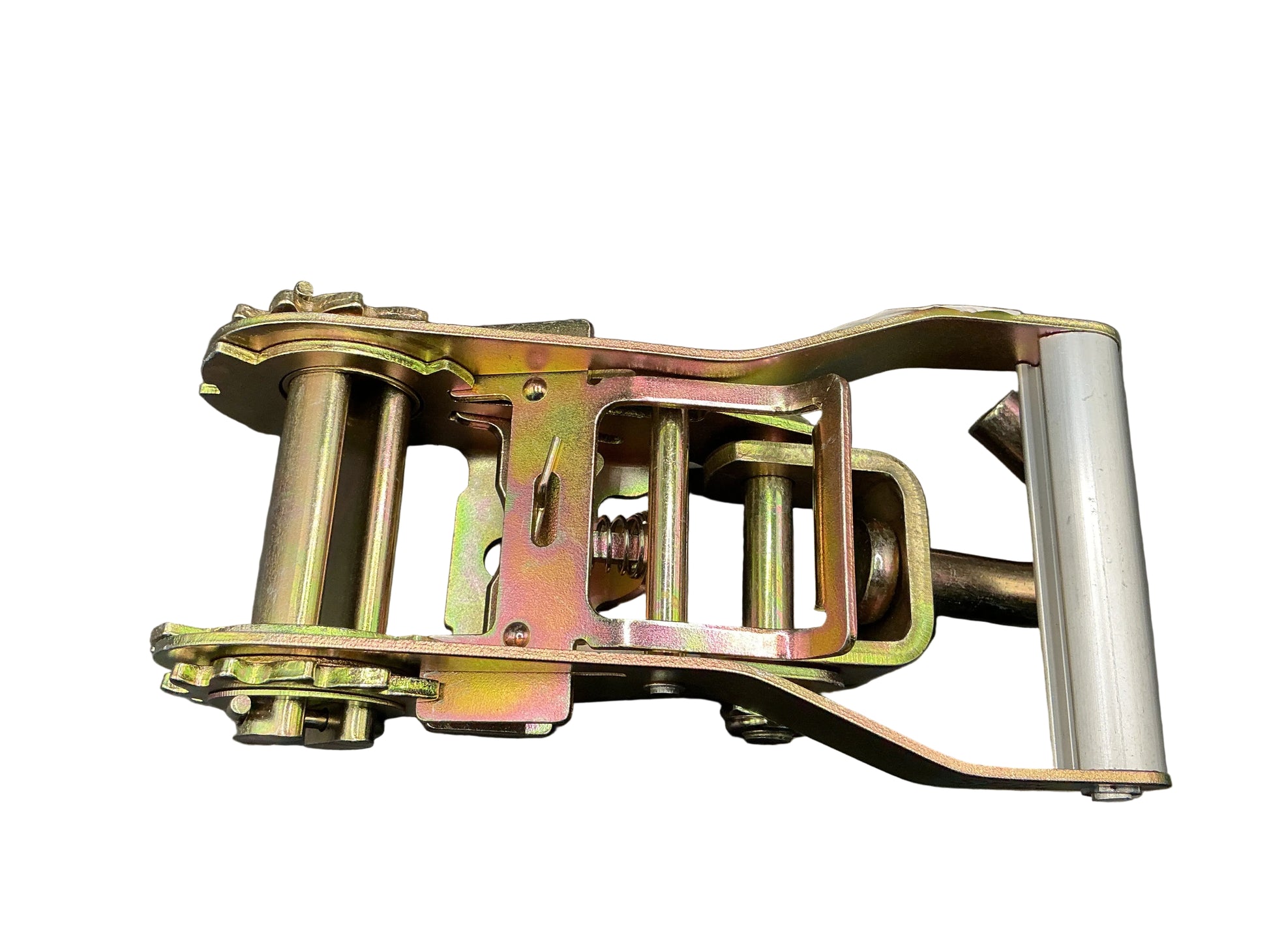

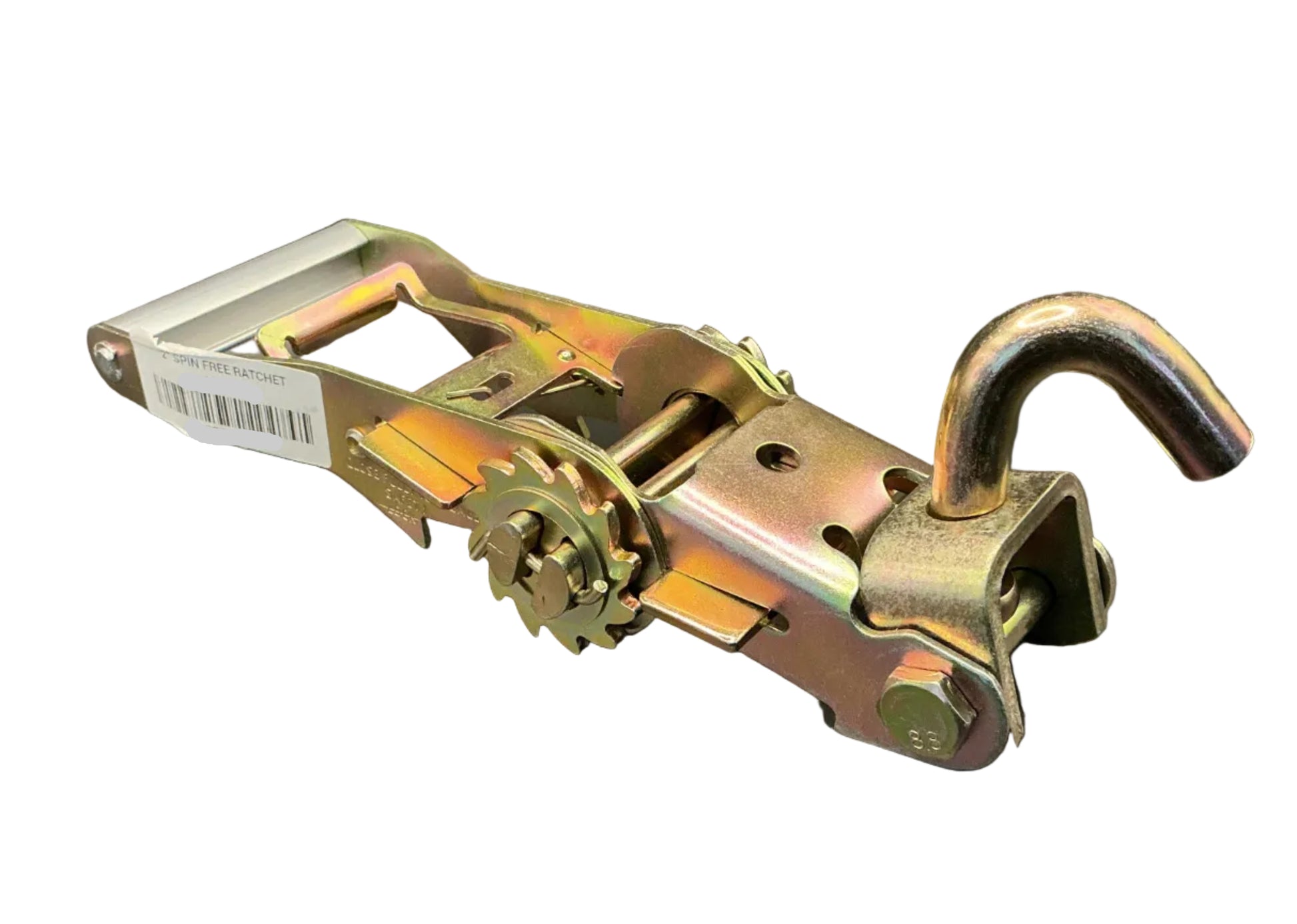

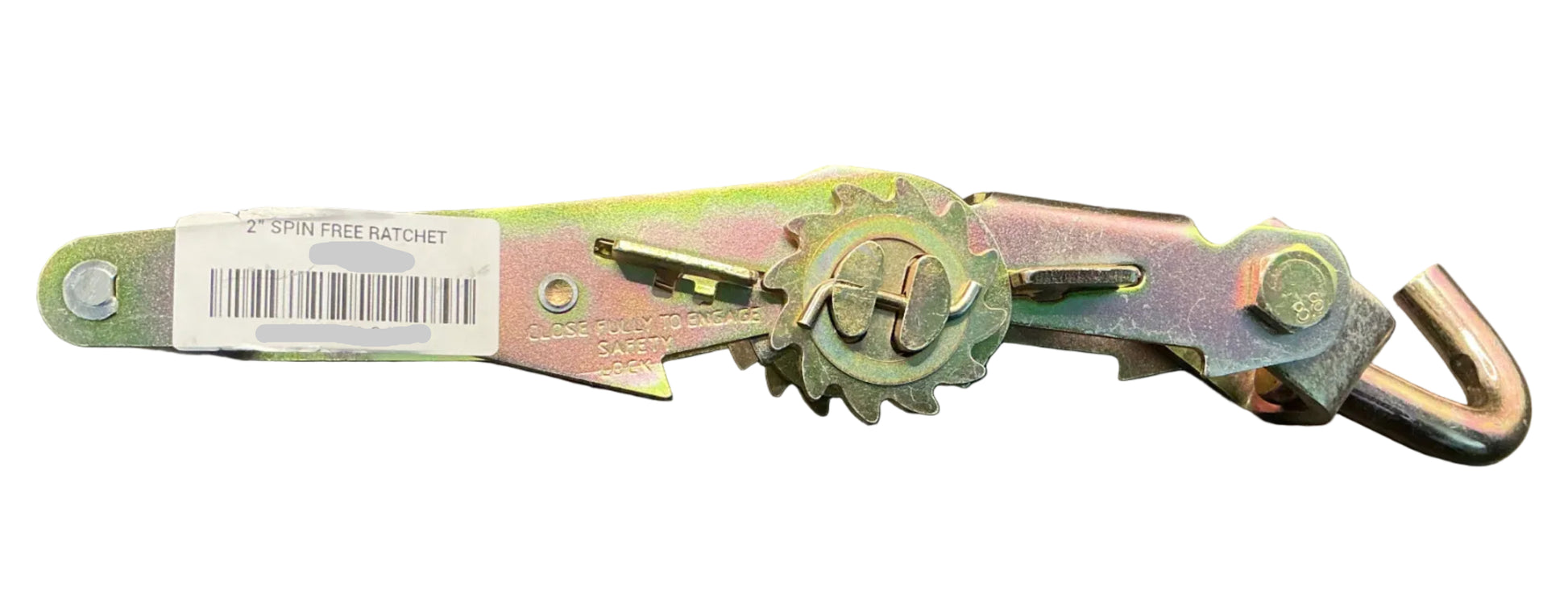

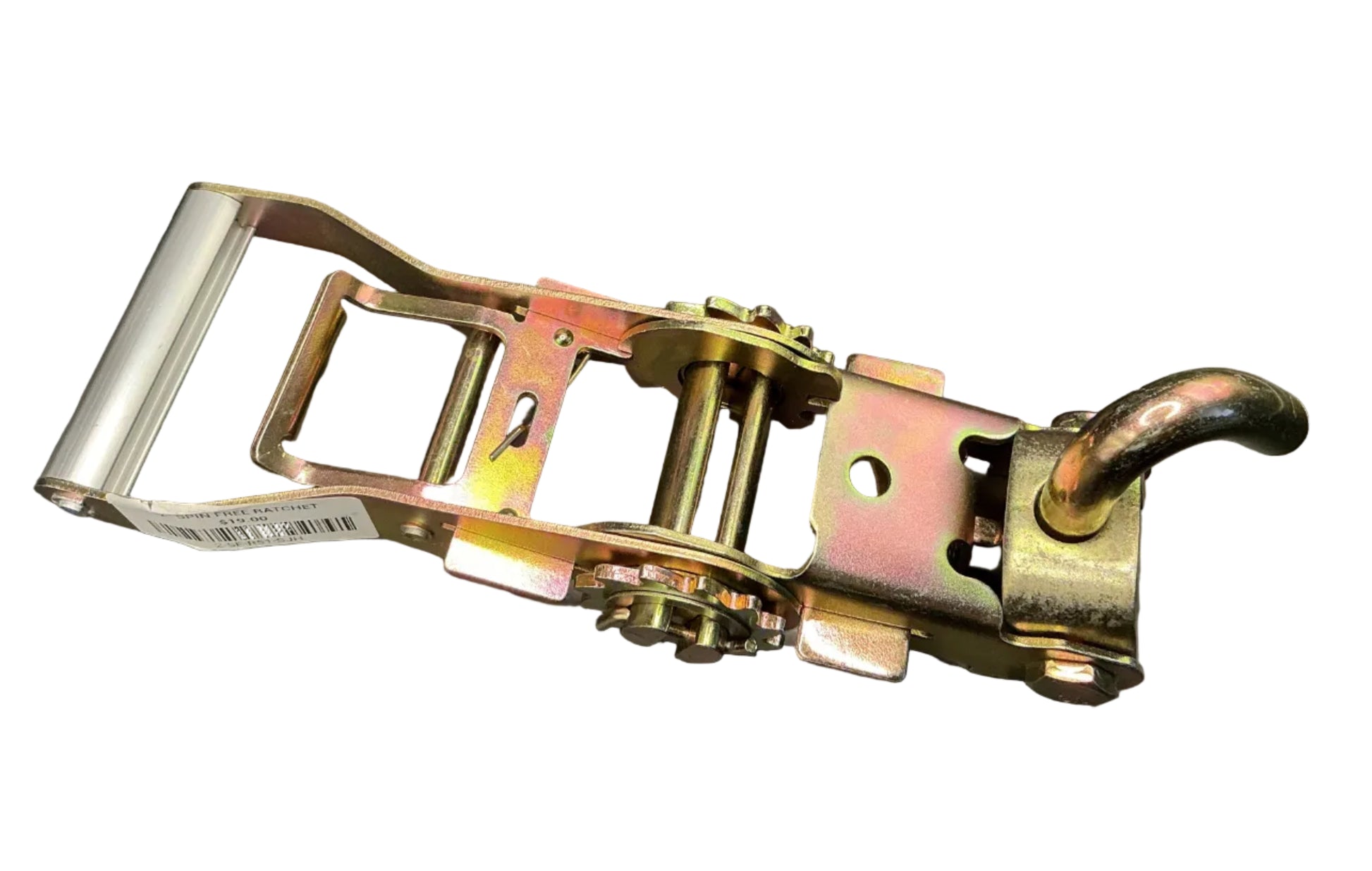

2" SPIN FREE RATCHET HANDLES WITH BOLT ON SWIVEL J HOOK

A 2" Spin Free Ratchet Handle with Bolt-On Swivel J Hook is a heavy-duty cargo securement device commonly used in transportation, towing, and auto hauling. Its function combines tensioning (ratchet) and anchoring (J hook) to safely secure loads.

🔧 Function Description

1. Ratcheting Mechanism (Spin Free Handle)

• The “spin free” ratchet handle allows the user to quickly take up slack in the strap by spinning the mandrel before engaging the ratchet.
• Once engaged, the ratchet provides controlled tightening, increasing strap tension with minimal effort.
• This design improves speed and efficiency compared to standard ratchets, especially in repetitive loading tasks.

👉 Main function: Applies and maintains tension on a 2-inch tie-down strap to secure cargo.

2. Bolt-On Swivel J Hook

• The J hook is a curved steel hook that attaches to anchor points such as trailer rails or vehicle frames.
• The bolt-on design allows the hook to be replaced or repositioned on the ratchet.
• The swivel feature lets the hook rotate, making it easier to connect at different angles and improving alignment during tie-down.

👉 Main function: Provides a flexible and secure attachment point for the strap.

3. Load Securement Capability

• Typically rated around 3,300 lbs working load limit (WLL) and up to 10,000–12,000 lbs breaking strength, depending on the model
• • Designed for heavy-duty applications such as:
    • Vehicle transport (car haulers)
    • Flatbed trucking
    • Equipment hauling

  👉 Main function: Ensures cargo remains stable and immobile during transport.

4. Double-Locking & Safety

• Many models include a double-locking mechanism to prevent accidental release.
• The handle locks in place when closed, maintaining tension even under vibration or movement.

Main function: Enhances safety and prevents load shifting.

⚙️ Overall Function Summary

A 2" Spin Free Ratchet Handle with Bolt-On Swivel J Hook works by:

1. Attaching the J hook to an anchor point
2. Feeding the strap through the ratchet
3. Using the spin-free and ratcheting action to tighten
4. Locking the system to hold the load securely
