🚗 2006 Honda Ridgeline Brake Control Function

The 2006 Ridgeline uses a conventional hydraulic braking system enhanced with electronic aids:

🔧 Core Components & Function

• Brake Pedal → Brake Booster → Master Cylinder

  • Pressing the pedal multiplies force via a vacuum brake booster

  • The master cylinder converts this force into hydraulic pressure

• Hydraulic Lines & Disc Brakes

  • Pressure is sent to calipers at each wheel

  • Calipers squeeze brake pads against rotors to slow the vehicle

⚡ Electronic Control Systems

• ABS (Anti-lock Braking System)

  • Prevents wheel lockup during hard braking

  • Uses wheel speed sensors and a control module to pulse brake pressure

• EBD (Electronic Brake Distribution)

  • Adjusts braking force between front and rear wheels based on load

• VSA (Vehicle Stability Assist)

  • Can apply individual brakes to maintain control during skids

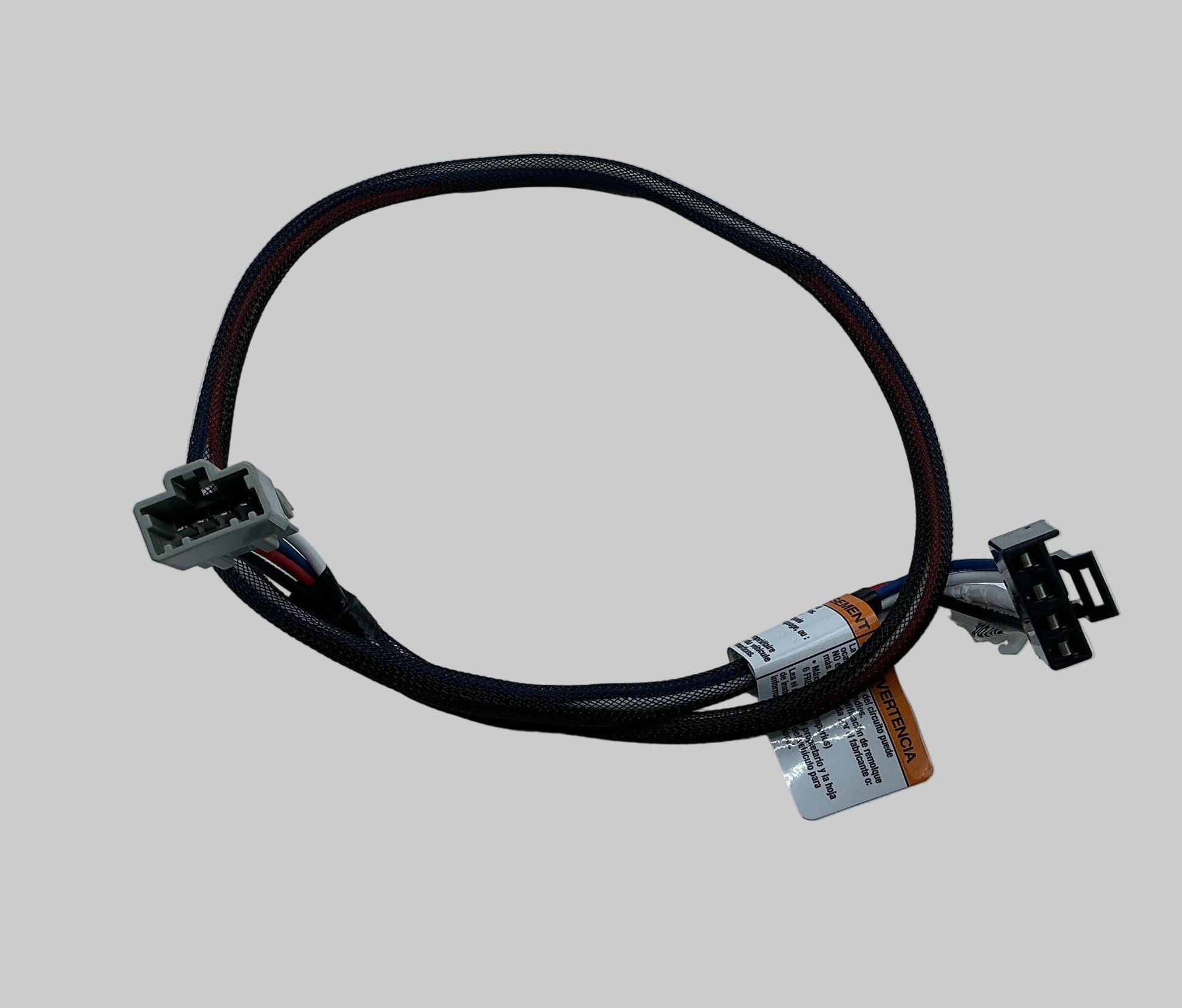

Measurements

2Ft 7" x  1" x  1"
