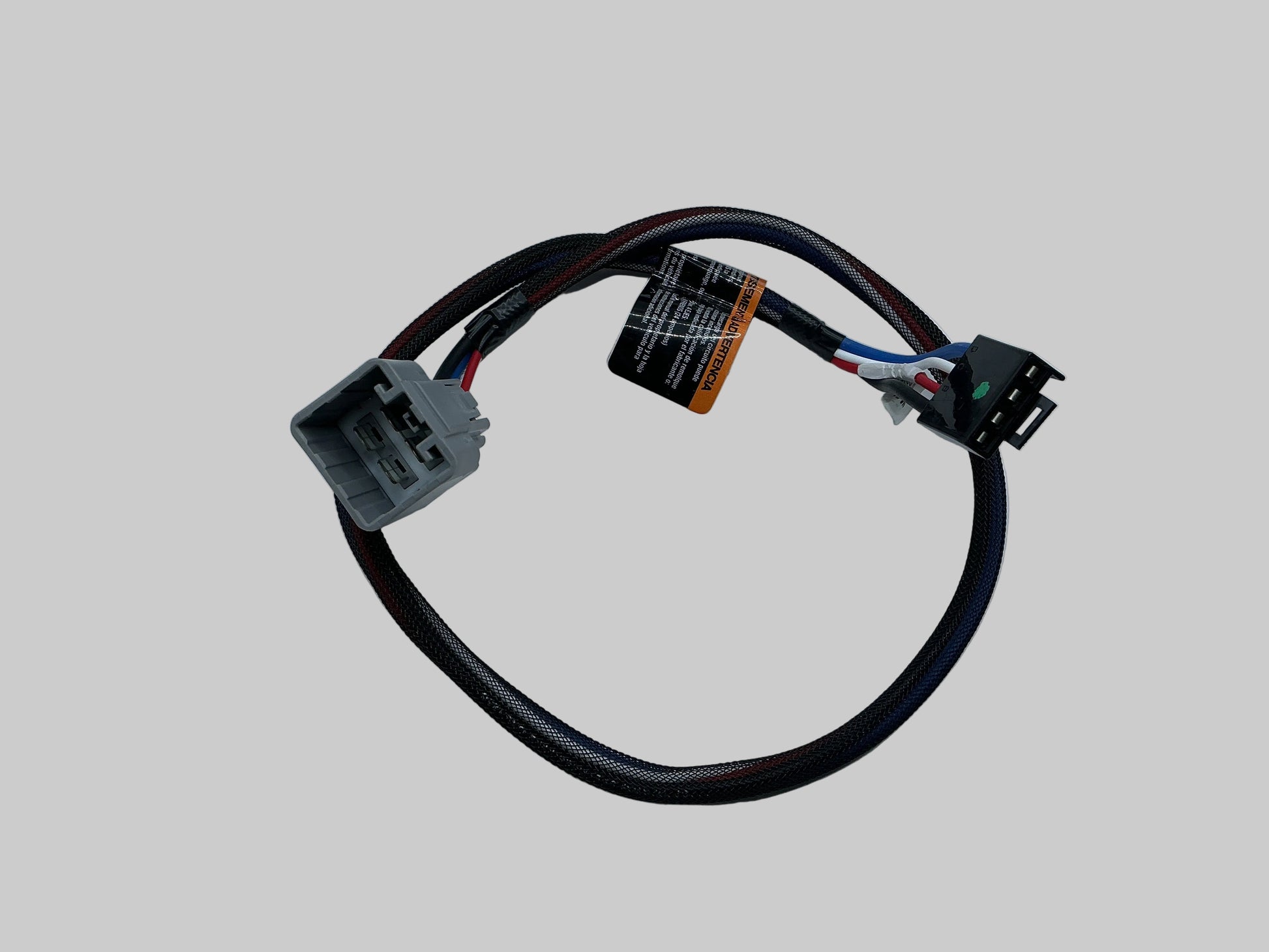

05-07 FORD HD 2 PLUG BRAKE CONTROL ADAPTER

An 05–07 Ford HD 2-plug brake control adapter (like the Tekonsha / Curt harnesses) is basically a plug-and-play wiring harness that connects an aftermarket trailer brake controller to your truck’s factory wiring.

🔧 What it does (main function)

Its job is to link your brake controller to the truck’s electrical system without cutting or splicing wires.

• One end plugs into the factory OEM connector under the dash (Ford pre-wired it from the factory).

• The other end plugs directly into the aftermarket brake controller.

• This allows the controller to send braking power to the trailer’s electric brakes.

⚙️ Why it’s called “2-plug”

Because the harness has two connectors:

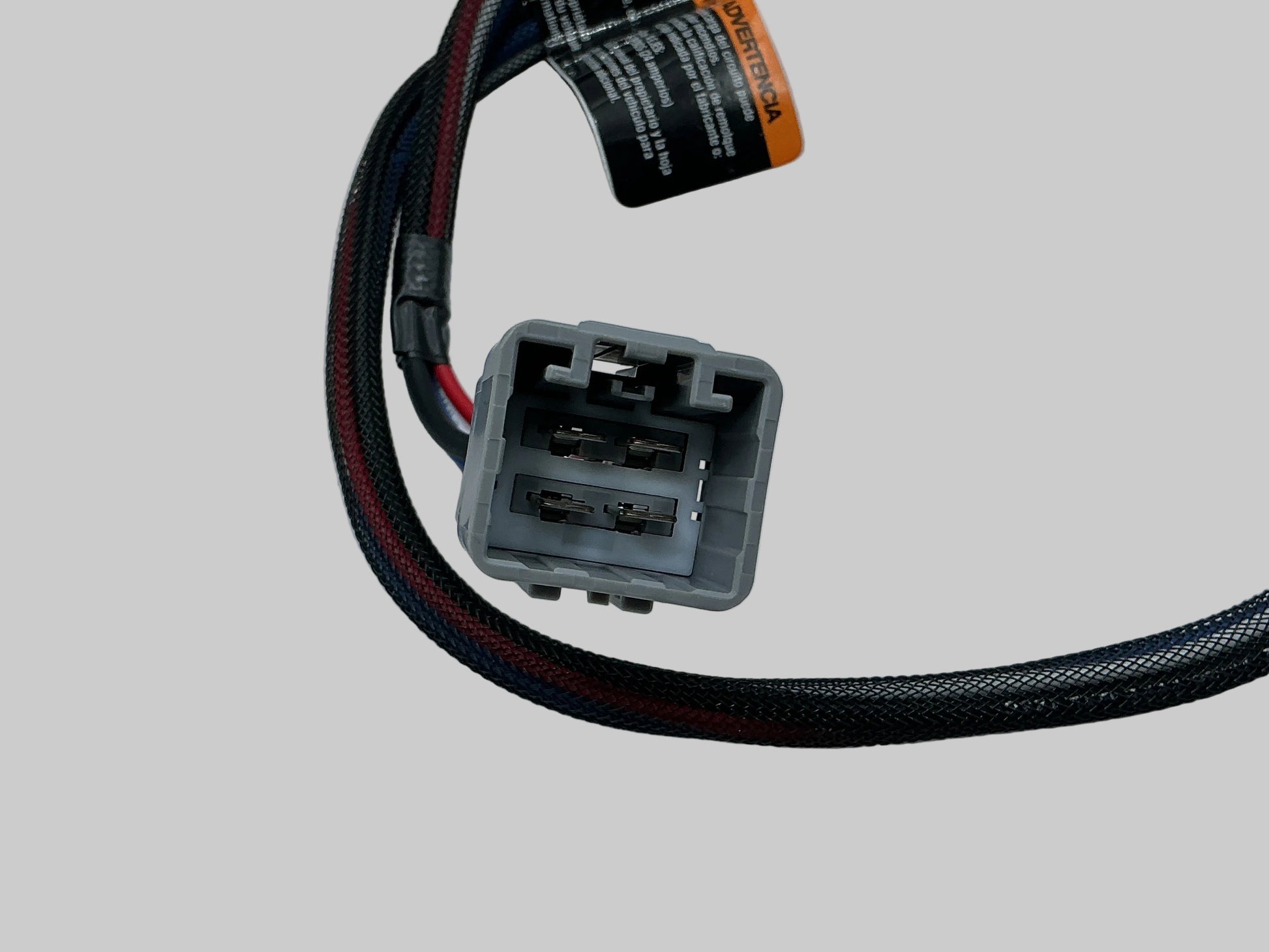

1. Vehicle-side plug → snaps into the Ford factory port

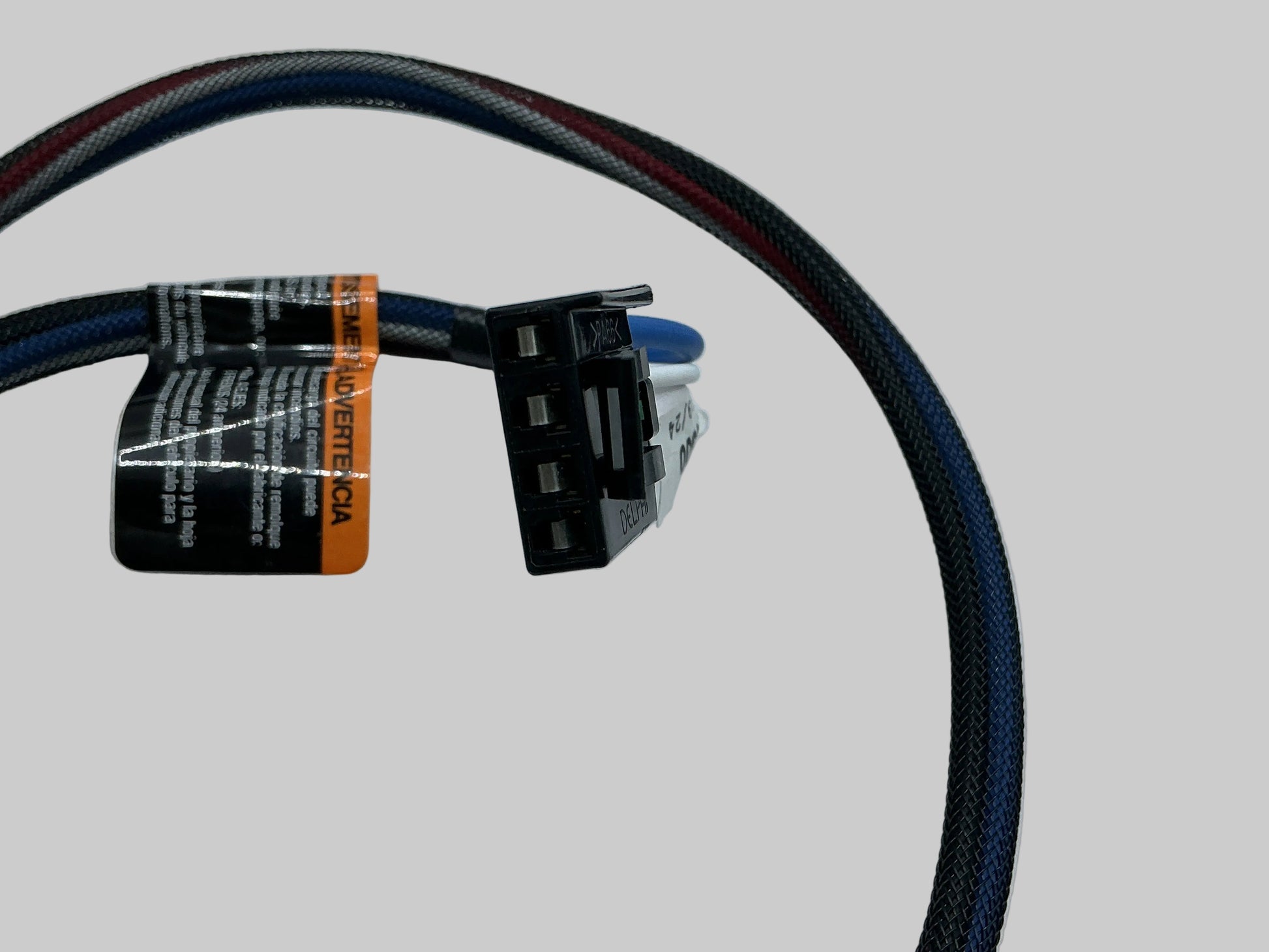

2. Controller-side plug → connects to the brake controller unit

🚚 What it enables

Once installed, the system lets your brake controller:

• Send a variable electrical signal to trailer brakes

• Match trailer braking force to how hard you press the truck’s brake pedal

• Improve stopping control and safety when towing

🧰 Key benefits

• No hardwiring required (plug-and-play)

• Quick install (often under 10 minutes)

• Easily removable (you can unplug the controller anytime)

• Uses factory wiring for a clean, OEM-style setup

📍 Where it connects in a 2005–2007 Ford Super Duty

• Usually located under the dash near the steering column

• Ford trucks from those years often came pre-wired for a brake controller, even if one wasn’t installed

Measurements

2 Ft 7"  x  1"  x  1"
