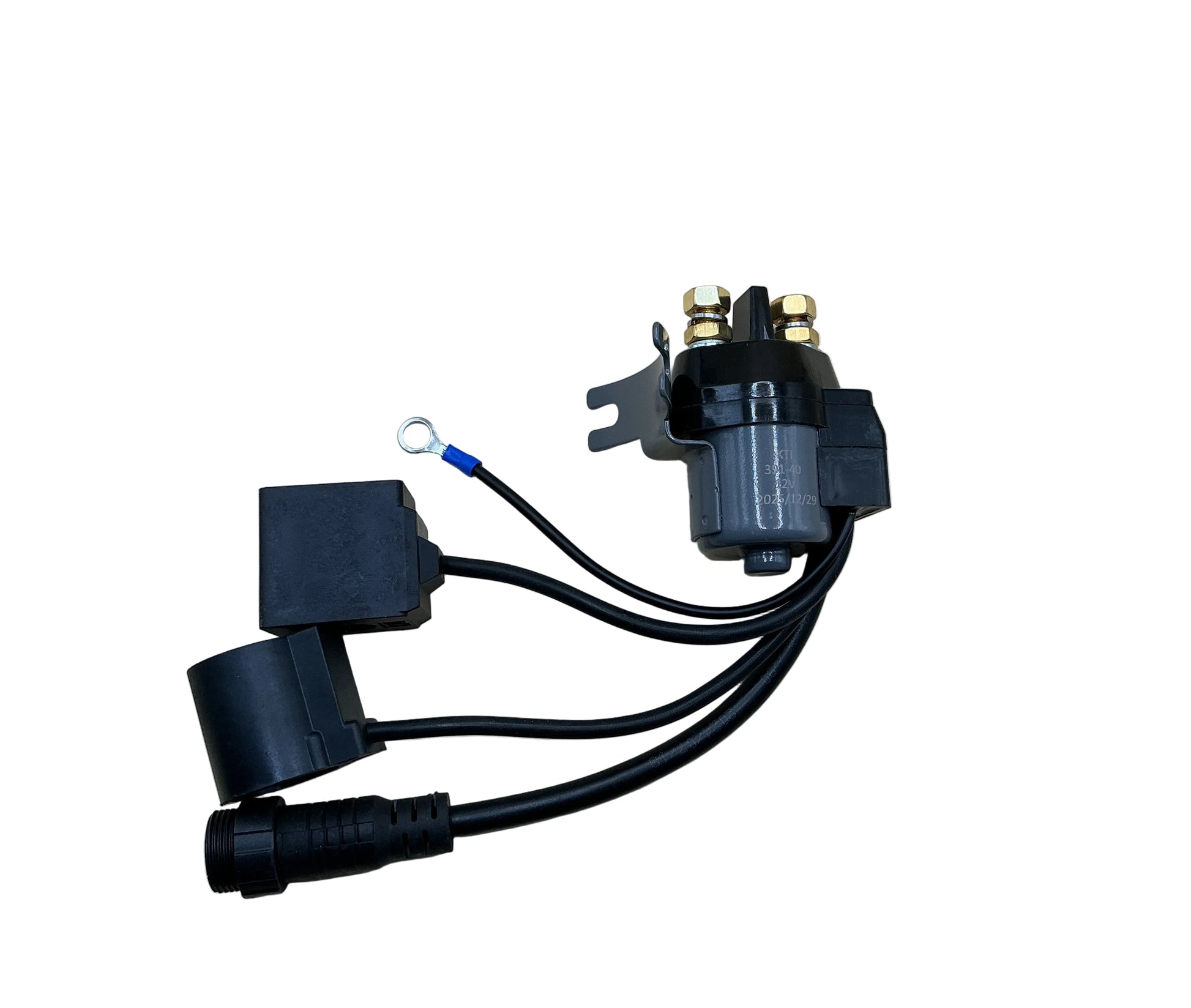

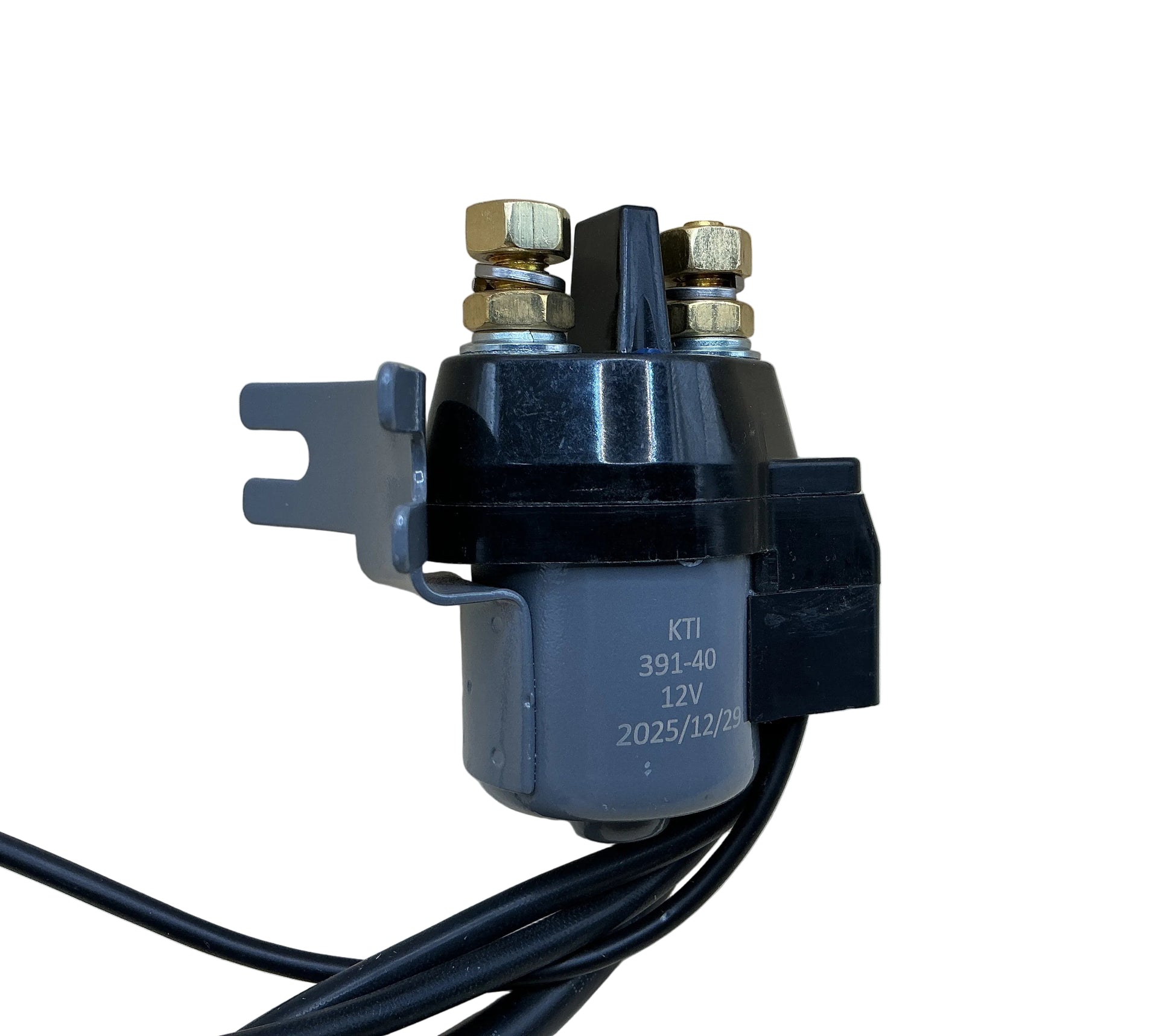

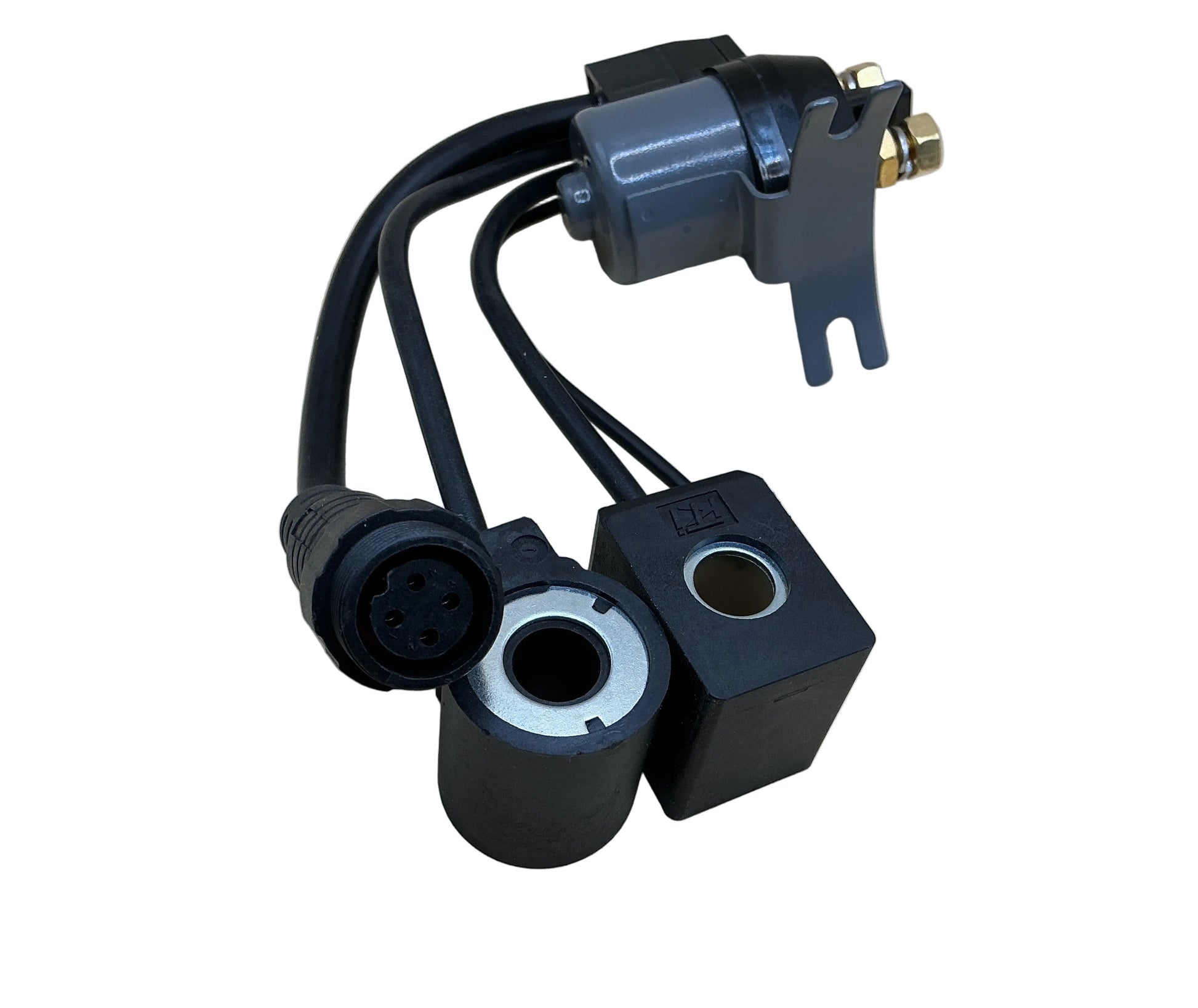

12V DC Heavy Duty Start Solenoid Switch Molded

🔧 Key Features & Functions

1. Voltage Rating

• Operates on 12V DC systems
• Suitable for cars, trucks, boats, generators, tractors, and heavy machinery

2. Heavy-Duty Construction

• Designed to handle high current loads (often 100–300+ amps depending on model)
• Built for frequent starting cycles
• Resistant to vibration and harsh environments

3. Molded Housing

• Encased in a durable molded plastic or composite casing
• Protects internal components from:
  • Moisture
  • Dust
  • Oil
  • Mechanical damage
• Provides electrical insulation and long service life

4. Electromagnetic Operation

• Uses an internal electromagnetic coil
• When 12V is applied to the control terminals:
  • The coil energizes
  • A plunger is pulled in
  • High-current contacts close
  • Power flows to the starter motor
• When power is removed:
  • Spring returns plunger
  • Contacts open
  • Circuit disconnects

⚙️ Main Functions

• Controls high-current circuits with a low-current switch
• Acts as a remote power switch for starter motors
• Prevents high current from passing through ignition switch
• Ensures reliable engine starting
• Reduces wiring load and improves safety

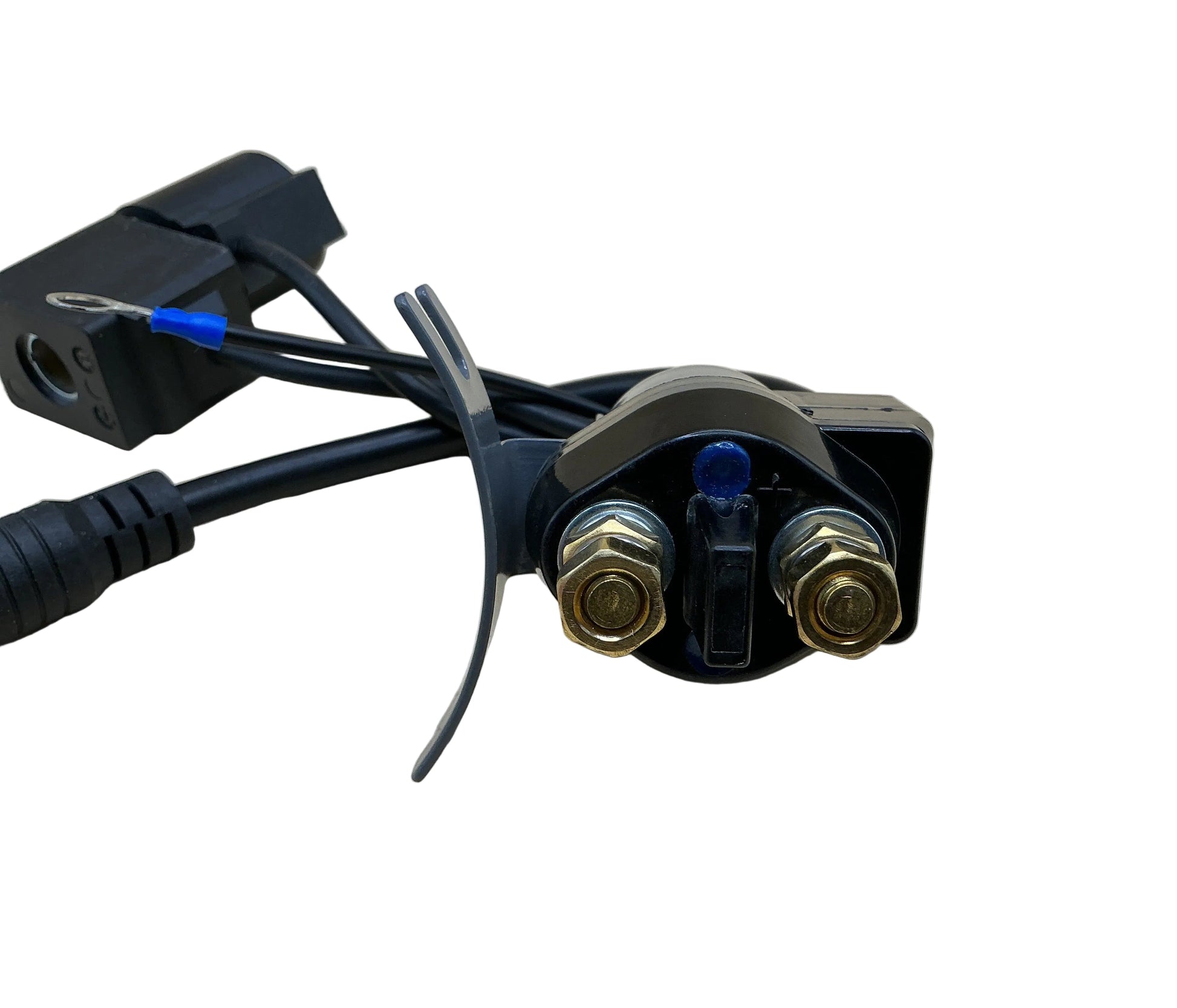

🔌 Typical Terminal Configuration

• Two large terminals – Battery input & starter motor output
• One or two small terminals – Ignition switch control circuit
• Some models include ground terminal or mounting-ground configuration

🚜 Common Applications**

• Automotive starter systems
• Marine engine starting systems
• ATVs & UTVs
• Lawn tractors & heavy equipment
• Winches and auxiliary power systems
